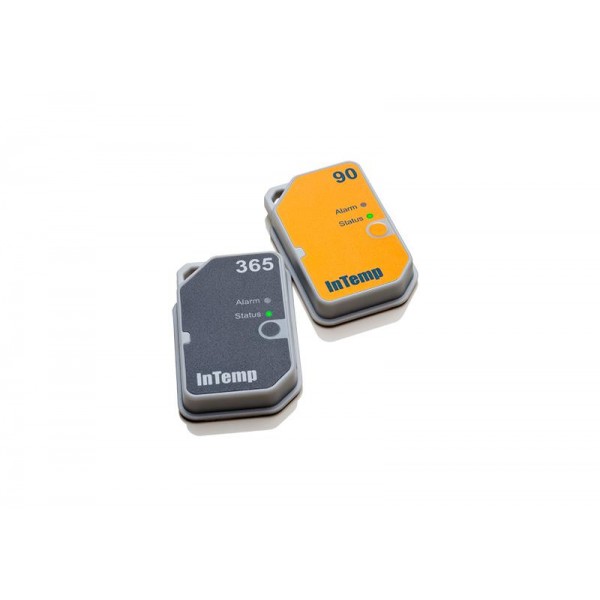

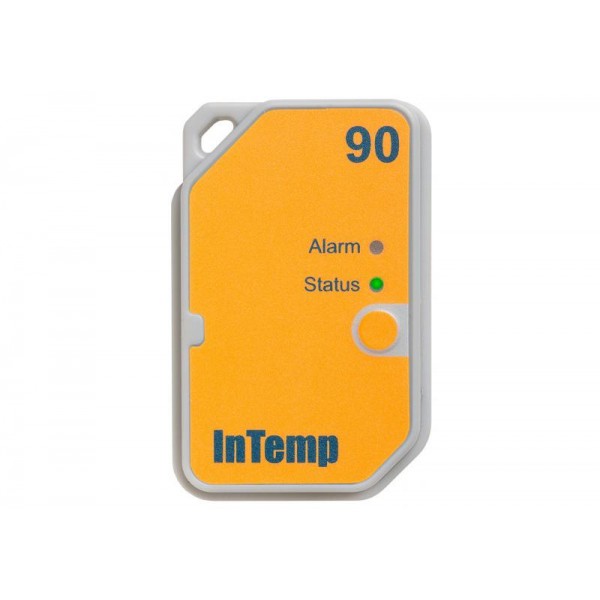

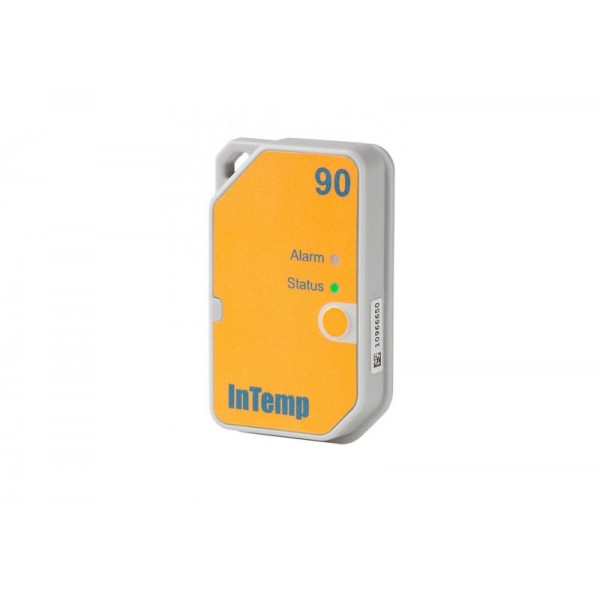

InTemp Bluetooth temperature recorder 90 days single use CX502

THE'data recorder Bluetooth InTemp CX502 is a single use essential for the monitoring and l'registration of the temperature on consignments cold chain, in particular in the field of clinical logistics shipments of pharmaceutical products, the delivery of foodstuffs temperature sensitive, etc.

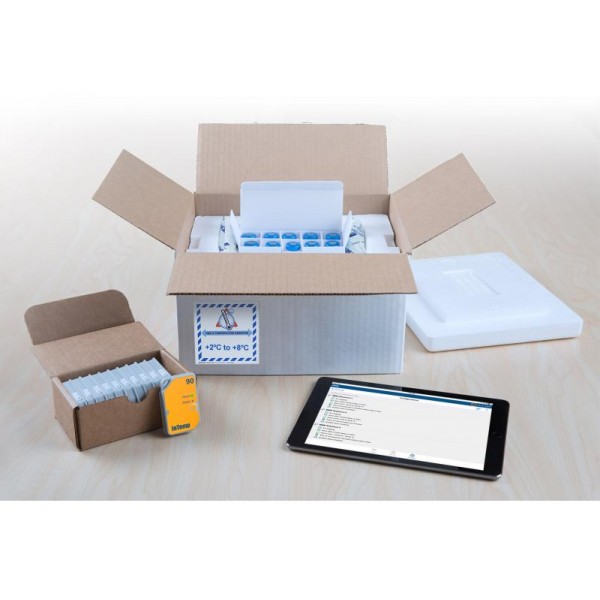

The main purpose of this recorder is to monitoring temperature within containers or packaging used to transport temperature sensitive products, such as medicine vaccines food products, etc.
It ensures that the temperature remains in the acceptable ranges to preserve the quality and the'product efficiency, it records the temperature data until 90 days.
The recorder can be configured easy to use'inTemp application on a mobile device.
The application offers predefined configurations for different shipping situations, but also allows to create custom configurations according to the specific needs of the user.
To ensure proactive monitoring, the recorder has a built-in alarm which warns the user in case of temperature excursions outside acceptable ranges.
This allows immediate corrective action to be taken to avoid damage products transported.
Once the shipment is complete, the data recorded by the device may be quickly downloaded on a mobile device (telephone or tablet) via the InTemp app.
These data can then be transferred to an account InTempConnect in the cloud, where they can be analysed, archived and exported as required.

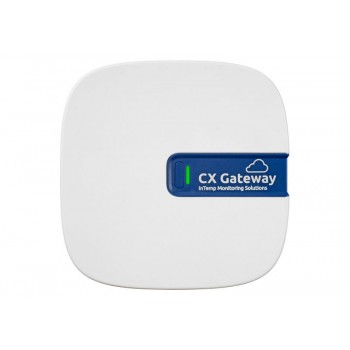

For one remote management recorders, it is possible to add the InTemp gateway CX5000 optional.
This bridge allows to receive remote notifications in case of temperature excursions and automatically download data from the recorders within range of the device.
This eliminates the need to open sealed containers to retrieve data.
The recorder uses a encryption technology to ensure security of recorded data, which is essential to ensure'data integrity in regulated environments.
It is important to note that this recorder is designed to be conforming to standard 21 CFR Part 11, which is an essential regulation in the'pharmaceutical industry and other areas requiring traceability and one strict monitoring.
One 3 point calibration certificate, valid one year from date of purchase, ensures that the data are reliable when making important decisions about the disposal of the product.

Technical specifications:

- Integrating into mobile and cloud platforms for a 21 CFR Part 11 solution
- Allows rapid and remote data transfer; ideal for clinical logistics
- Eliminates the need to open sealed containers to retrieve data
- In real time alerts and automatic data downloads with CX device gateway option
- Shorten processing times for recorders; no PC or cable required
- Guarantees data security via encrypted technology
- Meets GDP requirements for traceable NIST calibration
- This data recorder works in a cold chain environment.
- The CX502 data recorder supports the following measurements: Temperature

Temperature sensor features:

- Range: -30° to 70°C (-22° to 158°F)
- Accuracy:
±1.0°C from -30° to -5°C (±1.8°F from -22° to 23°F)
±0.5°C from -5° to 50°C (±0.9°F from 23° to 122°F)
±1.0°C from 50° to 70°C (±1.8°F from 122° to 158°F)
- Resolution: 0.04°C (0.072°F)

Recorder Features:

- Operating range of the recorder: -30° to 70°C (-22° to 158°F)
- NIST calibration in three points, probe only at -10 C, 25 C and 55 C
6 Radio power: 1 mW (0 dBm)
- Transmission range: approximately 30.5 m (100 ft) of direct visibility
- Wireless data standard: Bluetooth low consumption (Bluetooth Smart)
- Single use
- Duration of use: 90 days
- Shelf life: up to 1 year
- Registration rate: 1 second at 6 p.m
- Battery: Lithium CR2450 3V, not replaceable.
The battery life is 1 year, with a typical recording interval of 1 minute.
Faster recording intervals, keeping connected to the InTemp application, excessive downloads and pagination can have an impact on battery life.
The battery lasts for the specified duration when the recorder is used for the one-year shelf life.
- Memory: 14,000 measurements
- Full memory download time: about 30 seconds; can take longer as the device is away from the recorder
- Dimensions: 6,9 x 4,5 x 1,1 cm (2,71 x 1,76 x 0,42 inches)
- Weight: 25.5g (0.90 ounce)
- Environmental assessment: IP67
