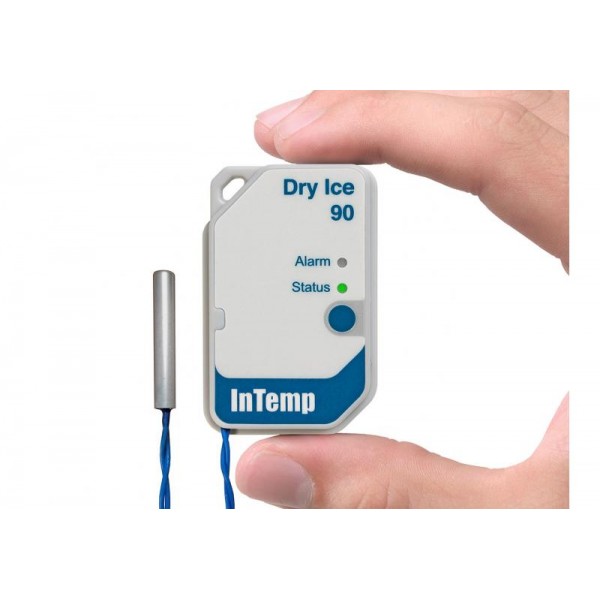

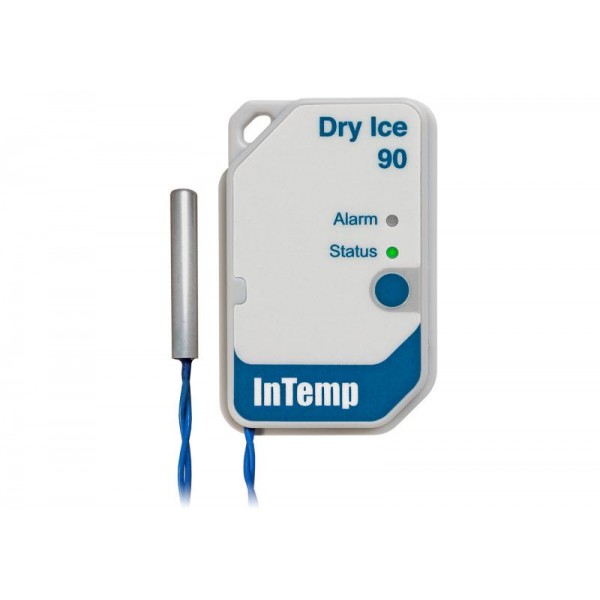

InTemp Dry Ice Single Use Temperature Recorder CX602

The CX602, temperature recorder InTemp is a device single use designed for record and monitor the temperature in sensitive environments with carbon ice, in particular when transport and storage de pharmaceutical products and other sensitive goods.
The CX602 can record temperature data for a period of up to 90 days, making it an ideal choice for long-term monitoring.
The integrated probe of'1.5 m of the'data recorder can measure temperatures as low as -95°C (-139°F), which makes it suitable for monitoring frozen products or ultra cold.

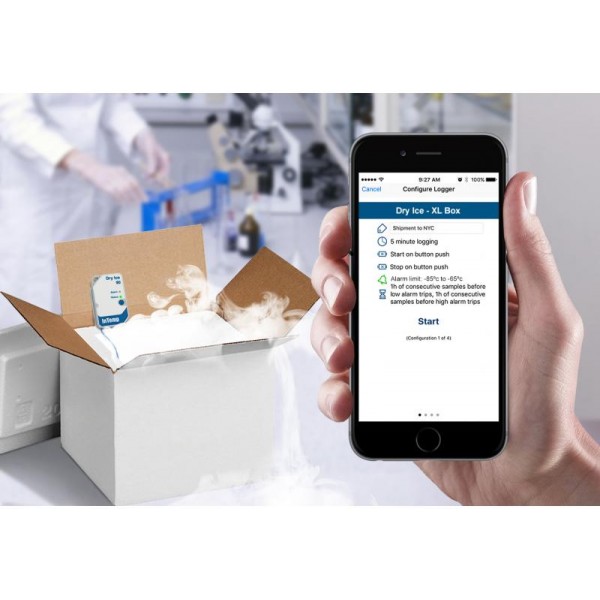

You can configure easily the CX602 using the InTemp app on your mobile device, it offers predefined configurations as well as the ability to customize the configuration according to your specific needs.
The recorder has a built-in alarm who warns you if changes this allows you to take immediate steps to protect your products.
Due to its compatibility Bluetooth Low Energy (BLE) reports recorder can be easily downloaded on your telephone or tablet via the InTemp app, you can also transfer this data to an account InTempConnect for a analysis and export them according to your needs.
The CX602 complies with the iATA battery, which means that it meets the regulations of the International Air Transport Association (IATA) for the lithium battery transport.
In addition, it is delivered with one nIST calibration certificate en 3 points valid one year from the date of purchase, which guarantees the accuracy of the measures.
The recorder is equipped with a protective sheath to avoid accidental cuts of the probe cable, it also includes a clip for one secure mounting.
Saved data is secured via a encrypted technology to protect'integrity of the information collected.
The CX602 is designed to work in a cold chain, making it a valuable tool for monitoring temperatures in the food supply chain and pharmaceuticals.
Its design compact and light in fact a practical choice for shipping pharmaceutical products, because it is not cumbersome and does not add significant weight to shipments.

Technical specifications:

- Conforms to IATA battery
- NIST calibration certificate in 3 points, valid one year from the date of purchase
- Cut-off protection liner
- Integrating into mobile and cloud platforms for a 21 CFR Part 11 solution
- Compact and lightweight - ideal for shipping pharmaceutical products
- No need to open containers to access data
- Guarantees data security via encrypted technology
- This data recorder works in a cold chain environment.
- The CX602 data recorder supports the following measurements: Temperature

Temperature sensor features:

- Sensor range: -95° to 50°C (-139° to 122°F)
- Accuracy:
±1.5°C from -95° to -40°C (±2.7°F from -139° to -40°F)
±1.0°C from -40° to -10°C (±1.8°F from -40° to 14°F)
±0.5°C from -10° to 50°C (±0.9°F from -14° to 122°F)
- Resolution: 0.013°C at 25°C (0.023°F to 77°F)
NIST calibration: in three points, probe only at -70 C, -10 C and 5 C
- Cable length: 1.5 m (4.92 ft)
- Dimensions of the probe: food-grade stainless steel probe with blunt tip, 31.75 mm (1.25 inches) in length, 4.78 mm (0.188 inches) in diameter

Recorder Features:

- Operating range of the recorder: -30° to 50°C (-22° to 122°F)
- Radio power: 1 mW (0 dBm)
- Transmission range: approximately 30.5 m (100 ft) of direct visibility
- Wireless Data Standard: Low Power Bluetooth (BLE)
- Single use
- Duration of use: 90 days
- Shelf life: up to 1 year
- Registration rate: 1 second at 6 p.m
- Battery: Lithium CR2450 3V, not replaceable.
The battery life is 1 year, with a typical recording interval of 1 minute.
Faster recording intervals, keeping connected to the InTemp application, excessive downloads and pagination can have an impact on battery life.
The battery lasts for the specified duration when the recorder is used for the one-year shelf life.
- Memory: 16,000 measurements
- Full memory download time: about 30 seconds
May take longer as the device is away from the recorder
- Dimensions: 6,9 x 4,5 x 1,1 cm (2,71 x 1,76 x 0,42 inches)
- Weight: 25.5 g (0.90 ounces)
- Environmental assessment: IP65
