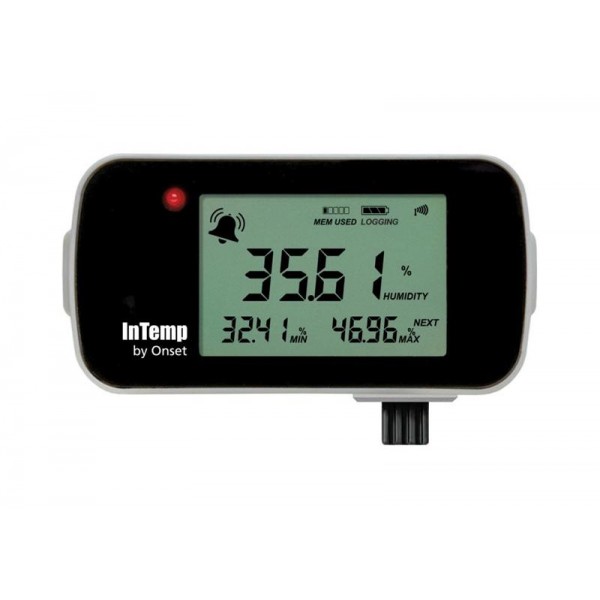

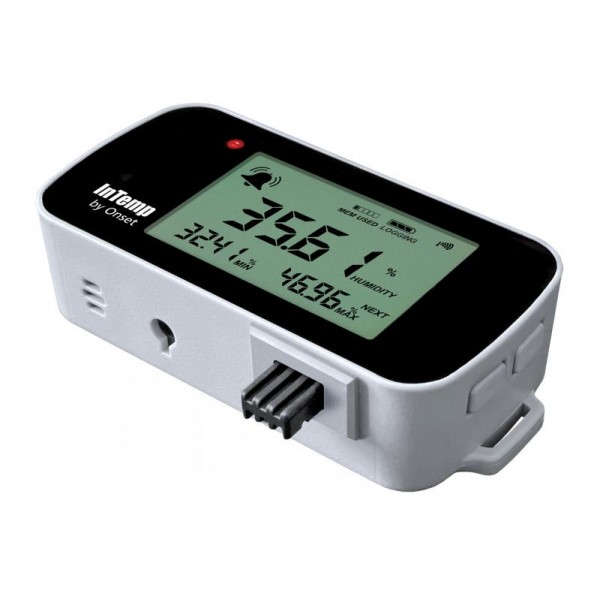

Temperature and humidity recorder InTemp CX450

THE'data recorder InTemp CX450 is designed for monitor the temperature and the'relative humidity in storage environments and transport.
It uses technology Bluetooth Low Energy (BLE) to contact the inTemp gateway CX5000 and the mobile applications InTemp, while transmitting data to the platform cloud InTempConnect.
The device has a external sensor which offers temperature measurements specific from -30°C to 70°C and readings of relative humidity of 0 to 95 %.
The recorder CX450 Temp/RH is equipped withn integrated LCD screen for viewing temperature and relative humidity readings, as well as visual alarms and sound for temperature deviations, of relative humidity, or both.
It also has a function to display minimum values and maximum without affecting already recorded data.
Using bridge InTemp CX5000, users can receive sMS notifications or by e-mail in case of temperature and/or humidity deviations.
In addition, data can be downloaded automatically from recorders located near the aircraft CX Gateway.
Important features of the recorder include: nIST two-point calibration certification, integration with mobile and cloud platforms for regulatory compliance 21 CFR Part 11, a easy configuration recorder, LCD display, sound alarms high accuracy for temperature and relative humidity measurements, a free mobile application for data configuration and visualisation, as well as for real-time alerts and automatic data downloads through the gateway CX5000.
The CX450 data recorder works in cold chain environments and supports relative humidity and temperature measurements.

Technical specifications:

- Includes two -point NIST calibration certificate, in accordance with USP directives, which is good for a year
- Integrating into mobile and cloud platforms for a 21 CFR Part 11 solution
- Easy configuration of the recorder and downloading of data in seconds
- LCD display, with the possibility to erase temperature readings min/max and HR
- Unique sound alarms for temperature, relative humidity and temperature/relative humidity combined
- Powered by AAA batteries to protect against local power losses
- + Precision 0.5C for reliable temperature readings from -30C to 70C
- + 3% accuracy for reliable HR readings from 0% to 90% (+3.5% accuracy for reliable HR readings above 90% to 25C)
- Free InTemp mobile application for configuration recorder, data view and free access InTempConnect cloud software service
- In real time alerts and automatic data downloads with option CX5000 device gateway
- This data recorder works in a cold chain environment
- The CX450 data recorder supports the following measures: Relative humidity and temperature

Need for specific monitoring of GDP and GMP requirements:

- Temperature and internal humidity sensor only (no probe)
- Conforms with GMP/GMP
- Refrigerated with ambient monitoring
- Moisture monitoring

Temperature sensor features:

- Range: -30° to 70°C (-22° to 158°F)
- Accuracy: ±0.5°C from -30° to 70°C (±0.9°F from -22° to 158°F)
- Resolution: 0.024°C to 25°C (0.04°F to 77°F)
- NIST calibration: NIST calibration in two points included

Features of HR sensor:

- Range: 0-95% (without condensation)
- Accuracy: ±3 % from 0 % to 90 % and ±3.5 % from more than 90 % typical at 25°C (77°F)
- Resolution: 0.01%

Recorder Features:

- Radio power: 1 mW (0 dBm)
- Transmission range: approximately 30.5 m (100 ft) of direct visibility
- Wireless data standard: Bluetooth low consumption (Bluetooth Smart)
- Operating range of the recorder: -30° to 70°C (-22° to 158°F), 0 to 95% HR (without condensation)
- Registration rate: 1 second at 6 p.m
- Battery type: 2 AAA batteries, replaceable by user
- Battery life: 1 year, typical with a recording interval of 1 minute.
Faster recording intervals, keeping connected to the InTemp app, excessive gear generation, numerous sound alarms and the search for people all have an impact on battery life.
- Memory: 178 KB (51,700 matched measurements of temperature and relative humidity)
- Full memory download time: about 60 seconds; can take longer as the device is away from the recorder
- LCD display: is visible from 0° to 50°C (32° to 122°F)
The LCD screen can react slowly or turn off at temperatures outside this range
- Dimensions: 9,4 x 5,6 x 2,59 cm (3,7 x 2,21 x 1,02 inches)
- Weight: 90.2 g (3.18 ounces)
- Environmental assessment: IP54
