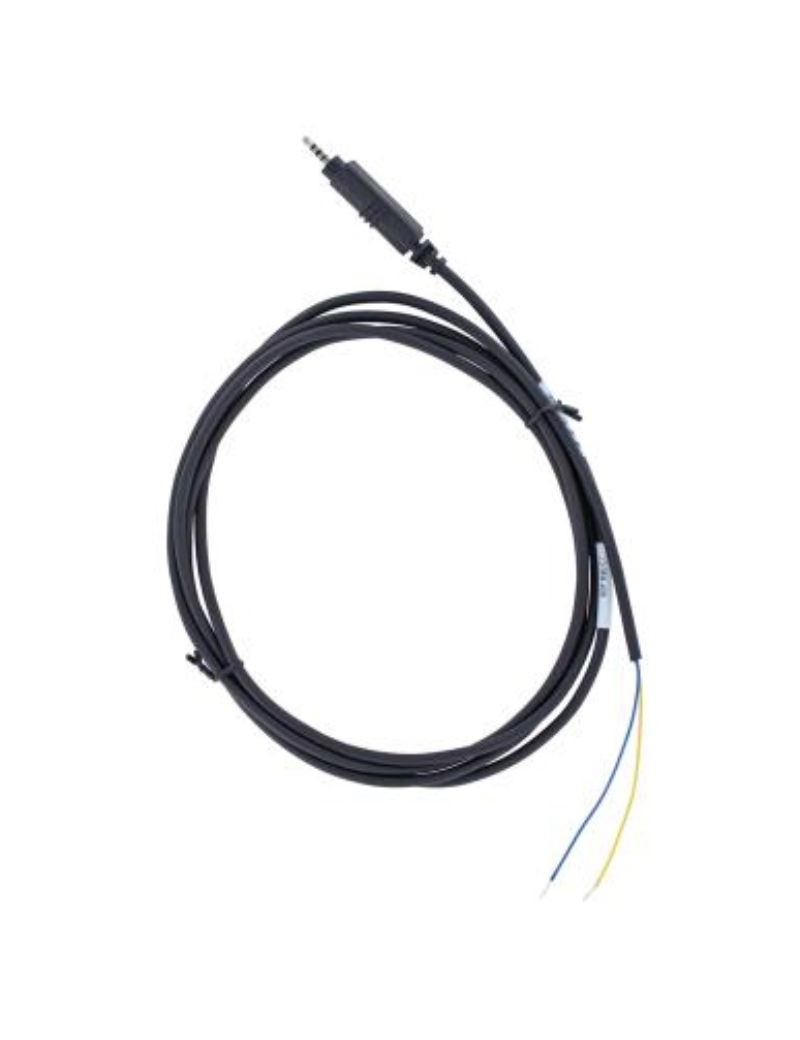

Cable input 4 to 20mA jack 2.5mm SD-MA-420
Write your review
The input cable sensor SD-MA-420 is designed for measure and record of the analogue electrical signals de dc (DC) in a range of 4 to 20 milliampers (mA).
It is designed to be used in conjunction with multichannel data recorders HOBO MX1104 and MX1105, he owns a integrated cable cutter to keep it connected to the'recorder, and it has a self-description technology to communicate automatically the information configuration to the recorder.
The sensor is able to measure the electric current running in a circuit, usually used to monitor variables such as temperature, the pressure flow rate
Easy to install and use it is suitable for a variety of'industrial applications and commercial.
€42.00
Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
The input cable sensor SD-MA-420 is one self-descriptive device used for measure and record of the analogue electrical signals de dc (DC) in a range of 4 to 20 milliampers (mA).
It is designed to be used in conjunction with multichannel data recorders HOBO MX1104 and MX1105.
The sensor is able to measure the electric current circulating in a circuit, generally used to monitor variables such as temperature, the pressure flow rate, etc.
The measurement scale ranges from 4 to 20 mA, which means that the sensor can detect current values in this range.
The cable is equipped with a integrated cable cutter which makes it possible to maintain firmly the connected cable to the data recorder, this ensures that the connection between sensor and recorder remains stable and secure.
One of the most interesting features of this sensor is its ability to'self-description with the data recorder.
When you connect this sensor to the recorder, it is capable of communicate automatically information configuration to the recorder.
So you don't need to manually configure the recorder to understand the sensor specifications, this feature greatly facilitates the'installation and commissioning of the monitoring system.
This makes it a valuable tool for monitoring and recording data in various industrial applications and environment.
Technical specifications:
- Self-description technology for quick and easy configuration

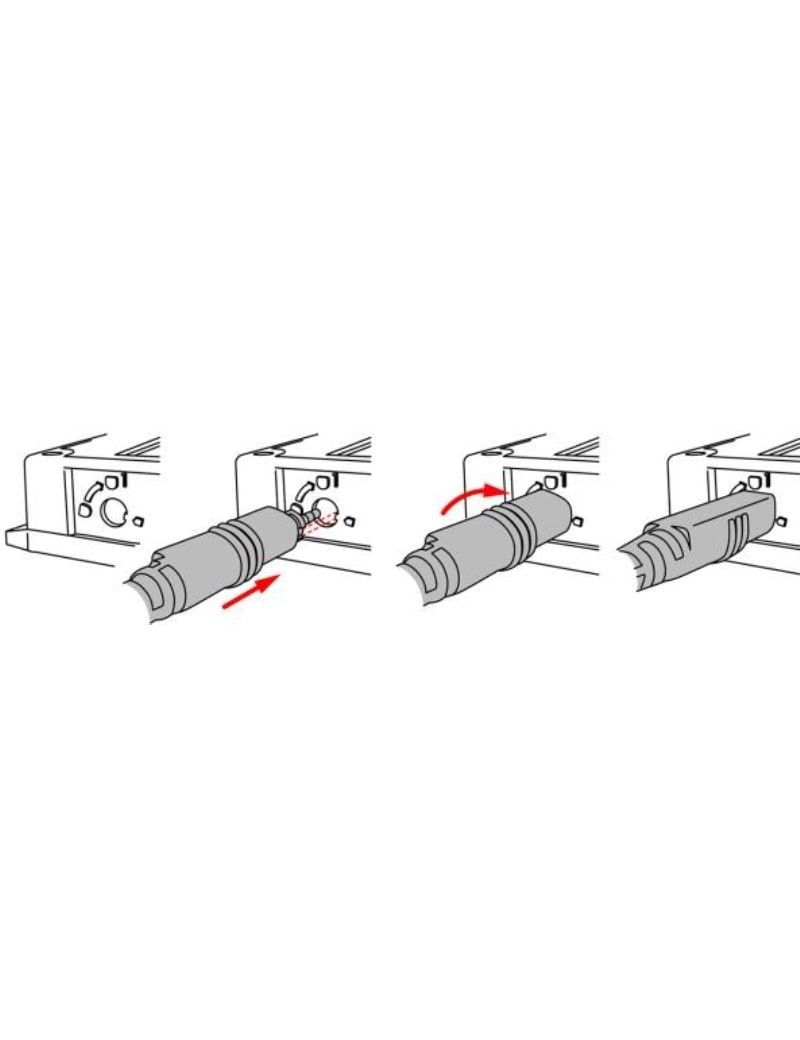

- Lock socket to make sure the cable is connected and stays connected
- Measuring range from 0 to 20.1 mA
- Accuracy of ±0.001 mA ± 0.2% of absolute current
- Cable length: 47 cm (18.5 inches)
- This sensor works in an indoor environment.
- SD-MA-420 sensor supports 4-20mA
Sensor Features:
- Measuring range: 0 to 20.1 mA
- Accuracy: ±0.001 mA ±0.2% absolute current
- Resolution: 0.002% of full scale
- Cable length: 47 cm (18.5 inches)
SD-MA-420
