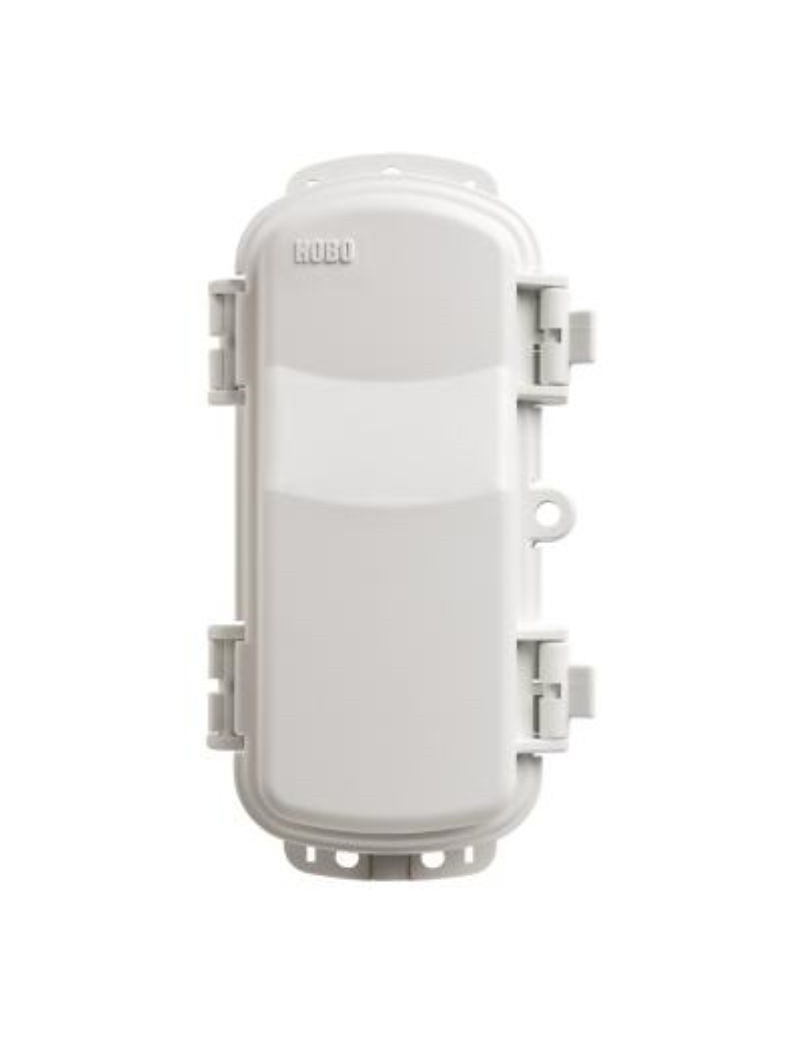

Repeater for HOBOnet network RXW-RPTR-B-868
Write your review
The hOBOnet wireless repeater is a device powered by battery (lithium batteries included) and designed for extend the range of the HOBOnet wireless sensor network.
It is important to note that to use the repeater, a hOBO MicroRX station with a integrated HOBOnet wireless manager and one hOBOnet wireless sensor are also necessary.
€149.00
Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
The wireless repeater RXW-RPTR-B-868 powered by battery is designed to work with the hOBOnet wireless sensor network. Ideal for use when there is an obstacle between wireless sensors and hOBO MicroRX station or for extend transmission range wireless sensors in the network.
Technical specifications:
- 900 MHz wireless mesh self-healing technology
- Wireless range from 450 to 600 metres (1,500 to 2,000 feet) and up to five jumps
- Up to 50 wireless sensors or 336 data channels per HOBO RX station
- Just press a button to join the HOBOnet wireless network
- Onboard memory to avoid data loss
- Powered by 2 replaceable lithium AA batteries
Repeater Features:
- Operating temperature range -40 to 70°C (-40 to 158°F)
- Radio power: 12.6 mW (+11 dBm) not adjustable
- Transmission range:
Reliable connection to a 457.2 m (1,500 ft) sight line at a height of 1.8 m (6 ft)
Reliable connection to a 609.6 m (2 000 ft) sight line at a height of 3 m (10 ft)
- Wireless data standard: IEEE 802.15.4
- Radio operating frequencies RXW-RPTR-B-868: 866.5 MHz
- Modulation employed: OQPSK (decalation of modulation by quadrature phase displacement)
- Data flow rate: up to 250 kbps, not adjustable
- Service cycle: - Maximum number of points: up to 50 wireless sensors or 336 data channels per HOBO RX station
- Log rate: 1 minute at 6 p.m
- Number of channels: 1
- Battery type: Two Lithium AA 1.5 V batteries
- Battery life: 1 year, typical use
- Dimensions: 16,2 x 8,59 x 4,14 cm (6,38 x 3,38 x 1,63 inches)
- Lester: 219 g (7.74 oz)
- Materials : PPCBT, silicone rubber seal
- Environmental assessment: IP67, NEMA 6
RXW-RPTR-B-868
