RX3000 recording station 10 tracks
RX3000 recording station 10 tracks

RX3000 recording station 10 tracks

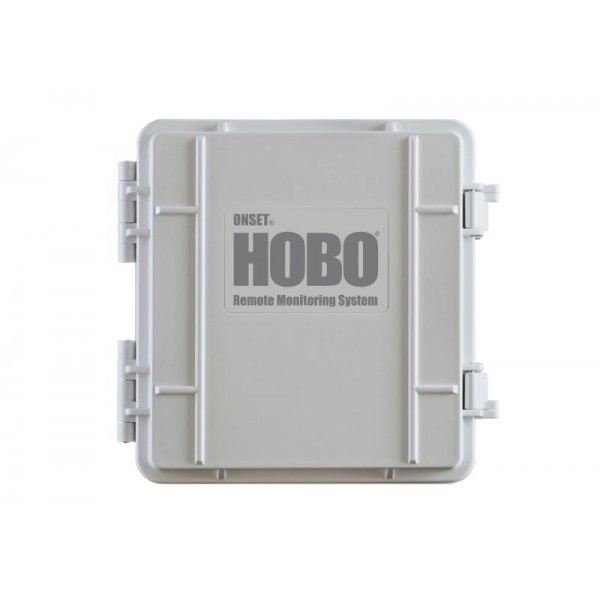

The HOBO station RX3000 is data recording station most remote flexible and versatile of'Onset which provides a immediate access to environmental data instant and site-specific indoor/outdoor anywhere, anytime via Internet.
The station supports a wide range of sensors, has a integrated LCD screen and may be configured to meet specific needs.
Main component of the hOBOnet field monitoring system economic and evolutionary, it is ideal for crop management, the environmental research warehouses, the cold chain and greenhouse operations.

Important:

External sensors sold separately.
Requires a hOBOlink data plan, which must be renewed every year.

Onset devient LI-COR
RX3004-00-01
1000 Items
€1,025.00
Quantity
Add to Wishlist
Add to Compare

Onset,  Hobo,  easy deployment,  ready for use,  weather station,  crop management,  RX3000,  recording station,  flexible,  integrated LCD screen,  environmental research,  cold chain,  10 sensors,  data recording,  distance,  versatile,  immediate access,  environmental data,  indoor environmental data,  external environmental data,  via internet,  wide range of sensors,  terra surveillance system,  warehouse management,  greenhouse operations,  24 hour web access,  alarms,  Robust double-resista housing,  configurable from a mobile
Shop,  Matching products,  By applications,  By product type,  By environment,  By measures,  4-20mA,  Agricultural surveillance,  Energy performance,  Environmental Protection & Research,  Water resources management,  Agricultural research,  Agricultural production,  Disease and Pest,  Irrigation & Water,  Verger & Vineyard,  Livestock,  Conformity of construction,  Energy,  HVAC/R,  Internal environment,  Museum & Preservation,  Storage and Shipping,  Climate,  Ecological,  Environment,  Green space,  Renewable energy,  Aquatic ecology,  Dam management,  Hydrology and groundwater,  Water quality and conformity,  Watershed management,  Wetlands and rainwater,  Inside,  External,  Water,  Current AC,  AC voltage,  Air speed,  Amp Time (Ah),  Ampere,  Barometric pressure,  Carbon dioxide,  Compressed air flow,  Current DC,  DC voltage,  Rosy point,  Evapotranspiration,  Event,  Kilowatt Hours (kWh),  Kilowatt (kW),  Moisture of leaves,  Light intensity,  PAR,  Power factor (PF),  Pulse input,  Precipitation,  Relative humidity,  Remote monitoring of water level,  Soil humidity,  Soil temperature,  Solar radiation,  Temperature,  Volts,  Water flow,  Water level,  Watt / Hours (Wh),  Watts (W),  Recorders,  Wind,  By type of communication,  WEB with hobolink.com,  Weather station
  Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
  Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
  Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
Description

Data storage station most remote flexible of'Onset HOBO RX3000 provides a instant access site-specific environmental data anywhere, at any time, via the Internet.
This configurable station combines the versatility and sensor quality more expensive systems integrated LCD screen and convenience of a plug-and-play operation.
Station RX3000 is the main component of the hOBOnet field monitoring system cost-effective and evolving crop management, renvironmental research warehouses, the cold chain and greenhouse operations.

Technical characteristics of the station:

- Flexible support for a wide range of sensors
- LCD screen for easy field deployment
- Cloud-based data access via HOBOlink
- Get 24/7 web access to your data via a web browser
- Check remote RX3000 system status
- Configure and manage web alarm notifications
- Plan automated data delivery
- Ready-to-use operation
- Alarm notifications by SMS, e-mail
- Robust double weather resistant housing
- Configurable from your mobile device
- Optional analog input, relay and water level sensor modules
- Remote monitoring of water level and water flow with the water level module'Onset (RXMOD-W1)
- Access to NEWA models of plant disease and insect pests risk

Station Features:

- Operating range: -40° to 60°C (-40° to 140°F), no remote communication for battery voltage less than 3.9 V DC

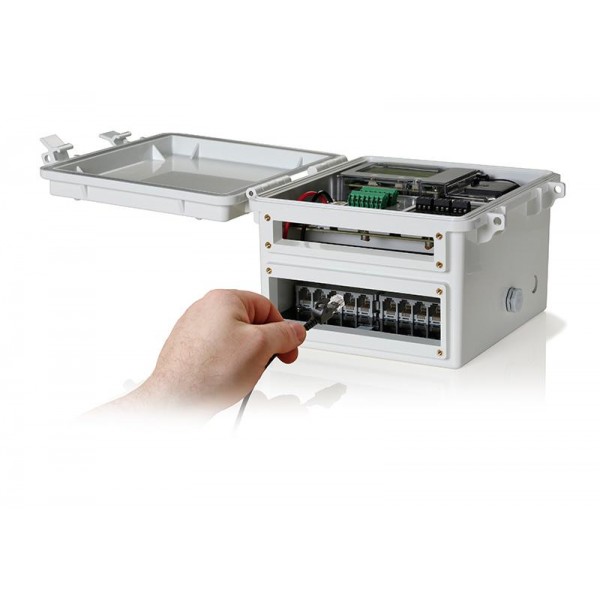

- Smart sensor connectors: ten
- Smart sensor network cable length: 100 m (328 feet) maximum
- Smart sensor data channels: maximum of 15 (some smart sensors use more than one data channel, see sensor manual for more details)

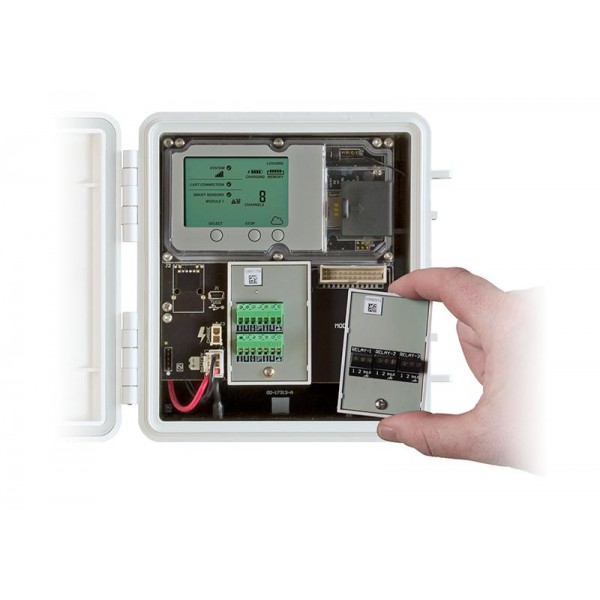

- Module locations: 2
- Log rate: 1 second (RX3001 and RX3002) or 1 minute (RX3003 and RX3004) at 18 hours
- Time precision:
±8 seconds per month in a range of 0° to 40°C (32°F to 104°F)
±30 seconds per month in a range of -40° to 60°C (-40° to 140°F)
- Type of battery / power source:
4 volts, 10 AHr, refillable sealed lead acid
External power supply required using one of these options: AC-U30 adapter, solar panel (SOLAR-xW) or external power source 5 V DC to 17 V DC with external DC power cable (CABLE-RX-PWR )
- Rechargeable battery life: typical 3 to 5 years when used in the temperature range from -20° to 40°C (-4°F to 104°F), operation outside this range will reduce battery life
- Memory: 32 MB, 2 million measurements, continuous recording
- Alarm notification latency: recording interval plus 2 to 4 minutes, typical
- Access to the housing: hinged door secured by two locks with eyelets for use with locks provided by the user
- LCD: the LCD screen is visible from 0° to 50°C (32° to 122°F); lCD screen can react slowly or turn off at temperatures outside this range
- Materials:
External housing : Polycarbonate/PBT mixture with stainless steel hinge axes and brass inserts
Interior housing Polycarbonate
Joints : Silicon rubber
Cable channel : EPDM rubber
Cable opening cover : aluminium with ABS plastic ear screws
Balls in U : steel with zinc bichromate finish
- Dimensions: 18,6 x 18,1 x 11,8 cm (7,3 x 7,1 x 4,7 inches)
- Weight: 2.2 kg (4.85 pounds)

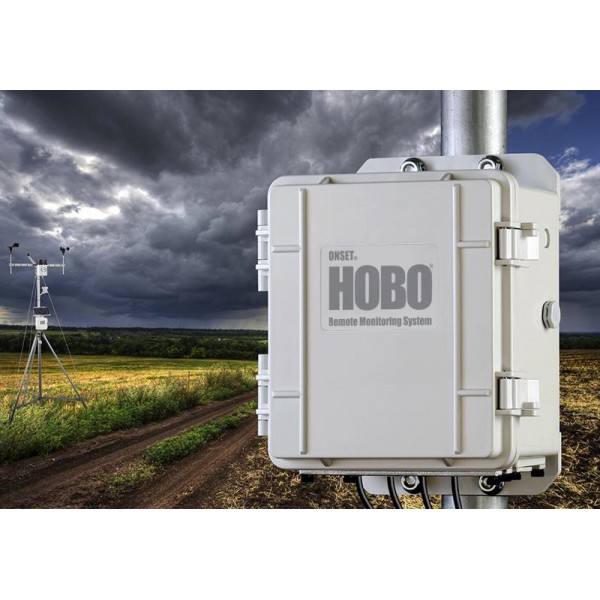

- Mounting: 3.8 cm mast (1.5 inch) or wall support
- Environmental assessment: weather resistant housing, NEMA 4X (requires proper installation of cable channel system)

Contents of the box:

- Remote monitoring station HOBO RX3000
- Two plates for cable access openings with eight screws and one key
- Two rubber cable channels
- Rubber caps
- Fat bag
- Two mounting plates with four screws
- Earthing wire
- Two U-bolts

Product Details
RX3004-00-01
1000 Items
Attachments

18254-L

HOBO RX3000 Remote Monitoring Station Quick Start Guide

Download (901.58KB)
