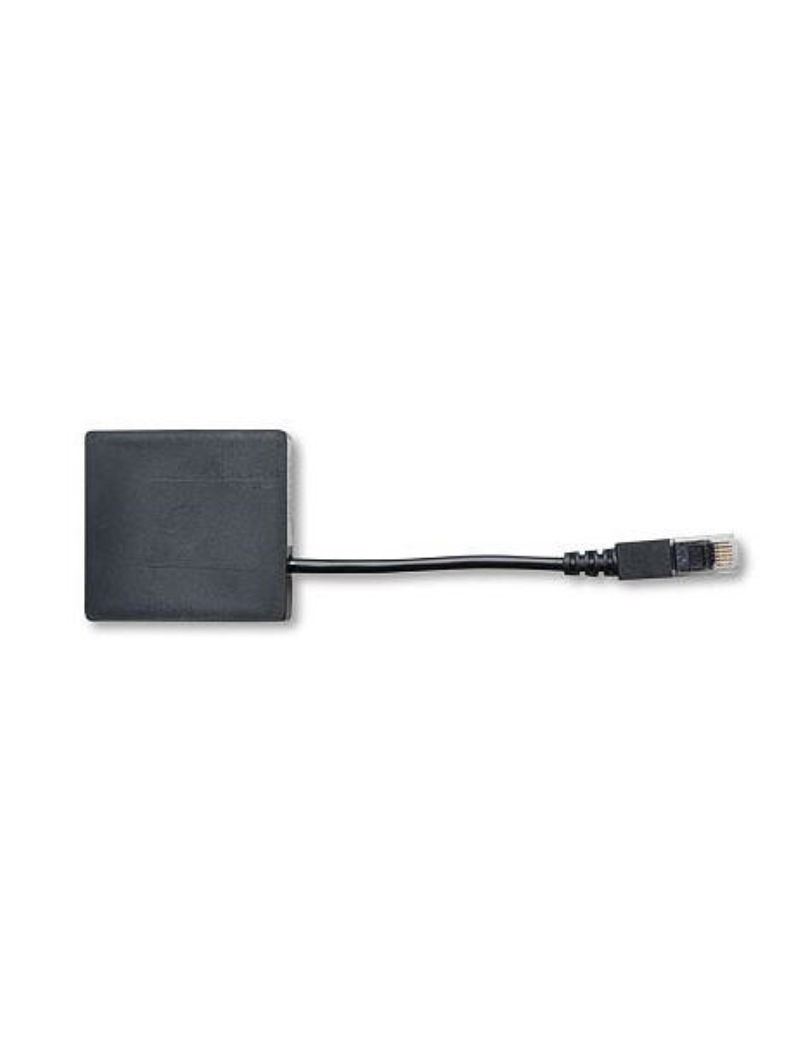

Barometric pressure sensor S-BPA-CM10
Write your review
The barometric pressure sensor S-BPA-CM10 measures the average air pressure between 660 mbar and 1070 mbar, with one accuracy of ±3.0 mbar, on one wide temperature range 40° to 70°C.
This is sensor measures atmospheric pressure or barometric pressure.
Barometric pressure is the pressure exerted by the atmosphere on the surface of the earth, it can vary depending on factors such as altitude, temperature, humidity .
The barometric pressure sensor is often used in meteorological applications to measure atmospheric pressure and predict weather changes.
It can also be used in industrial applications to monitor pressure variations in piping systems or storage tanks.
€199.00
Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
Provides the barometric pressure average for each data recording interval over the 660 mb to 1070 mb (19.47 to 31.55 inHg).
The beach of operating temperature of this sensor is -40° to 70°C (-40° to 158°F), the sensor's survival is supported from -20° to +70°C (-4° to +158°F). This sensor smart special purpose must be used within a housing of'data recorder to ensure the protection against direct exposure to weather.
Technical specifications:
- Specialised smart sensor
- Range from 660 mb to 1070 mb (19.47 to 31.55 inHg)
- Compatible with H22 data recorders
Features:
- Measurement parameters: mean on the recording interval, sampling interval defined by the user from 1 second F)
- Accuracy: ±3.0 mbar (0.088 in. Hg) over the entire pressure range at 25 °C (77 °F); maximum error of ±5.0 mbar (0.148 in. Hg) over -40° at 70°C (-40°F at 158°F)
- Resolution: 0.1 mbar (0.003 in. Hg)
- Derivative: Typical ±0.6 mb (0.018 in. Hg) per year, maximum - Dimensions: 4.5 cm x 4.8 cm x 1.6 cm (1 3/4" x 1 7/8" x 5/8")
- Approximate weight: 30 g (1 oz) Cable length: 10 cm (4")
Note: Must be used inside the recorder housing to protect against direct exposure to weather.
