RX3000 recording station 10 tracks

Micro station 5 channels USB H21-USB

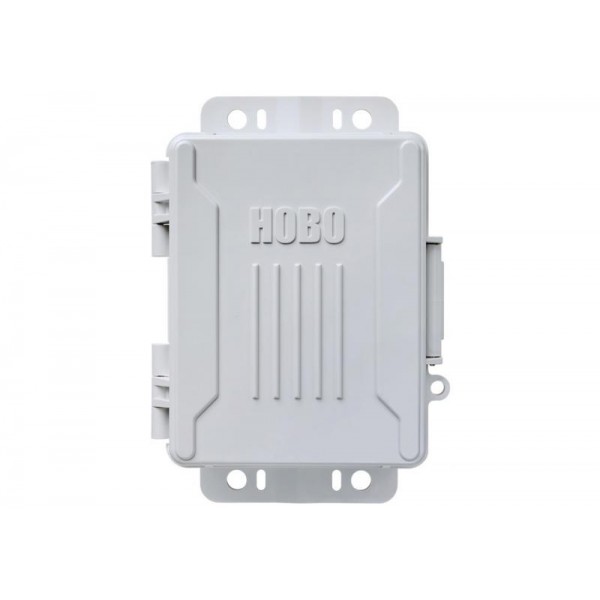

Name: Micro station 5 channels USB H21-USB
Brand: Onset devient LI-COR
SKU: H21-USB
Price: 285 EUR
Availability: InStock

Write your review

The Micro station 5 channels HOBO USB H21 is a data recorder weather resistant for monitoring multichannel microclimates.
She accepts until five smart sensors plug-and-play, has a hinged door to facilitate installation and is equipped with a built-in USB port for quick data reading on a computer.
Possibility of adding cellular options, of level monitoring and water flow.

Important:

External sensors sold separately.
The micro station HOBO H21-USB requires a uSB cable and software HOBOware.

€285.00

Quantity

Add to Wishlist

Add to Compare

Tags: robust, data recorder, HOBOware, uSB cable, monitoring, USB, easy deployment, smart sensor, plug-and-play, weather resistant, graphic representation, analysis, Micro station 5 channels, micro station, H21-USB, multichannel monitoring, microclimate, five smart sensors, sensors, hinged door, built-in USB port, integrated mounting tabs, compact, IP66 housing, four standard AA batteries

Categories: Shop, Matching products, By applications, By product type, By environment, By measures, Agricultural surveillance, Energy performance, Environmental Protection & Research, Water resources management, Agricultural research, Agricultural production, Disease and Pest, Irrigation & Water, Verger & Vineyard, Livestock, Energy, HVAC/R, Internal environment, Climate, Ecological, Environment, Green space, Renewable energy, Hydrology and groundwater, Inside, External, Amp Time (Ah), Ampere, Barometric pressure, DC voltage, Rosy point, Kilowatt Hours (kWh), Kilowatt (kW), Light intensity, Relative humidity, Temperature, Recorders, Wind, By type of communication, USB (computer with Hoboware), Weather station

Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.

Fast and reliable delivery We offer fast and secure delivery options, followed to your door.

Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.

Description

Robust and compact, the micro station H21-USB HOBO is a data recorder weather resistant for multichannel monitoring microclimates.

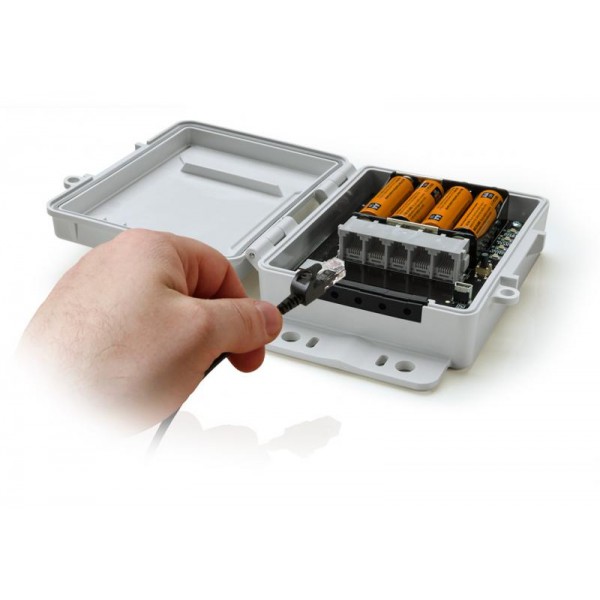

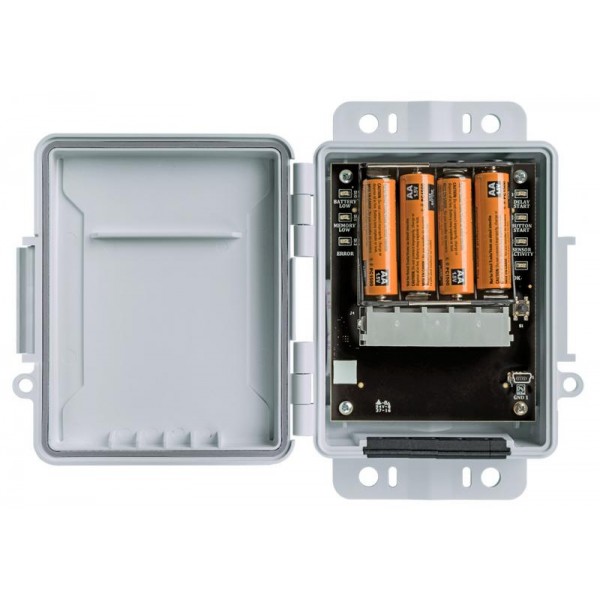

This station is powered by battery accepts until five sensors smart plug-and-play and has hinged door to make the sensor installation simple and quick.
The Micro Station is equipped with built-in USB port for fast and efficient reading of data to a computer, and mounting tabs integrated easy installation.
Looking for a cellular option ? The microRX station offers an integrated solar panel or battery power for affordable remote data unloading via a 4G cell network.
Interested by the level monitoring and flow rate of the'water ? The microRX water level station combines the MicroRX station with the own water level sensor of'Onset and pre-programmed water flow formulas.

Technical characteristics of the microstation:

- Compact size for easy deployment
- Weather resistant IP66 enclosure for harsh environments
- Direct USB discharge - no need for adapter cable
- Includes five Smart Sensor inputs
- Integrated hinged door and mounting tabs
- Works up to one year with four standard AA batteries
- Compatible with HOBOware and HOBOware Pro software for recorder configuration, graphical representation and analysis

Microstation Features:

- No category
- Operating range:
-20° to 50°C with alkaline batteries (-4° to 122°F)
-40 to 70°C with lithium batteries (-40 to 158°F)
- Smart sensor connectors: 5
- Smart sensor data channels: maximum of 15 (some smart sensors use more than one data channel, see sensor manual for more details)
- Smart sensor network cable length: up to 100 metres (328 feet)
- Recording interval: 1 second at 6 p.m
- Start modes: immediate start, at intervals, by push button or delay
- Memory modes: stop when full or wrap when full
- Memory: storage of 512 KB non-volatile flash data
- Accuracy of the time: 0 to 2 seconds for the first data point and ±5 seconds per week at 25°C (77°F)
- Type of battery:
Four batteries alkaline AA 1.5 V for operating conditions from -20° to 50°C (-4° to 122°F)
Four batteries lithium AA 1.5 V for operating conditions from -40 to 70°C (-40 to 158°F)
- Battery life: 1 year, typical use (up to five sensors with a recording interval of one minute or more)
- Type of communication: USB 2.0 interface
- Full memory download time: 4 minutes
- Access to the housing: hinged door secured by a lock with eyelet for use with a lock provided by the user
- Materials:
External housing : Polycarbonate/PBT mixture with stainless steel hinge axes
Joint : silicone foam
Cable channel : EPDM rubber
- Dimensions:
17,04 x 11,94 x 4,47 cm (6,71 x 4,70 x 1,76 in) see diagrams below
Diameter hole padlock : 0.58 cm (0.23 in.)
- Weight: 414 g (14.6 ounces)
- Environmental assessment: waterproof housing, NEMA 4X and IP66
