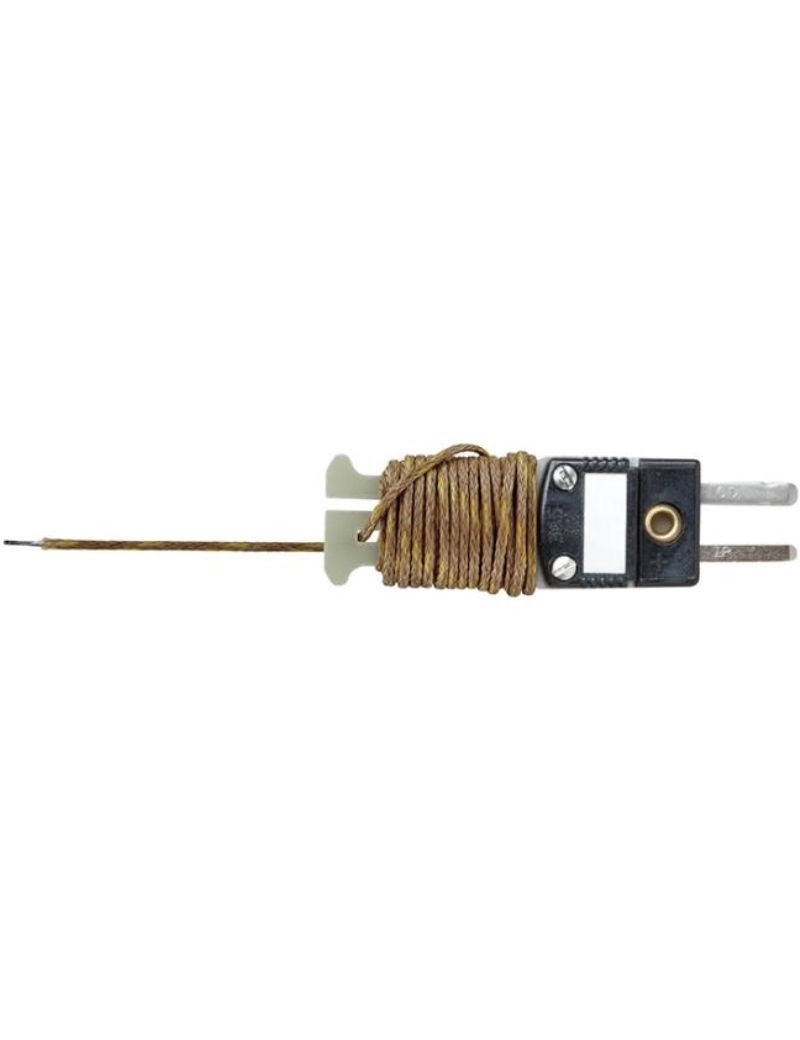

Thermocouple J with apparent hot point TC6-J
Write your review
The thermocouple TC6-J with apparent hot point is one temperature sensor de type J with one measuring range de 0 to 250 °C (32° to 482°F) and one length 6 feet (1.8 m).
Son coil support and his integrated connector facilitate its use with various temperature measuring equipment, while the color code black follow the aNSI standards for correct identification of drivers.
This is a tool precise and reliable for the monitoring and measurement of the temperature in various applications.
It is designed to measure temperature in indoor environments with one accuracy and one resolution dependent on the model'recorder connected.
It is compatible with data recorders UX120-014M and UX100-014M.
€29.00
Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
Thermocouple TC6-J balls is a thermocouple probe specific designed to measure the temperature in an environment of 0 to 250 degrees Celsius (32 to 482 degrees Fahrenheit).
The TC6-J is a thermocouple of type J.
Thermocouples are measuring devices for temperature that exploit the principle of the generation of electrical voltage based on the temperature difference between two drivers.
The type J uses a driver iron (black) and one copper conductor-constantan (white) to measure temperature.
This is sensor is equipped with a insulated wire de 1.8 metres (6 feet).
The length of the wire allows the probe to be placed at an appropriate distance from the heat source or area to be monitored.
The TC6-J is designed with a coil support and one integrated subminiature connector, which facilitates its use and connection to temperature measuring devices or data recorders.
For type J thermocouples, the color code black is in accordance with the standard ANSI.
The color code is important for identify correct on driver and to ensure accuracy of the measurement temperature.
The TC6-J is specifically designed to measure temperatures in the 0 to 250 degrees Celsius (32 to 482 degrees Fahrenheit).
This range of measurements is suitable for many applications, especially in the field industrial, the research and of environmental monitoring.
Technical specifications:
- 30 AWG insulated wire
- Teflon insulation
- Response range from 0°C to 250°C (32°F to 482°F)
Sensor Features:
- Range: 0 to 250°C (32° to 482°F)
- Initial accuracy: +/- 2.2°C (+/- 4°F) ± accuracy of the data recorder
- Insulation : TEFLON type J insulation
THE'teflon insulation is evaluated up to 200 °C (400 °F), continuously, and 250 °C (482 °F) for 24 hours.
