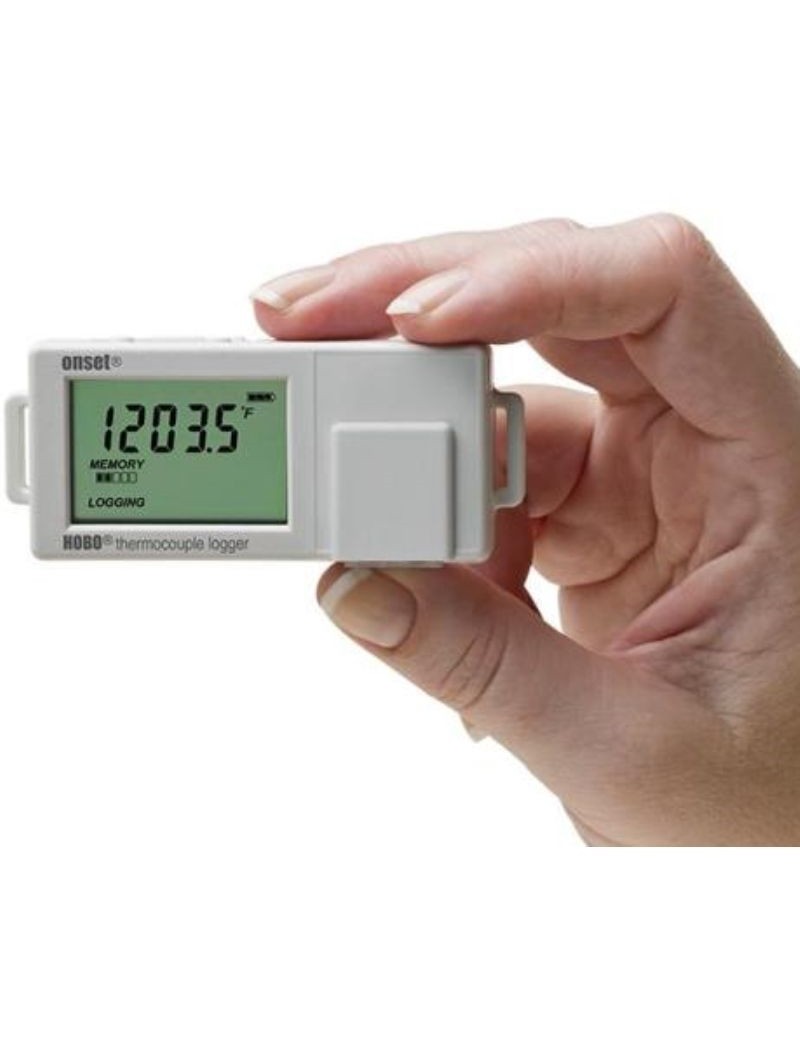

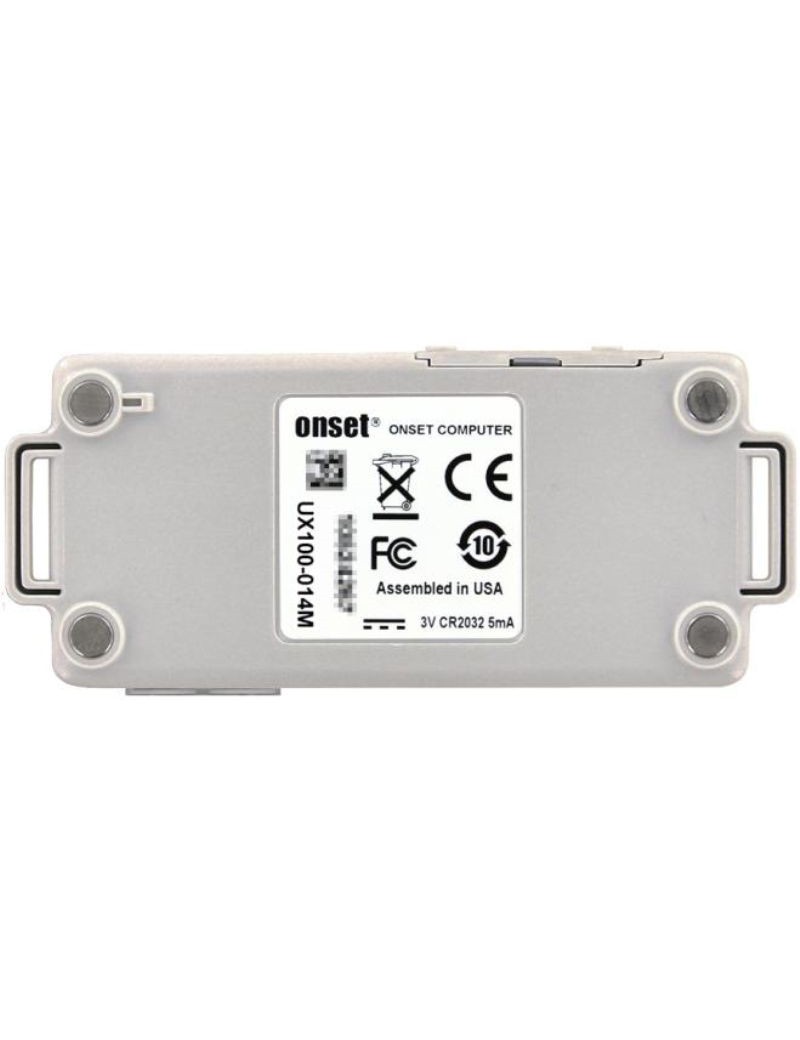

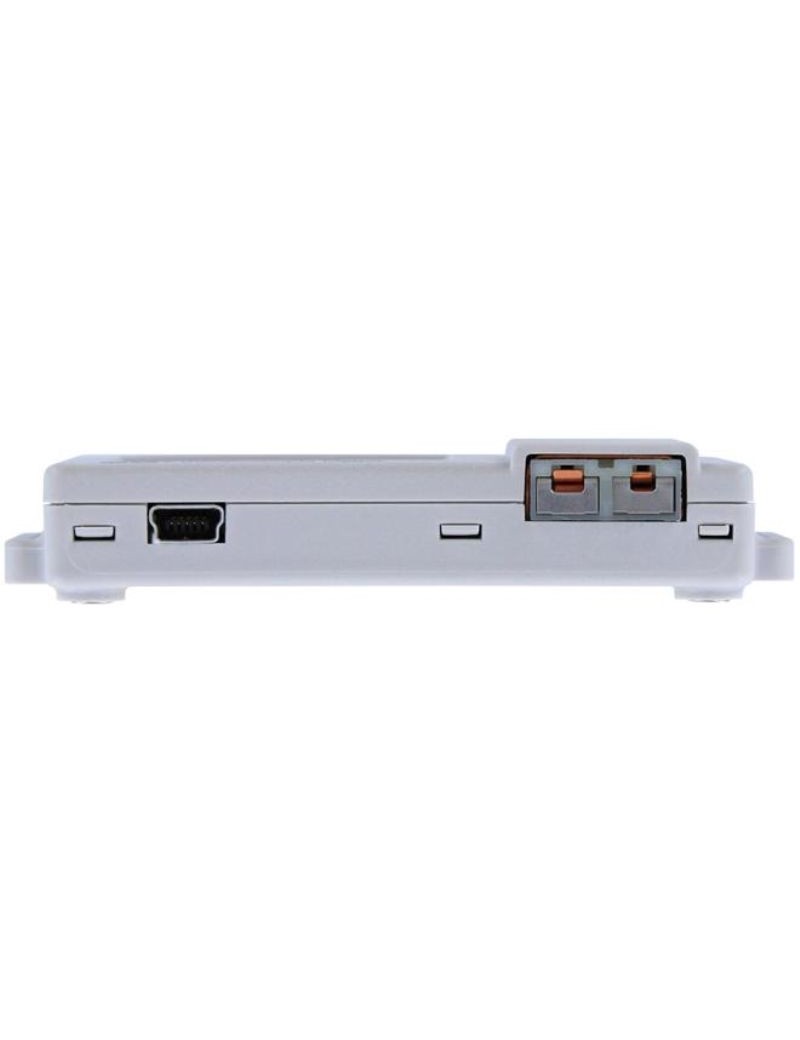

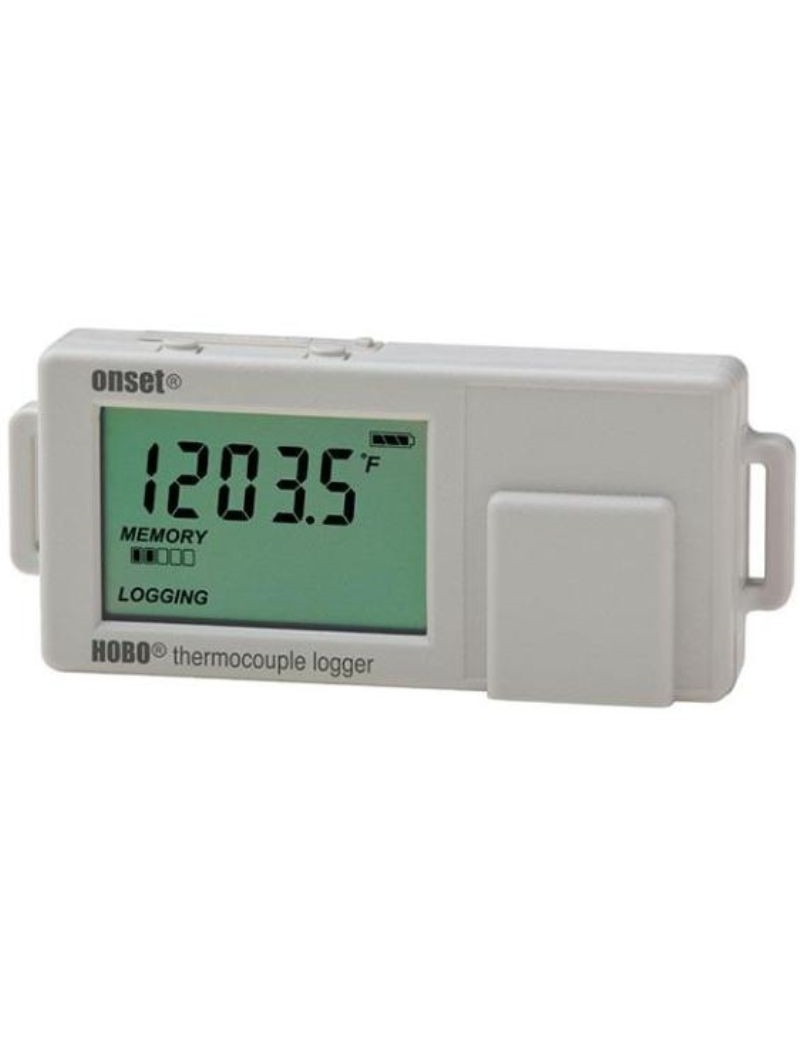

Data recorder at a thermocouple input UX100-014M

THE'data recorder to thermocouple 1 entry HOBO UX100-014M is a device designed for record with accuracy the temperature in miscellaneous indoor environments using thermocouple sensors (sold separately).
It offers a flexibility exceptional by accepting ahe range varied de thermocouple probes type J, K, T, E, R, S, B or N, making it a suitable tool for a wide range of'monitoring applications, ranging from surveillance of industrial processes to concrete maturity tests.
The notable features of thist recorder include the possibility of providing readings of high precision for various types of thermocouples, a lCD screen easy to read, one memory capacity generous to store a large number of temperature data, as well as visual alarm thresholds to report undesirable temperature variations.
In addition, it proposes logging modes of the burst mode and statistics mode to meet the specific data collection needs.
The specificity of the recorder UX100-014M is its ability to measure the ambient temperature using its internal thermal resistance, which may be useful for wider monitoring applications
To conclude, the thermocouple data recorder 1 entry UX100-014M is a tool versatile for accurate temperature data collection in indoor environments, offering high sensor flexibility, ease of use and generous storage capacity.

Onset also proposes thermocouple data recorder to four channels, HOBO UX120-014M.

Important:

- External thermocouple sensors sold separately.
- Requires software HOBOware Pro or HOBOware Pro USB

Technical specifications:

- High precision readings of thermocouples J, K, T, E, R, S, B, N
- Easy to see LCD screen
- High memory capacity
- High and low visual alarm thresholds
- New Burst and Statistics logging modes
- Record room temperature with internal thermal resistance
- This data recorder works in an indoor environment.
- The UX100-014M data recorder supports the following measurements: Temperature

Features of Thermocouple:

- Thermocouple J :
Range: -210° to 760°C (-346° to 1,400°F)
Accuracy: ±0.6°C (±1.08°F) ± precision of thermocouple probe
Resolution: 0.03°C (0.06°F)

- Thermocouple K :
Range: -260° to 1,370°C (-436° to 2,498°F)
Accuracy: ±0.7°C (±1.26°F) ± precision of thermocouple probe
Resolution: 0.04°C (0.07°F)

- Thermocouple T :
Range: -260° to 400°C (-436° to 752°F) Accuracy: ±0.6°C (±1.08°F) ± precision of thermocouple probe Resolution: 0.02°C (0.03°F)

- Thermocouple E :
Range: -260° to 950°C (-436° to 1742°F)
Accuracy: ±0.6°C (±1.08°F) ± precision of thermocouple probe
Resolution: 0.03°C to (0.05°F)

- Thermocouple R :
Range: -50° to 1 550°C (-58° to 2 822°F)
Accuracy: ±2.2°C (±3.96°F) ± precision of thermocouple probe
Resolution: 0.08°C (0.15°F)

- Thermocouple S :
Range: -50° to 1 720°C (-58° to 3 128°F)
Accuracy: ±2.2°C (±3.96°F) ± precision of thermocouple probe
Resolution: 0.08°C (0.15°F)

- Thermocouple B :
Range: 550° to 1 820°C (1 022° to 3 308°F)
Accuracy: ±2.5°C (±4.5°F) ± accuracy of thermocouple probe
Resolution: 0.1°C (0.18F)

- Thermocouple N :
Range: -260° to 1,300°C (-436° to 2 372°F)
Accuracy: ±2.5°C (±4.5°F) ± accuracy of thermocouple probe
Resolution: 0.06°C (0.11°F)

Features of the 10K internal temperature:

- Range : Recording : -20° to 70°C (-4° to 158°F)
- Accuracy: ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see trace A
- Resolution: 0.024°C to 25°C (0.04°F to 77°F); see Plot A
- Driver:

Recorder Features:

- Operating range of the recorder:
Record: -20° to 70°C (-4° to 158°F)
0 to 95 % HR (without condensation)
Recorder accuracy from 0° to 50°C (32° to 122°F)
Launch/reading: 0° to 50°C (32° to 122°F) according to USB specifications
- Resolution: 22 bits
- Recording rate: 1 second at 18 hours, 12 minutes, 15 seconds
- Recording modes: Normal, Rafale or Statistics
- Memory modes: Wrap when full or Stop when full
- Start modes : Immediate, Pushbutton, Date and time or Next
- Interval stop modes: when the memory is full, push button or
- Date and time restart mode: push button

- Accuracy of the time: ±1 minute per month at 25°C (77°F), see route B
- Battery life: 1 year, typical with a recording frequency of 1 minute and a sampling interval of 15 seconds or more
- Type of battery: A 3 V CR2032 lithium battery
- Memory: 512 KB (208,076 measurements, maximum)
- Download type : USB 2.0 interface
- Full memory download time: 1 minute, 30 seconds
- LCD: The LCD screen is visible from : 0° to 50°C (32° to 122°F)
The LCD screen can react slowly or turn off at temperatures outside this range
- Size: 3,66 x 5,94 x 1,52 cm (1,44 x 2,34 x 0,6 inches)
- Weight: 30 g (1.06 oz)
- Environmental index : IP50

Delivered with:

- Single-channel thermocouple data recorder HOBO UX100-014M
- Command Band
- Double-sided adhesive tape
- Self-adhesive strap
