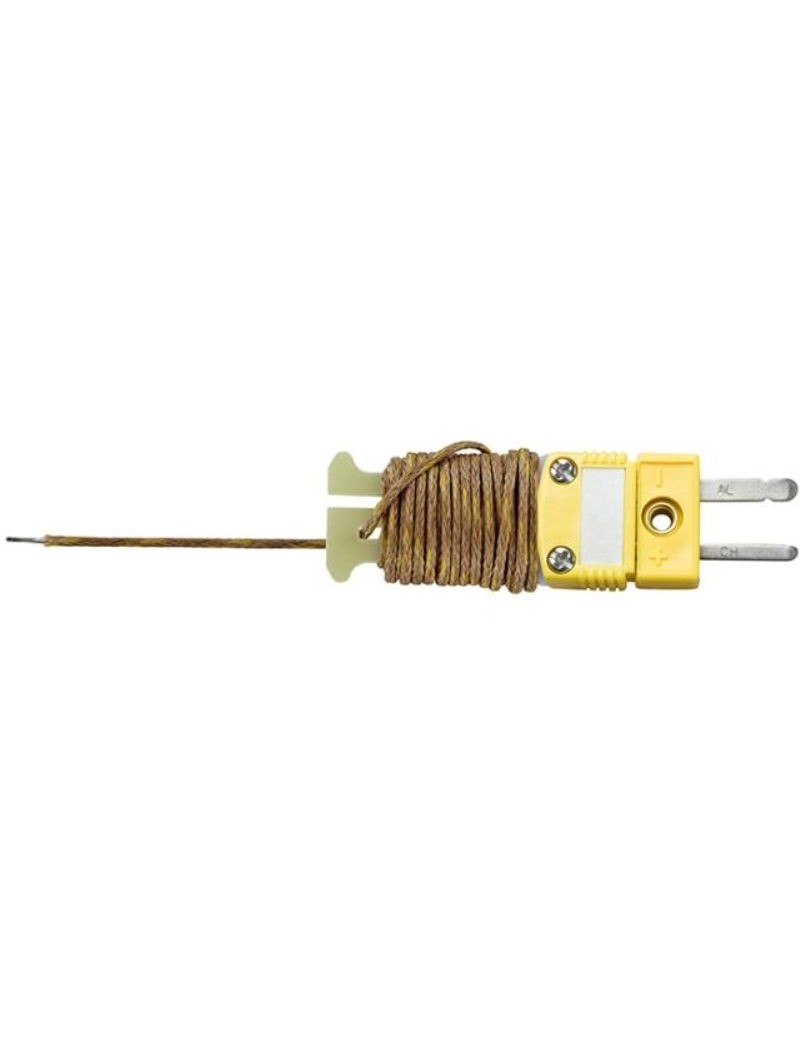

K thermocouple with apparent hot point TC6-K
Write your review
The thermocouple TC6-K is a sensor de temperature specific type K designed for indoor environments, it owns 2 measurement ranges, one beach de 0 to 285°C (32° to 545°F) and one accuracy of +/- 2.2°C (+/- 4°F) and another 285 to 482°C (545° to 900°F) with accuracy de +/- 0.75%.
It is equipped with a 1.8 metre insulated wire, one coil support with a sub-miniature connector, and is identifiable by its color code yellow.
In addition, it is isolated with a glass braid, offering one high strength high temperatures up to 482°C continuously and up to 537°C for point exposure.
It is compatible with data recorders UX120-014M and UX100-014M.
€29.00
Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
The thermocouple TC6-K is a temperature sensor specific type K designed for measure the temperature in indoor environments.
The TC6-K is based on type K of thermocouple, which uses two different conductor wires of alloy nickel-chrome (Chromel) and nickel-aluminium (Alumel). This type of thermocouple is commonly used because of its versatility and its wide temperature measurement range.
This is sensor is equipped with 1.8 metre insulated wire (6 feet), which can be rolled to reach the area where you want to measure the temperature.
The length of the wire offers some flexibility in positioning the probe.
The TC6-K is designed with a coil support and one integrated sub-miniature connector.
This facilitates the use of the probe with different temperature measuring equipment, such as data recorders or temperature controllers.
In accordance with the aNSI standard for thermocouples of type K, the probe is identified by a color code yellow.
This allows rapid and accurate identification of the type of thermocouple used.
The TC6-K can measure temperatures in a range of 0 to 285°C (32° to 545°F) accuracy de +/- 2.2°C (+/- 4°F and in the temperature range of 285 to 482°C (545° to 900°F) with an accuracy of +/- 0.75% in relation to the precise data of the'recorder.
This measurement and precision range is suitable for many indoor temperature monitoring applications.
The probe is isolated with a glass braid, which makes it robust and resistant to high temperatures.
Glass braid offers protection reliable up to 482°C (900°F) continuously and up to 537°C (1000°F) for a single exposure.
Technical specifications:
- 30 AWG insulated wire
- Isolated with glass braid
Sensor Features:
- Range and accuracy:
0 to 285°C (32° to 545°F) - +/- 2.2°C (+/- 4°F) precision
285 to 482°C (545° to 900°F) - +/- Accuracy of 0.75%
± accuracy of the data recorder
- Insulation : Glass braid
The glass braid is evaluated up to 482 °C (900 °F) continuously and 537 °C (1000 °F) for single exposure.
TC6-K
