Thermocouple T with apparent hot point TC6-T
Write your review
The Thermocouple with apparent hot point TC6-T is one sensor de temperature de type T designed for exceptional accuracy in indoor environments.
Thanks to his teflon insulation, it can measure temperatures ranging from -200°C to 180°C, with one precision range adapted to different temperature ranges and according to different data recorders.
His thread of 1.8 metres and his integrated connector facilitate its use with various temperature measuring equipment, making it an ideal choice for the accurate monitoring temperature inside.
It is compatible with data recorders UX120-014M and UX100-014M.
€29.00
Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
The Thermocouple TC6-T with apparent hot point is one temperature sensor specific type T designed for measure the temperature in indoor environments.
The TC6-T is based on type T of thermocouple, which uses two different conductor wires en copper and constantan.
This type of thermocouple is known for its accuracy and his stability to moderate temperatures.
The probe is equipped with 1.8 metres (6 feet) of insulated wire size 30-AWG.
This wire length allows to position the probe at a specific location where the temperature must be measured.

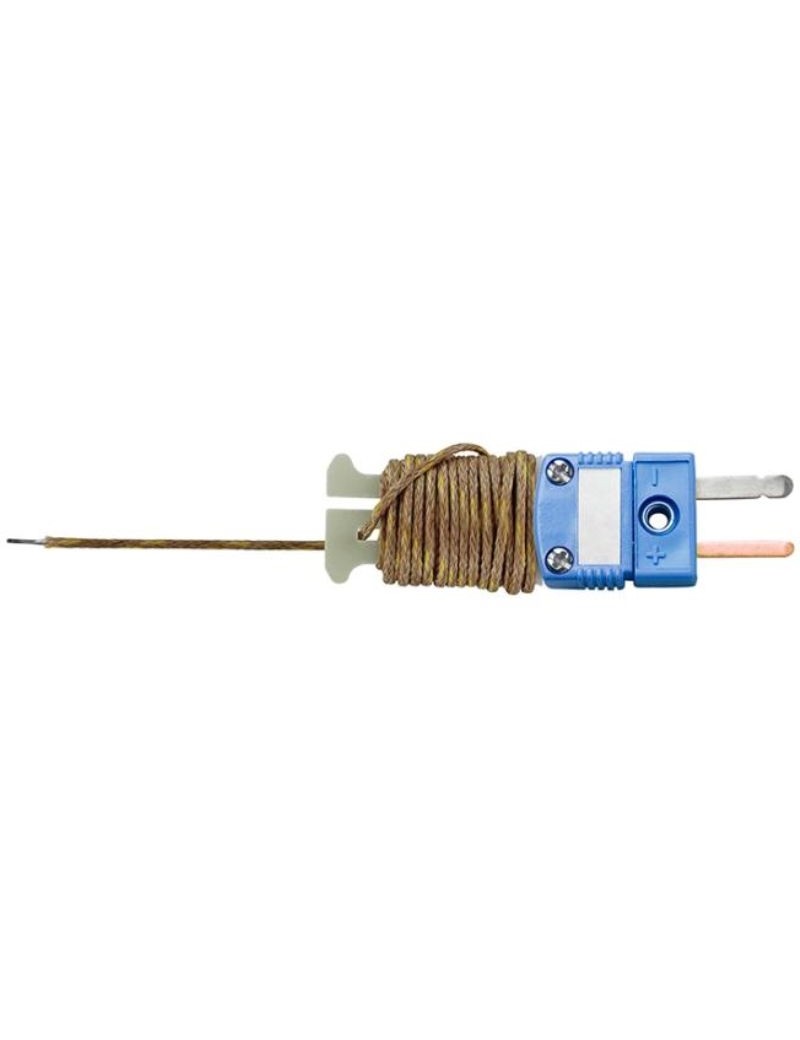

The TC6-T is designed with a coil support and one sub-miniature connector integrated.
This design facilitates its use with different temperature measuring equipment, such as data recorders or temperature controllers.
The probe is isolated with Teflon, a material that offers an excellent heat resistance and the corrosion.
This Teflon insulation allows the sensor to function in a beach temperature from -200°C (-330°F) until 180°C (356°F) continuously, with possible exposure to temperatures up to +250°C (+482°F) during 24 hours.
The TC6-T can therefore measure temperatures in a wide range, with different details according to the range and the accuracy of the'data recorder.
This sensor is suitable for various temperature monitoring applications in demanding indoor environments.
Technical specifications:
- Wire 30 AWG
- Teflon isolated probe
Sensor Features:
- Range and accuracy:
-200 to -65°C (-330° to -85°F) - ±1.5% accuracy ± accuracy of the data recorder
-65 at 130°C (-85° to 270°F) - ±1.0° Accuracy C (± 1.8°F) ± accuracy of the data recorder
130 to 180°C (270° to 356°F) - accuracy ±0,75 % ± accuracy of data recorder
- Insulation: Type T Teflon
Note:
- Teflon insulation is evaluated up to 200 °C (400 °F) continuously and +250 °C (+482 °F) for 24 hours.
- The percentage is in degrees above or below the ice point (0°C or 32°F).
TC6-T
1000 Items
