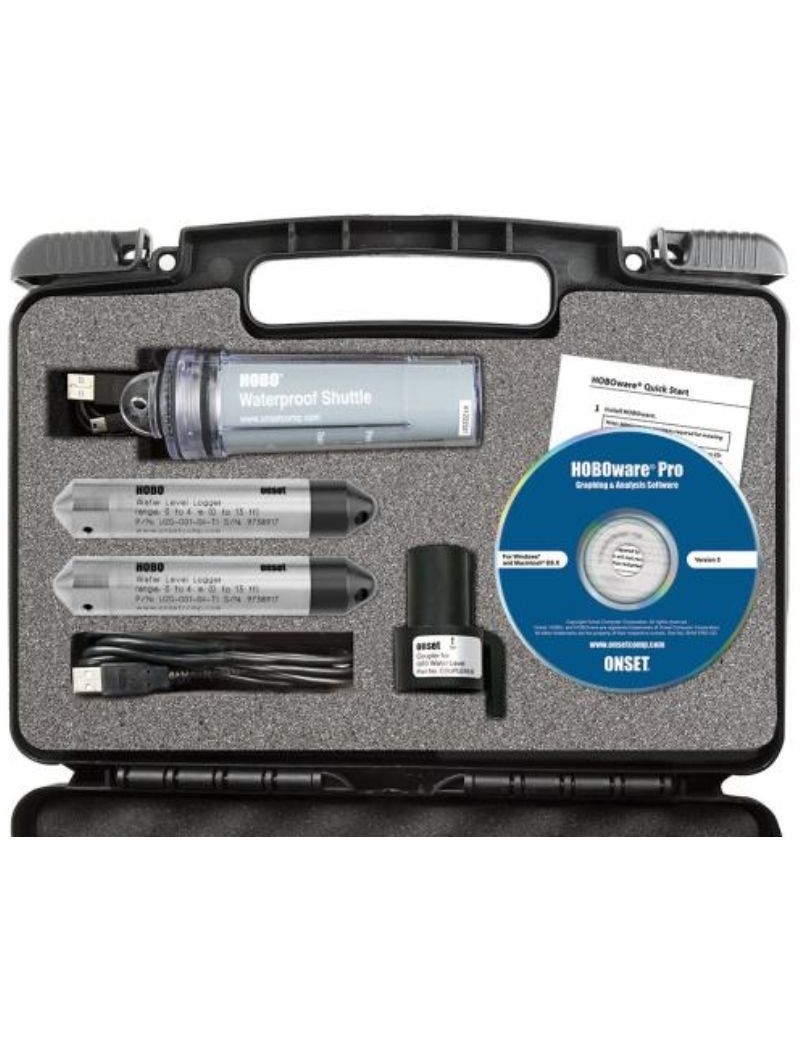

Kit with water level recorder kit (30m) KIT-D-U20-02

The KIT-D-U20-02 is one complete kit offering a monitoring of the water level de high precision and a great ease of use.
It is perfectly suitable for monitoring water levels temperatures and of barometric pressure in miscellaneous aquatic environments such as well streams lakes and freshwater wetlands.

The kit includes:
- a HOBO data recorder U20-001-02 (range 30m)
- a HOBO data recorder U20-001-04 (range of 4m) for barometric pressure
- a waterproof U-DTW-1 HOBO shuttle with 5 interchangeable couplers
- a transport case U20-CASE-1
- software HOBOware Pro for data analysis

This is kit offers high precision in the measurement of the water levels, eliminating the need for bulky ventilation tubes or desiccants to be maintained.
It also includes: data recorder for the barometric pressure, essential to compensate changes de atmospheric pressure when measuring water levels.
The watertight shuttle facilitates connection and recovery underwater data in a manner waterproof.
One transport case is included for transport secure and equipment practice.
Software HOBOware Pro allows easy conversion of data to precise readings water level taking into account barometric pressure, temperature and density water.
The recorders are designed for resisting lightning and are housed in a stainless steel case for a sustainability increased.
They offer the possibility of multirate sampling, which allows frequent recording data, particularly when critical changes such as start or'stop of the pumping.
These recorders are suitable for use in various aquatic environments, including wells, streams, lakes, wetlands and tidal areas, and their design without ventilation tubes bulky deployment and guarantees reliability.
The recorders are equipped with pressure sensors en ceramics robust for a precise measurement and sustainable water levels.

Technical specifications:

- Protection against lightning, no long signal wires and electronics is protected in a stainless steel case
- Software HOBOware Pro allows easy conversion to accurate water level reading, fully compensated for barometric pressure, temperature and water density.
- Multiple rate sampling allows faster sampling at critical times, such as when pumping starts or stops.
- Available in four deep beaches
- Ideal for use in wells, streams, lakes, wetlands and tidal areas
- Aeration tube-free design for easy and reliable deployment
- Durable ceramic pressure sensor

Pressure sensor features:

- Operating range of the pressure sensor: 0 to 400 kPa (0 to 58 psia), approximately 0 to 30.6 m (0 to 100 ft) water depth at sea, or 0 to 33.6 m (0 to 111 ft) water at 3,000 m (10 000 ft) altitude
- factory calibrated range: 69 to 400 kPa ( 10 to 58 psia), 0° to 40°C (32° to 104°F)
- Breaking pressure: 500 kPa (72.5 psia) or 40.8 m (134 ft) deep
- Water level accuracy*:
Typical error: - 0.05% FS, 1.5 cm (0.05 feet) water
Maximum error: - 0.1 % FS, 3 cm (0.1 feet) water
Gross pressure accuracy**: 0.3% FS, 1.20 kPa (0.17 psi) maximum error
Resolution: Pressure response time: 90% Thermal response time (90%)†: approximately 10 minutes in water to obtain a complete compensation of pressure sensor temperature

* With accurate measurement of the reference water level and barometric compensation assistant data
** The absolute pressure sensor accuracy includes all errors induced by pressure drift, temperature and hysteresis
† The maximum error due to rapid thermal change is about 0.5%

Temperature sensor features:

- Operating range: -20° to 50°C (-4° to 122°F)
- Accuracy: 0.37°C to 20°C (0.67°F to 68°F), see track A
- Resolution: 0.1°C to 20°C (0.18°F to 68°F) (10 bits)
- Response time (90%): 3.5 minutes in water (typical)
- Stability (driving): 0.1°C (0.18°F) per year

Recorder Features:

- Real time clock: ± 1 minute per month 0° to 50°C (32° to 122°F)
- Battery: 2/3 AA, 3.6 Volt Lithium, factory replaceable
- Battery autonomy (typical use): 5 years with 1 recording interval of one minute or more
- Memory (non-volatile): 64 KB memory (approximately 21,700 pressure and temperature samples)
- Dimensions: 2.46 cm (0.97 inches) in diameter, 15 cm (5.9 inches) in length; 6.3 mm (0.25 inches) diameter mounting hole
- Weight: approximately 210 g (7.4 oz)
- Materials in contact with the fluid: stainless steel 316, Viton O-rings, acetyl cap, ceramic sensor
- Shock/fall:
The recorder is shock sensitive.
Handle carefully and avoid any impact.
Always use appropriate packaging when shipping the recorder.
- Journaling interval: fixed or multiple rate logging intervals, with up to 8 intervals and user-defined logging times, recording intervals from 1 second to 18 hours.
Refer to the HOBOware software manual.
- Launch modes: Immediate start and delayed start
- Method of unloading: Unload during logging, Stop and unload
- Indication of battery:
The battery voltage can be viewed in the status screen and possibly stored in the data file.
Low battery indication in the data file.
- Environmental index : IP68
