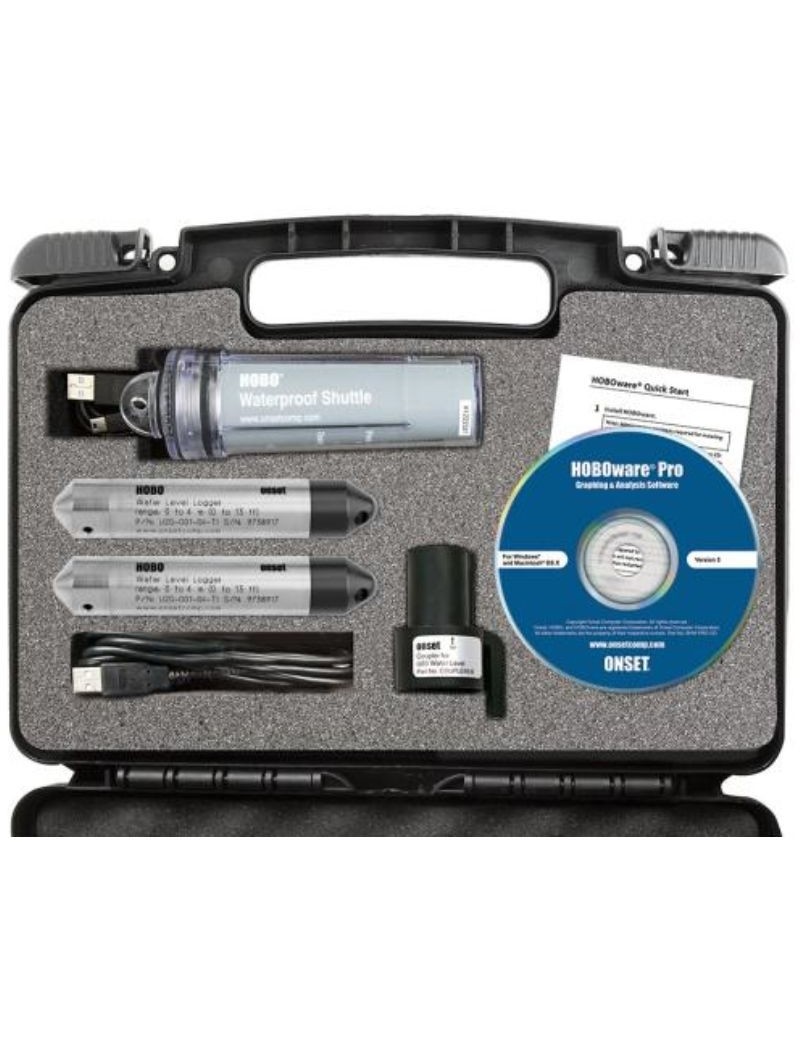

Kit with water level recorder kit (4m) KIT-D-U20-04

The KIT-D-U20-04 is one complete kit which allows monitoring highly precise of the water level in miscellaneous aquatic environments, such as well streams lakes and freshwater wetlands, while ensuring great ease of use.

The kit includes:
- A HOBO data recorder U20-001-04 with a range of 4 meters for barometric pressure.
- A waterproof U-DTW-1 HOBO shuttle equipped with 5 interchangeable couplers.
- A U20-CASE-1 transport case.
- Software HOBOware Pro for data analysis.

This kit ensures a exceptional accuracy in the measurement of the water levels, thus eliminating the need for bulky ventilation tubes or dehydratants to be maintained.
THE'data recorder U20-001-04 measures also barometric pressure, which is essential to correct changes de atmospheric pressure when measuring water levels.
The watertight shuttle simplifies the connection and data recovery under water in a manner waterproof, while the transport case allows safe and convenient transport of equipment.
Software HOBOware Pro this includes facilitating the conversion of data into accurate water level measurements, taking into account barometric pressure, temperature and temperature water density.
THE'recorder is designed for resisting lightning and is housed in a stainless steel case for a sustainability increased.
It offers the possibility of multirate sampling, which allows for frequent recording data, including critical changes, such as start or l'stop of the pumping.
It is well suited for use in a variety of aquatic environments, including wells, streams, lakes, wetlands and wetlands tidal zones, and its design without ventilation tubes bulky facilitates its deployment and guarantees its reliability.
The recorders are equipped with pressio sensorsn in robust ceramic for a precise measurement and sustainable water levels.

Technical specifications:

- Protection against lightning, no long signal wires and electronics is protected in a stainless steel case
- Software HOBOware Pro allows easy conversion to accurate water level reading, fully compensated for barometric pressure, temperature and water density.
- Multiple rate sampling allows faster sampling at critical times, such as when pumping starts or stops.
- Available in four deep beaches
- Ideal for use in wells, streams, lakes, wetlands and tidal areas
- Aeration tube-free design for easy and reliable deployment
- Durable ceramic pressure sensor

Pressure sensor features:

- Operating range of the pressure sensor: 0 to 145 kPa (0 to 21 psia), approximately 0 to 4 m (0 to 13 ft) depth of water at sea, or 0 to 7 m (0 to 23 ft) water at 3,000 m (10 000 ft) altitude
- Calibrated factory range: 69 to 145 kPa ( 10 to 21 psia), 0° to 40°C (32° to 104°F)
- Breaking pressure: 310 kPa (45 psia) or 18 m (60 ft) deep
- Water level accuracy*:
Typical error - 0.075% FS, 0.3 cm (0.01 ft) of water
Maximum error: - 0.15% FS, 0.6 cm (0.02 ft) water
Gross pressure accuracy**: 0.3% FS, 0.43 kPa (0.063 psi) maximum error
Resolution: Pressure response time: 90% Thermal response time (90%)†: approximately 10 minutes in water to obtain a complete compensation of pressure sensor temperature

* With accurate measurement of the reference water level and barometric compensation assistant data
** The absolute pressure sensor accuracy includes all errors induced by pressure drift, temperature and hysteresis
† The maximum error due to rapid thermal change is about 0.5%

Temperature sensor features:

- Operating range: -20° to 50°C (-4° to 122°F)
- Accuracy: 0.37°C to 20°C (0.67°F to 68°F), see track A
- Resolution: 0.1°C to 20°C (0.18°F to 68°F) (10 bits)
- Response time (90%): 3.5 minutes in water (typical)
- Stability (driving): 0.1°C (0.18°F) per year

Recorder Features:

- Real time clock: ± 1 minute per month 0° to 50°C (32° to 122°F)
- Battery: 2/3 AA, 3.6 Volt Lithium, factory replaceable
- Battery autonomy (typical use): 5 years with 1 recording interval of one minute or more
- Memory (non-volatile): 64 KB memory (approximately 21,700 pressure and temperature samples)
- Dimensions: 2.46 cm (0.97 inches) in diameter, 15 cm (5.9 inches) in length; 6.3 mm (0.25 inches) diameter mounting hole
- Weight: approximately 210 g (7.4 oz)
- Materials in contact with the fluid: stainless steel 316, Viton O-rings, acetyl cap, ceramic sensor
- Shock/fall:
The recorder is shock sensitive.
Handle carefully and avoid any impact.
Always use appropriate packaging when shipping the recorder.
- Journaling interval: fixed or multiple rate logging intervals, with up to 8 intervals and user-defined logging times, recording intervals from 1 second to 18 hours.
Refer to the HOBOware software manual.
- Launch modes: Immediate start and delayed start
- Method of unloading: Unload during logging, Stop and unload
- Indication of battery:
The battery voltage can be viewed in the status screen and possibly stored in the data file.
Low battery indication in the data file.
- Environmental index : IP68
