HOBOware PRO v.3.x - Downloadable PC & Mac

HOBOware (available in versions) Windows or Mac) is the new recordr management software, of graphical display anddata analysis.
This completely new software supports all hobo recorders series U, Hobo Station Weather, Hobo Micro Station and Hobo FlexSmart, and incorporates new functions such as conversion of data units to the sensor unit, and the possibility of save modified graphics so that they can be recalled and re-used.
In addition, HOBOware has an evolutionary post-processing assistant function which allows to calculate new datasets: degree-day of growth, H2O concentration (g/Kg), barometric compensation.
HOBOware Pro is also in compliance with the 21 CFR Part 11 (pharmacy, medical device, cosmetic).

Environment required under Windows:

-Microsoft Vista Business or Home Premium, XP, 2000
-Microsoft Windows XP 2000
-Java Runtime Environment (JRE) version 1.4.2 or 1.5
-256 MB RAM (512MB recommended)
-3.5MB free space after installing Java Runtime Environment
-USB communication port
-Series port or adapter for Hobo Weather, Micro Station or FlexSmart recorder
-Display 800 x 600 (minimum) with 256 colors (1024 x 768 recommended)

Environment required under Mac:

-Mac OS X versions 10.3.x or 10.4.x and above
-Java Runtime Environment (JRE) version 1.4.2 or 1.5
-256 MB RAM (512MB recommended)
-Free space of 7 MB
-USB communication port
-Series port or adapter for Hobo Weather, Micro Station or FlexSmart recorder
-Display 1024 x 768 (minimum)

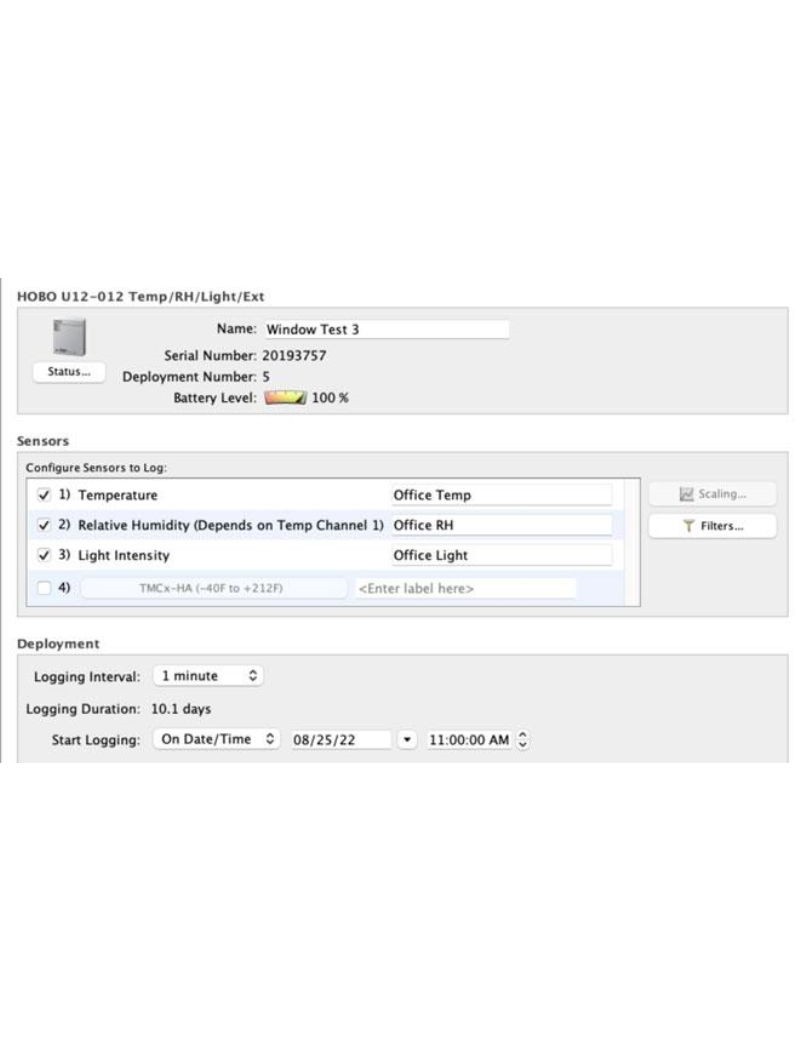

Functions, easy configuration, configurable launch parameters:

-Attribution of lanes to be recorded
-Sampling interval (configurable from 1 second to 18 hours)
-Immediate departure, delayed, delayed at interval or by Push Button
-Stack level recording
-Linear conversion of data units to sensor unit for inputs 0-2.5V or 4-20mA
-Indication of battery level
-Synchronization of the internal clock from recorder to computer

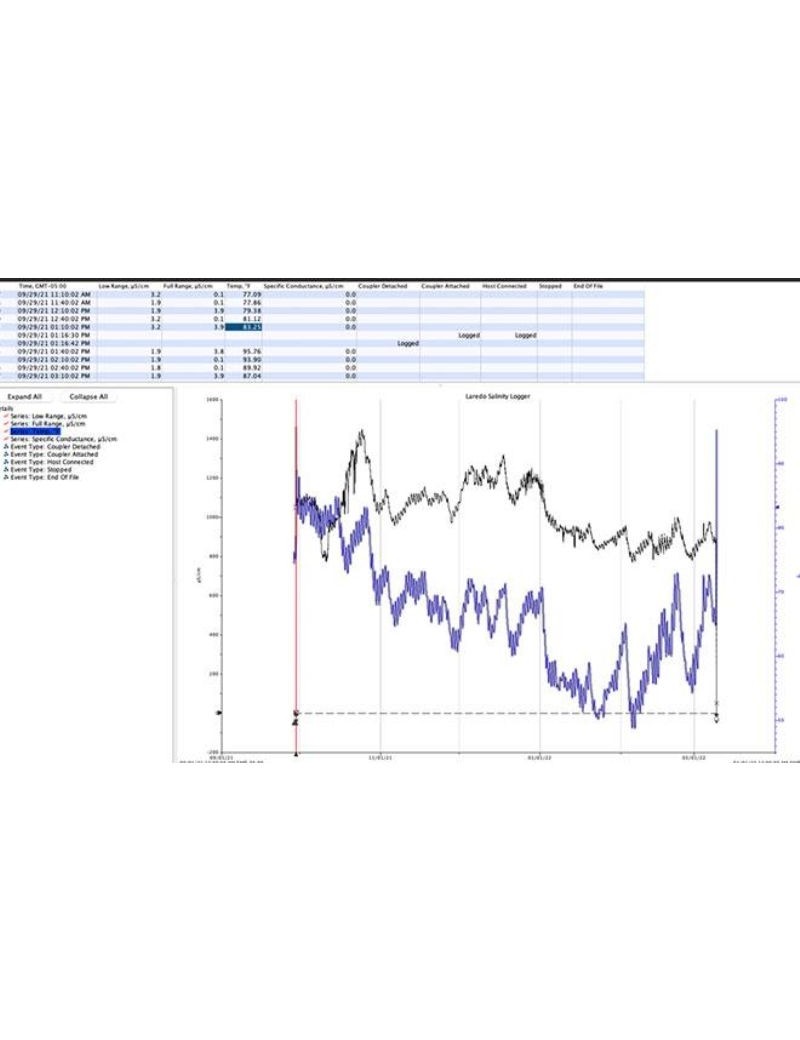

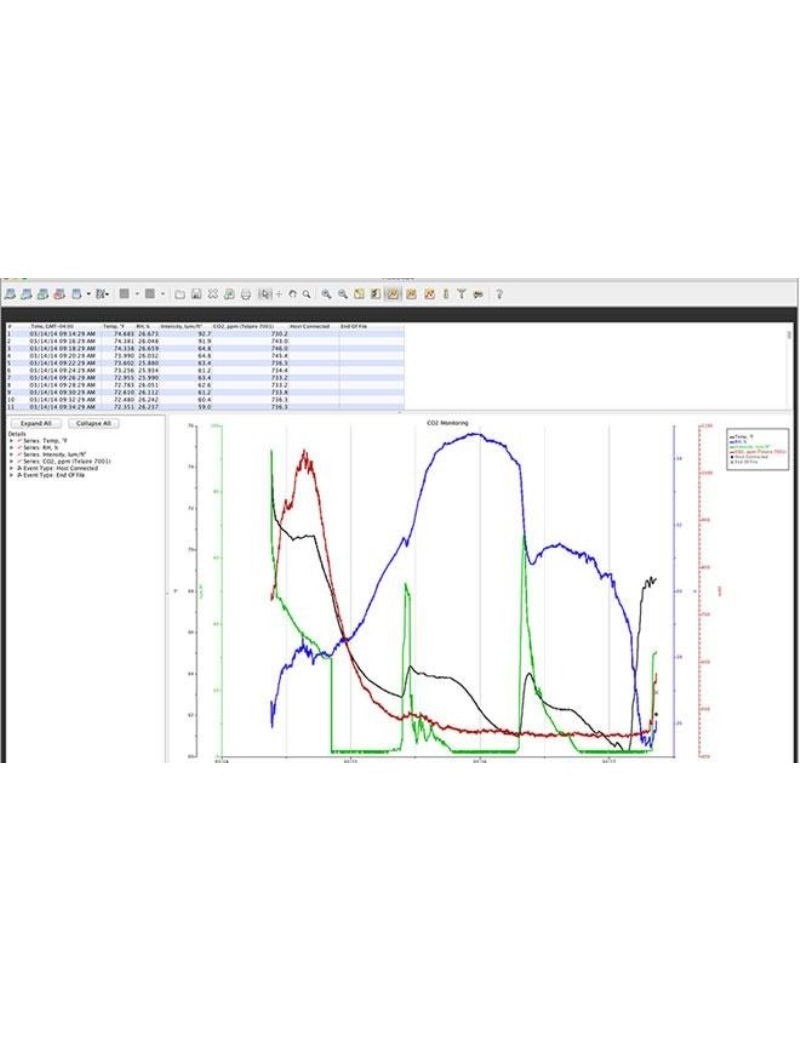

Graphic visualization:

- Visualization of the curves of one or more recorders on the same graph
- Ability to combine multiple deployment data on a single graph
- Covers data from different time periods for comparison by month, or before and after
- Ability to copy and paste a curve from one graph to another
- Backup and graph reminder – saves all changes: additional series curves and derived data
- Import text files in BoxCar Pro format
- Zoom and axis control tools for focusing on precise data
- Using the cursor to display the specific value of a curve
- Display of serial data and details such as launch parameters and data statistics
- Addition of limit lines to the graph
- Control of axes, curves, legend, and title properties
- Optional display of recorded events such as button setting/setting, connection to PC, recording shutdown, low stack, end of file in graph or exported file

Recorder status check:

- Checks the configuration of the recorder before launching
- Checks the operation of the recorder during recording
- Displays real-time sensor playback
- Displays the used memory level and battery voltage

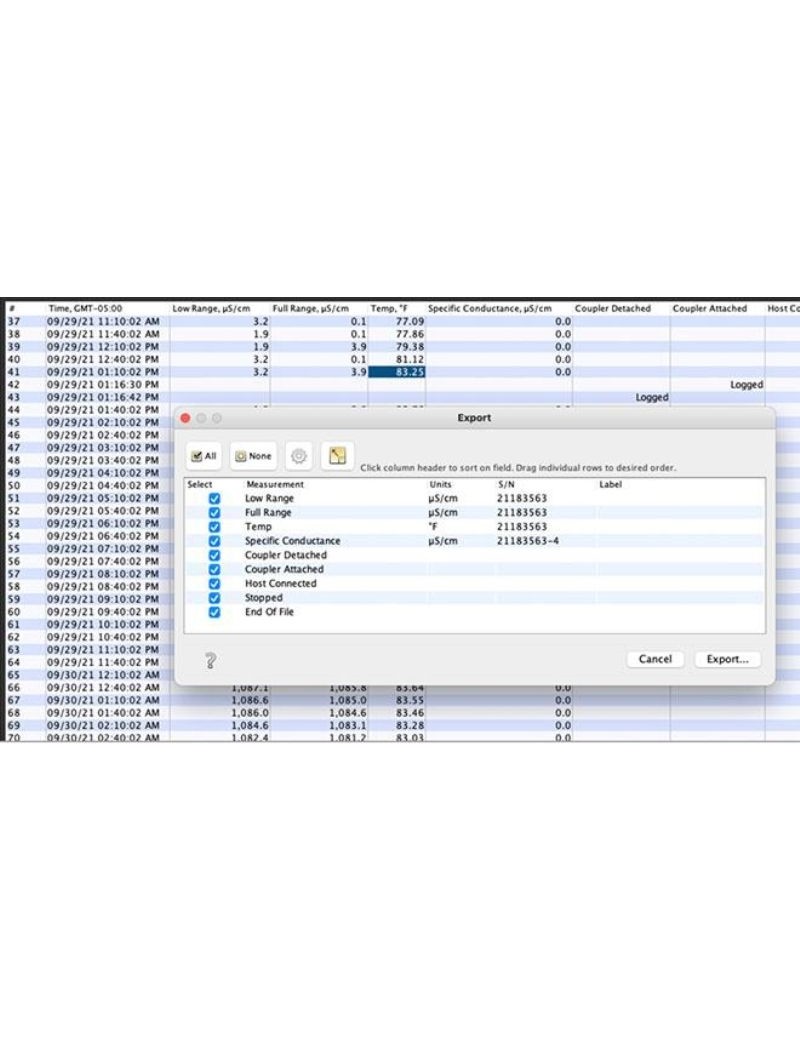

- Export of data to other programmes
- One-click export to Microsoft® Excel or other ASCII-enabled programs
- Supports international time and date formats
- Ability to copy and paste graphs to other programs

Post-processing assistant function:

- The post-processing assistant can calculate new data sets that can be displayed and exported:
-The barometric compensation wizard compensates for water level measurement based on atmospheric pressure from a HOBOware file or a text-format pressure file
-The degree-day growth assistant provides a measure of the optimal time to sow, spread fertilizers and pesticides, and harvest
-Assistant "Grains Per Pound", also known as moisture ratio or mixing ratio, provides a measurement of the mass of H2O in grams per Kg dry air

Analysis functions:

- Analysis functions can be used to extract the main information from the recorded data
- Creation of a new dataset, which can be graphically represented or exported
- Data filter functions at user custom intervals in seconds, minutes, hours, or days
- Analysis functions on sampling intervals:
- Mini, max, and mean values per interval
- Total rainfall or number of pulses per interval
- Analysis functions for On/Off recorders and status change:
- Walking and stopping time (opening and closing time) in second
- % walking and stopping (% opening and closing)
- Number of start and stop (number of opening and closing)
- Analysis functions for the event recorder:
- Number of events
- Total cumulative events

Other characteristics:

Unloading of recorded data or checking of the status being recorded
