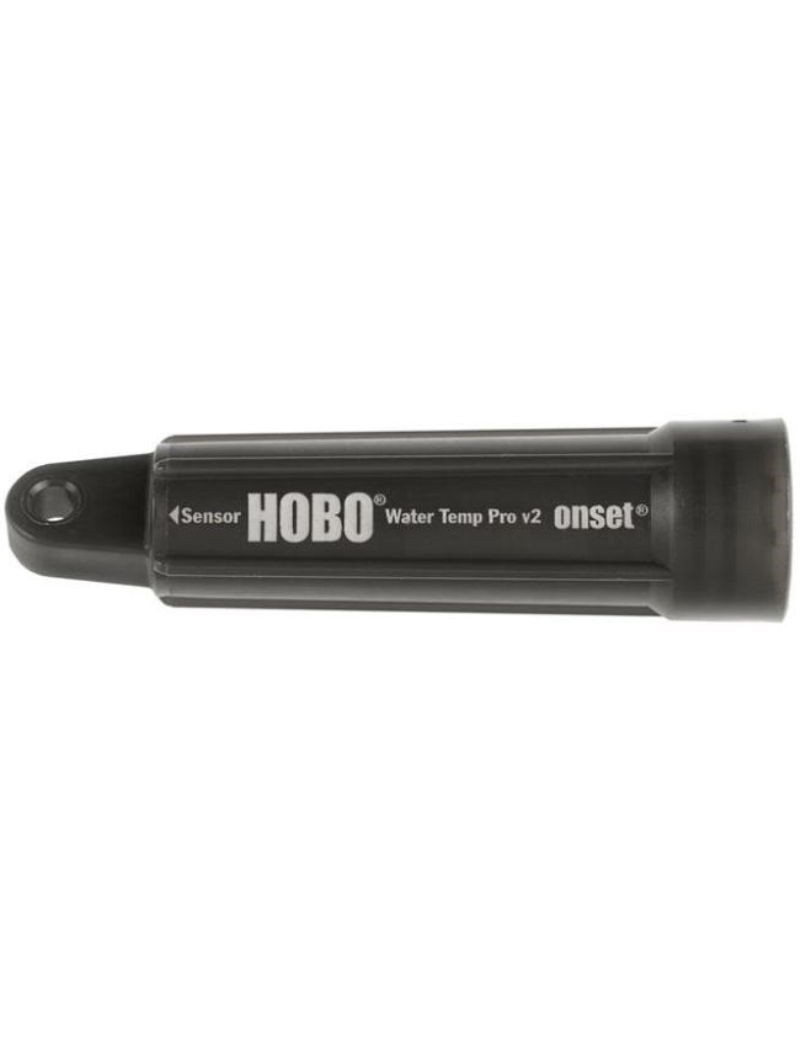

Waterproof temperature recorder 120 meters Water Temp Pro V2 U22-001

The data recorder U22-001 de temperature of the'water is sustainable and has a resolution 12 bits for measure temperature under different conditions, particularly in air and in water.
It has a precision sensor which provides an accuracy of ±0.2°C, and can measure temperatures ranging from -40°C to 70°C (-40°F to 158°F) in air, and up to 50°C (122°F) in water.
This device is designed for extended use aquatic environments, whether in freshwater or salt water, thanks to its waterproof housing and profiled that can withstand immersion up to 120 metres (400 feet).
In addition, it is equipped with a uSB optical interface which allows the data to be downloaded quickly, even when the recorder is wet or underwater, which facilitates the recovery measures.
In order to obtain accurate measurements of the temperature of the air in the open sun, a solar anti-radiation screen is required (either the RS1 solar anti-radiation screen required for assembly or the M-RSA solar anti-radiation screen pre-assembled).
THE'data recorder U22-001 is a tool affordable for the collection of high quality temperature data, suitable for aquatic environments, and compatible with software HOBOware Pro for configuration, graphical visualisation and analysis of recorded data.

Technical specifications:

- Quality research measures at an affordable price
- Waterproof up to 120 meters (400 feet)
- Reading data in less than 30 seconds via fast optical USB interface
- Compatible with HOBOware Pro software for configuration, graphics and analysis of the recorder

Recorder functionality:

- Operating range † 40° to 70°C (-40° to 158°F) in air, maximum sustained temperature of 50°C (122°F) in water

† Important: The plastic housing will become brittle at temperatures below -20°C.
If the recorder is deployed to a location where the temperature drops below -20°C, make sure that the recorder remains motionless and is not pulled or struck. Return the recorder to a temperature above -20 °C before handling it.

- Accuracy: ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F)
- Resolution: 0.02°C to 25°C (0.04°F to 77°F)
- Response time: (90%) 5 minutes in water, 12 minutes in air moving at 2 m/sec (typical)
- Stability (driving): 0.1°C (0.18°F) per year
- Real time clock: ± 1 minute per month 0° to 50°C (32° to 122°F )
- Battery: 2/3 AA, 3.6 V lithium, replaceable in factory ONLY
- Battery life (typical use): 6 years with a recording interval of 1 minute or more
- Memory (non-volatile): Memory of 64 Kb (approximately 42,000 12 bit temperatures) measurements)
- Weight: 42 g (1.5 oz)
- Dimensions: 3.0 cm (1.19 in) of maximum diameter, 11.4 cm (4.5 in) of length; 6.3 mm (0.25 inches) diameter mounting hole
- Wet materials: polypropylene housing, EPDM® O-rings, stainless steel retaining ring
- Flotability (fresh water): +13 g (0.5 oz.) in freshwater at 25°C (77°F); +17 g (0.6 oz.) with optional boot
- Waterproof: up to 120 m (400 ft)
- Shocks/falls: fall of 1.5 m (5 ft) between 0 °C and 70 °C (32 °F and 150 °F)
- Journaling interval: fixed or multiple rate logging intervals, with up to 8 intervals and user-defined logging times, recording intervals from 1 second to 18 hours.
Refer to the HOBOware software manual.
- Launch modes: Immediate start and delayed start
- Method of unloading: Unload during logging, Stop and unload
- Indication of battery: The battery voltage can be viewed in the status screen and possibly stored in the data file.
Low battery indication in the data file.
- NIST certificate available: for an additional fee
- Environmental index : IP68

Delivered with:

- HOBO U22-001 Water temperature Pro V2
- Communication window protection cap
