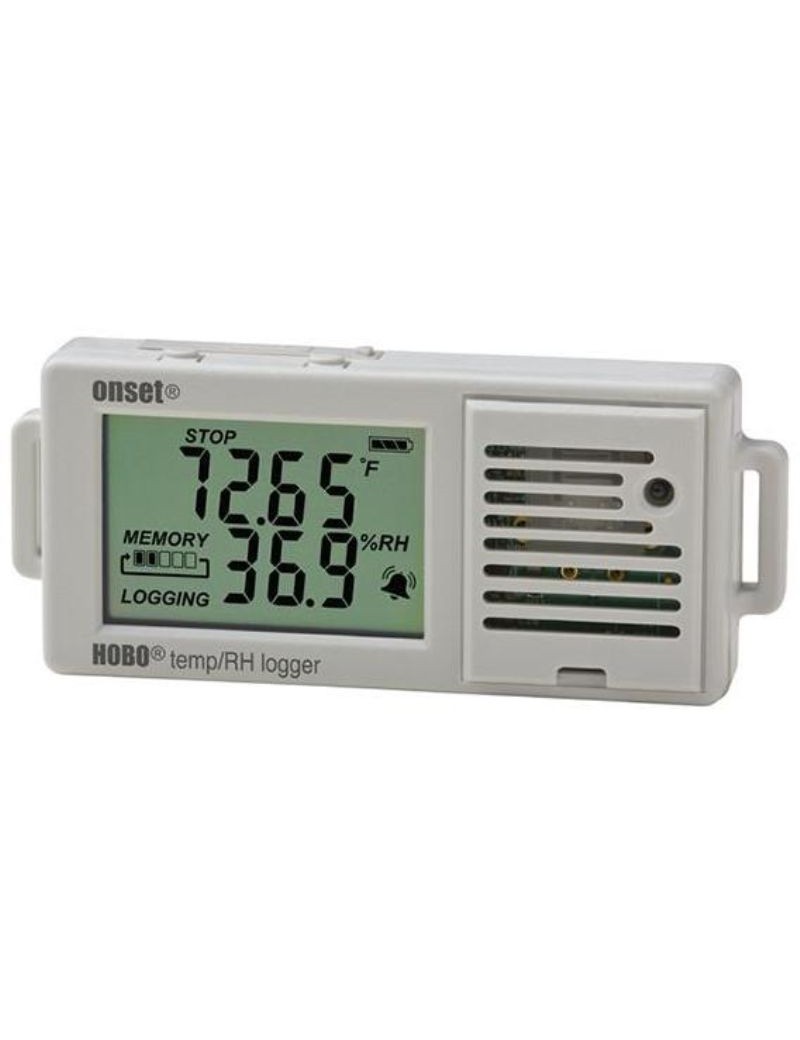

Temperature and Relative Humidity Recorder UX100-003

The 3.5% UX100-003 temperature and relative humidity recorder has integrated sensors to measure and record temperature and relative humidity (with an accuracy of 3.5%) in indoor environments.

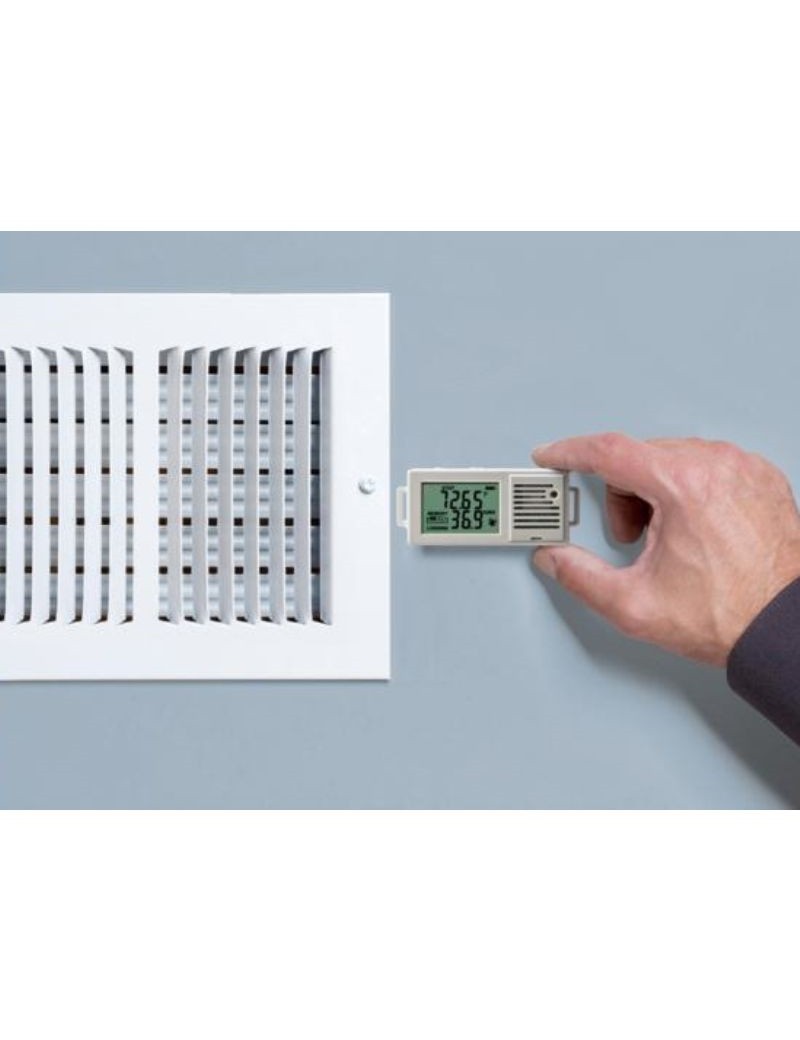

This recorder is ideal for monitoring the comfort of occupants in office buildings, monitoring food storage conditions in warehouses, recording temperature trends in server rooms and measuring moisture levels in museums.

Technical specifications:

- Easy to read LCD screen
- High memory capacity
- High and low visual alarm thresholds
- Speed logging and statistics
- User-replaceable relative humidity sensor
- Compatible with HOBOware and HOBOware Pro software for recorder configuration, graphical representation and analysis

Temperature sensor features:

- Range: -20° to 70°C (-4° to 158°F)
- Accuracy: ±0.21°C from 0° to 50°C (± 0.38°F from 32° to 122°F) see manual for tracing
- Resolution: 0.024°C at 25°C (0.04°F to 77°F) see manual for tracing
- Response time: 4 minutes in the air moving at 1 m/s (2.2 mph)
- Driver:

Features of HR sensor:

- Range: 15% to 95% (without condensation)
- Accuracy: ±3.5 % from 25 % to 85 % including hysteresis at 25 °C (77 °F) less than 25 % and greater than 85 % ± 5 % typical
- Resolution 0,07 % at 25 °C (77 °F) and 30 % RH
- Response time: 43 seconds at 90% in airflow of 1 m/s (2.2 mph)
- Driver:

 Recorder Features:

- Operating range of the recorder:
Record: -20° to 70°C (-4° to 158°F); 0 to 95 % HR (without condensation)
Launch/Read: 0° to 50°C (32° to 122°F) according to USB specification
- Log rate: 1 second at 18 hours, 12 minutes, 15 seconds
- Modes of logging: Fixed interval (normal), gust or statistics
- Memory modes: wrap when full or stop when full
- Start modes: immediate, push button, date and time or next interval
- Stop modes: when the memory is full, press the button or date and time
- Restart mode: push button
- Accuracy of the time: ±1 minute per month at 25°C (77°F)
- Power source: 1 3V CR2032 lithium battery and USB cable
- Battery life: 1 year, typical with a recording rate of 1 minute and a sampling interval of 15 seconds or more
- Memory: 128 KB (84,650 measurements, maximum)
- Download type: USB 2.0 interface
- Full memory download time: 20 seconds
- LCD:
The LCD screen is visible from 0° to 50°C (32° to 122°F)
The LCD screen can react slowly or turn off at temperatures outside this range
- Size: 3,66 x 8,48 x 1,52 cm (1,44 x 3,34 x 0,6").
- Weight: 30 g (1.06 oz)
- Environmental assessment: IP50

Contents of the box:

- Data recorder HOBO UX100-003 Temp/RH 3.5%
- Command Band
- Double-sided adhesive tape
- Self-adhesive strap
