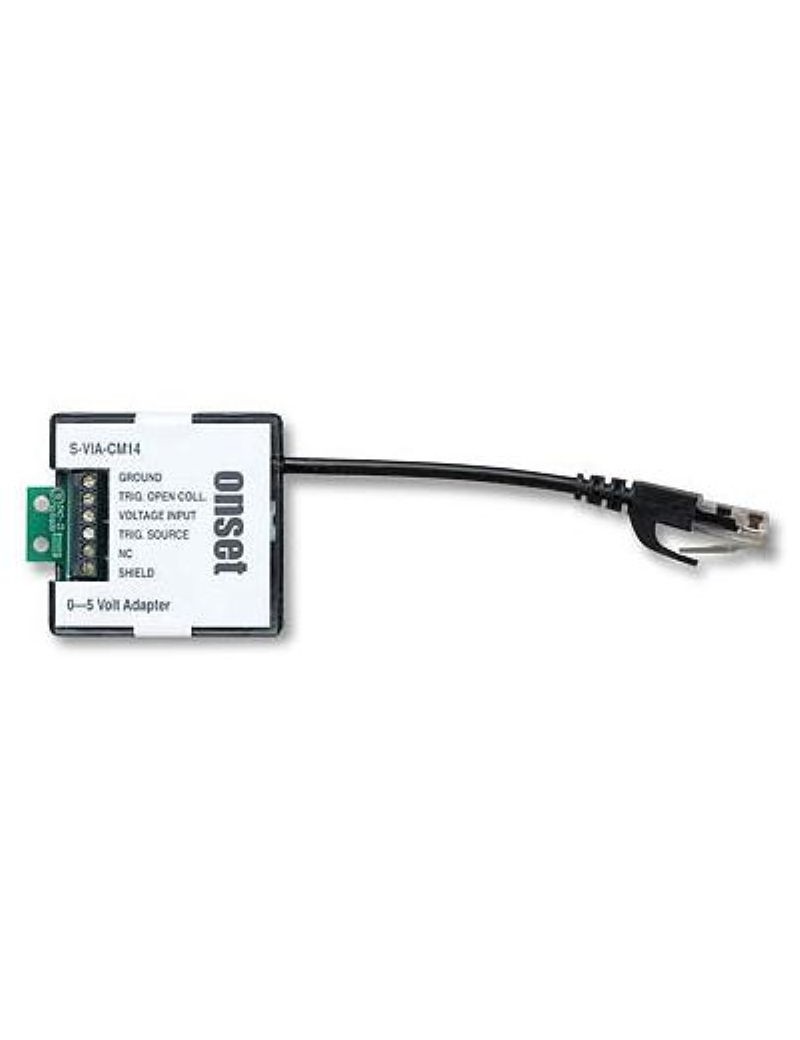

Smart voltage input cable 0 to 5 volts S-VIA-CM14
Write your review
The smart cable voltage input 0 to 5 volts S-VIA-CM14 allows the measurement of signals of 0 to 5 volts and has switched input to battery saving, of fdigital iltrage and one screw terminal for connection to sensors.
It is usually used for connect one sensor or a device that produces a output voltage in this range to a measuring or controlling device that can interpret this voltage.
It is useful for monitoring applications and control de industrial processes, of measurement de temperature, of pressure, of level or water flow,as well as in other areas where voltage measurement is necessary.
Important: use'outside requires the sensor to be in a waterproof housing.
€115.00
Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
The smart voltage input cable 0 to 5 volts S-VIA-CM14 interfaces with sensors providing signals 0-5 VDC to act as a smart sensor with data recorders compatible.
It has both input not switched and one switched input battery saving that extends the life of external batteries.
This is it adapter also provides signal to control the power supply of connected external sensors, while offering a digital filtering which improves the accuracy measurements with 32 readings/sample.
It is often used in monitoring applications and control of industrial processes, temperature, pressure, level or flow measurement, as well as in other areas where measurement of voltage is necessary.
Smart cable S-VIA-CM14 can be used with products of the "smart" range, which are industrial measuring and control devices with a integrated digital communication, this allows easy integration into broader supervisory and control systems.
It can be used with stations HOBO RX3000 and U30 but requires a Smart Sensor Consolidator Box (S-ADAPT-6) and one extension cable for use with HOBO USB Micro Station and HOBO MicroRX Station.
Technical specifications:
- 12 bit resolution
- Digital filtering improves measurement accuracy with 32 readings/sample
- the 4-20 mA adapter has a 60 Hz noise rejection
- Average measurement on the recording interval further improves accuracy
- Screw point for connection to sensors
- The HOBO RX3000 and U30 stations have room for two adapters
- The use with HOBO USB Micro Station and HOBO MicroRX Station requires an intelligent sensor consolidation housing (S-ADAPT-6) and an extension cable
- Represents a data input channel
Smart Cable Features:
- Measuring range: 0-5 V DC
- Accuracy: ±10 mV ±0.3% of reading (on the operating temperature range)
- Resolution: ±1,221 millivolts
- Entrance impedance: 1 megohms
- Open sensor trigger collector: maximum dissipation current: 115 mA; Maximum 30V
- Sensor trigger source: Voltage: 2.5 V ± 2.4 per cent; maximum current: 1 mA
- Trigger time
- Preheating time: 10.3 ms ±3 % (fixed)
- Measuring time: 2.4 ms ±3 per cent
- Cable length: 14 cm (5.5 inches)
- Ground connection: identical for adapters and PC interface
