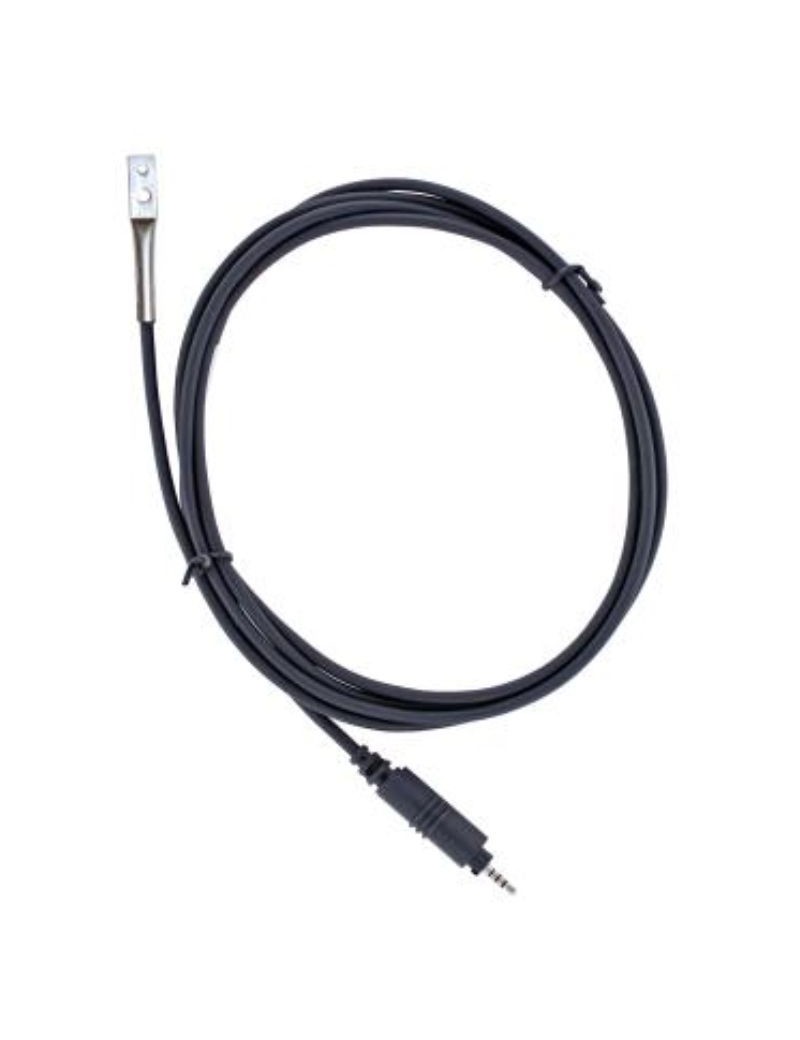

Temperature eyelet probe with 2.5 SD-TEMP-P-06 jack
Write your review
The temperature sensor SD-TEMP-P-06 has a eyelet probe 184 cm (6 feet) designed to be mounted on a pipe and measured with a accuracy of ±0.15°C the temperature room.
He is compatible with the multichannel data recorders HOBO MX1104 and MX1105 for further analysis or transmission to a real-time monitoring or control system.
With the technology of'self-description, it automatically communicates configuration information to the recorder, without any programming.
It is used in applications where monitoring and accurate recording of temperature changes are necessary in various areas such as'industryagriculture, the meteorology, the environmental research, the building management, etc.
€89.00
Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
Designed for use with multichannel data recorders HOBO MX1104 and MX1105, this temperature sensor, which is suitable for pipe mounting, offers integrated traction discharge, so that the probe is fixed at'recorder.
It has the self-description technology to communicate automatically the information configuration to the'recorder, without no programming or in-depth user configuration.
Technical specifications:
- Self-description technology for quick and easy configuration

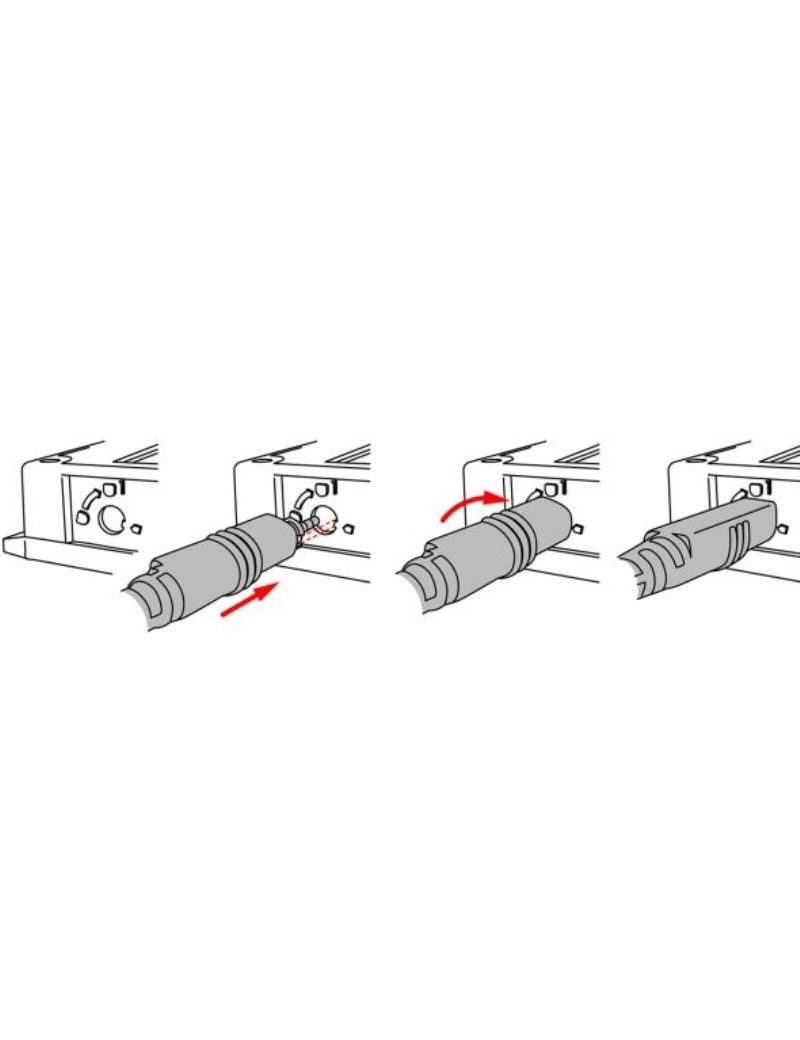

- Lock socket to make sure the sensor is connected and remains connected
- Measuring range of -40° and 100°C (-40° to 212°F)
- Accuracy of ±0.15°C from 0° to 70°C (±0.27°F from 32° to 158°F)
- Available in 1.84 m (6 ft)
- Faster response time
- Suitable for mounting on hose
Sensor Features:
- Measuring range: -40° to 100°C (-40° to 212°F)
- Accuracy: ±0.15°C from 0° to 50°C (±0.27°F from 32° to 122°F), insert probe at minimum 2.3 cm (0.9 inches), see trace A
- Resolution: 0.002° to 25°C (0.003° to 77°F)
- Drift: - Response time in air: typical 2 minutes at 90% in air moving at 1 m/s (2.2 mph)
- Response time on a pipe : typically twice as fast as the air/water/soil temperature sensor SD-TEMP-xx, usually less than 1 minute at 90%
- Sensor housing: copper sensor tip
- Dimensions of the probe: 0,9 x 5,8 cm (0,38 x 2,3 inches)
- Cable length: 1.8 m (6 ft)
SD-TEMP-P-06
1000 Items
