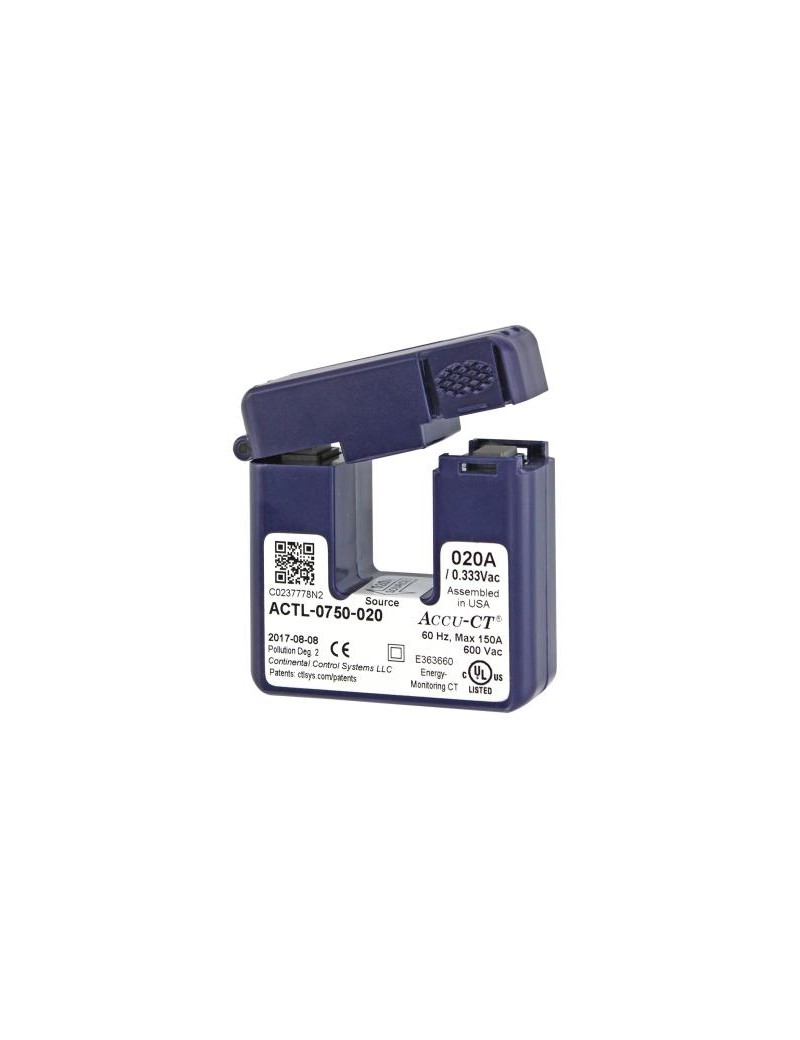

Current sensor 20A T-ACT-0750-020

The current sensor T-ACT-0750-020 de 20A offers a exceptional accuracy to the extent electric current, ensuring reliable and accurate results.
It is ideal for applications where precise measurement the current is crucial for safety and electrical system performance.
With a single opening and closing mechanismsplit core power transformer can be used with one hand, which facilitates its use, even in demanding working conditions or restricted spaces.
THE'20 mm window opening (0.78 inches) makes it easy to pass the driver through the transformer, eliminating the need to cut or disconnect the cable, which considerably reduces interruptions in normal operations.
The transformer is equipped with a integrated load strength and offers a 333 mVac voltage outlet at full scale nominal current, thus ensuring the safe and reliable operation of the device.
No need for short circuit block, this transformer requires the use of safety gloves, which enhances safety during installation and handling.
The sensor is multipurpose and is perfectly suitable for industrial electrical installationsenergy monitoring systemsenergy audits, as well as any other applications requiring precise measurement of electrical current.

Important:

See the product pages of the'data recorder to ensure that you have the appropriate interfaces (modules, adapter, etc.) to deploy this sensor.

Technical specifications:

- unprecedented linearity
- Opening of the 20 mm window (0.75 inches)
- The Accu-CT split core power transformer offers exceptional linearity and phase angle accuracy with a unique one-hand opening and closing mechanism.
- Safe: integrated load strength, 333 mV AC voltage output at nominal full-scale current, no short-circuit block required
- IEEE C57.13 and IEC 60044-1 accuracy: over the entire temperature range and up to 1% of rated current
- Exceptionally low phase angle error: essential for accurate power and energy measurements
- Compatible with gloves: easy to open and install with one hand while wearing safety gloves
- Approvals: UL recognized, CE marking, RoHS

Sensor Features:

- Accuracy: ±0.75% from 1% to 120% of nominal primary current
- Phase angle: ±0.5 degrees (30 minutes) from 1% to 120% of rated current
- Precision standards: IEEE C57.13 class 1.2 and IEC 60044-1 class 1.0
- Primary nominal value: 5 to 250 A, 600 Vca, 60 Hz nominal
- Output: 333.33 mVca at nominal current
- Operating temperature: -30°C to 55°C
- Sure: integrated load strength, no short-circuit block required, unless otherwise specified
- Standard cable length: 8 ft (2.4 m), 20 AWG
- Recognized UL, CE marking, RoHS
- Assembled in the United States: qualified according to the Buy American provision in the 2009 ARRA
- Dimensions:
Width : 2.38 inches
Height : 2.40 inches
Thickness : 0.90 inches
Fenêtre : 0.78 inches
