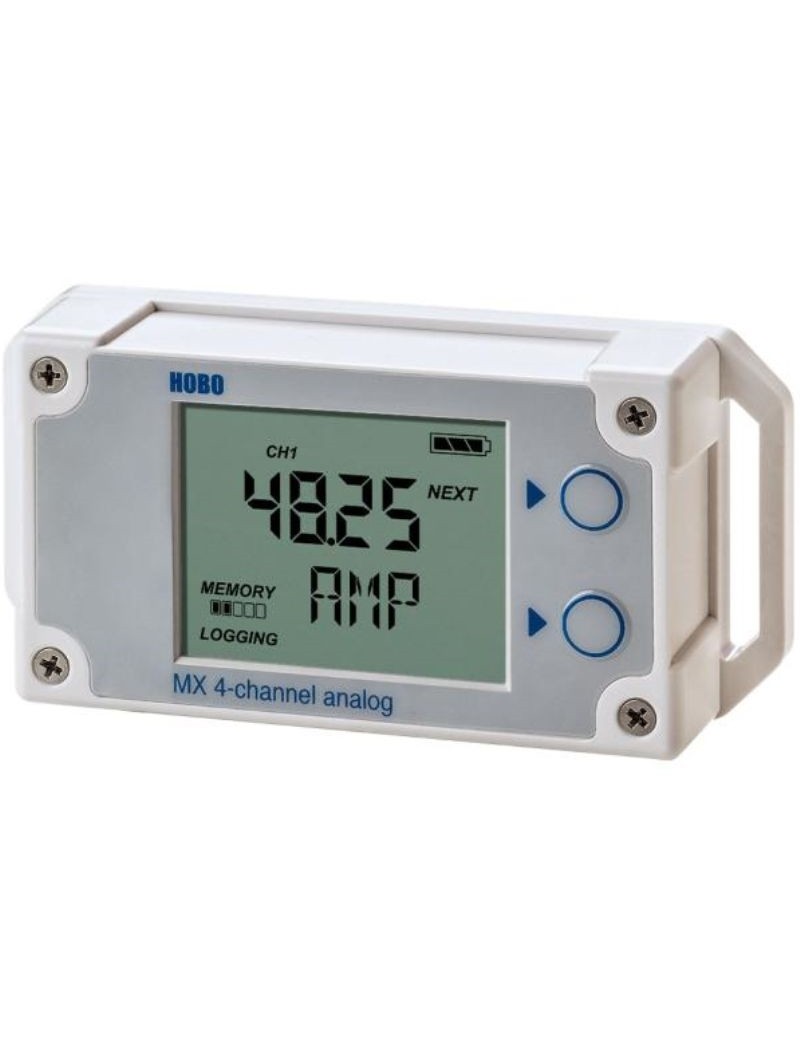

MX1105 Multichannel Wireless Analog Data Recorder

THE'data recorder analogue Bluetooth 4 channels MX1105 is designed for a variety of applications, such as energy audits, building commissioning studies, equipment planning, and much more.
Ideal for monitor and record it is important in a variety of situations, and it offers a bluetooth connectivity for easy access to your wireless data.
You can easily configure the data recorder using a mobile device or Windows computer.
Once configured, the recorder collects the data according to your needs, it can store up to 1.9 million measures, which allows deployments of long duration without needing to unload data frequently.
You can read the recorded data at any time using the HOBOconnect app on your mobile device or Windows computer if you are less than 100 feet the recorder.

Add the mX gateway for remote access to your data in the software HOBOlink based on cloud'Onset .

Technical specifications:

- Bluetooth communication for wireless data unloading
- 16-bit resolution for very precise measurements
- Stores 1.9 million measures for longer deployments between unloadings
- New autodescriptive sensors with smart configuration for quick deployment
- Compatible with existing sensors for a wide range of indoor monitoring
- Audible and visual alarms on LCD display warn you if a sensor is disconnected or if a reading exceeds defined thresholds

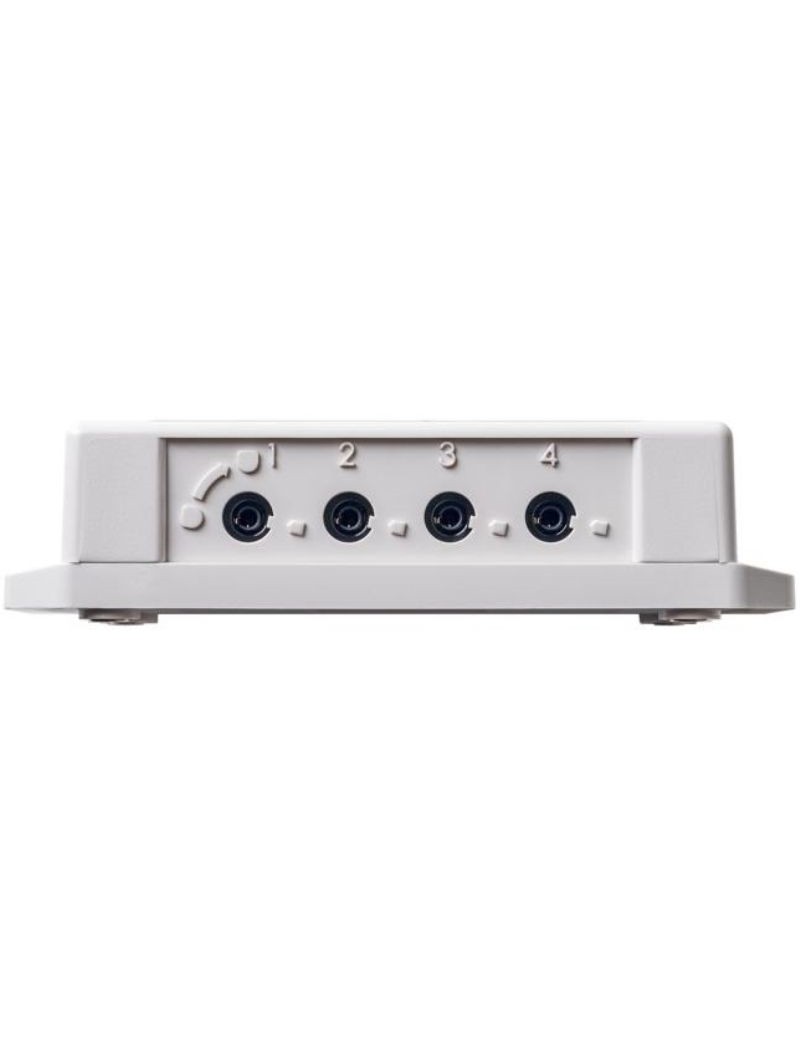

Features of the recorder with cable type:

- SD-MA-420 or CÂBLE-4-20mA:
Measuring range: 0 to 20.1 mA
Accuracy : ±0.001 mA ±0.2% of reading
Resolution : 0.3 μA

- SD-VOLT-2.5 or CABLE-2.5-STEREO:
Measuring range : 0 to 2.5 V
Accuracy : ±0.1 mV ±0.1 % of reading
Resolution 40 μV

- SD-VOLT-05 or CABLE-ADAP5:
Measuring range : 0 to 5.0 V
Accuracy : ±0.2 mV ±0.3 % of reading
Resolution : 80 μV

- SD-VOLT-10 or CÂBLE-ADAP10:
Measuring range : 0 to 5.0 V Accuracy : ±0.4 mV ±0.3 % of reading Resolution : 160 μV

- SD-VOLT-24 or CABLE-ADAP24:
Measurement range 0-10 V 0 to 24 V
Accuracy ±1.0 mV ±0.3 % of reading
Resolution : 384μV

Recorder Features:

- Operating range: -20° to 70°C (-4° to 158°F)
- Radio power: 1 mW (0 dBm)
- Transmission range: approximately 30.5 m (100 ft) of direct visibility
- Wireless data standard: Bluetooth low consumption (Bluetooth Smart)
- Registration rate: m1 second at 6 p.m
- Modes of logging: fixed interval (normal, statistical) or gust
- Memory modes: wrap when full or stop when full
- Start modes: immediate, push-button, date and time or next interval
- Stop modes: when the memory is full, press the button, date and time or after a specified recording period
- Restart mode: push button
- Accuracy of time: ±1 minute per month at 25°C (77°F)
- Battery type: 2 AAA 1.5 V alkaline batteries, replaceable by user
- Battery life:
1 year, typical with 1 minute recording interval and Bluetooth Always Turn on
2 years, typical with 1 minute recording interval and Bluetooth Always Temperatures between 0° and 50°C (32° and 122°F) are deactivated.
Faster statistical recording and sampling intervals, gust recording, continued connection to the application, excessive downloads and pagination can have an impact on battery life.
Memorandum: 4 MB (1.9 million measures, maximum)
- Full memory download time:
Approximately 4 to 15 minutes depending on mobile device
May take longer as the device is away from the recorder
- LCD screen:
The LCD screen is visible from 0° to 50°C (32° to 122°F)
The LCD screen can react slowly or turn off at temperatures outside this range
- Dimensions: 11,28 x 5,41 x 2,92 cm (4,44 x 2,13 x 1,15 inches)
- Weight: 123 g (4.34 ounces)
- Environmental assessment: IP54
