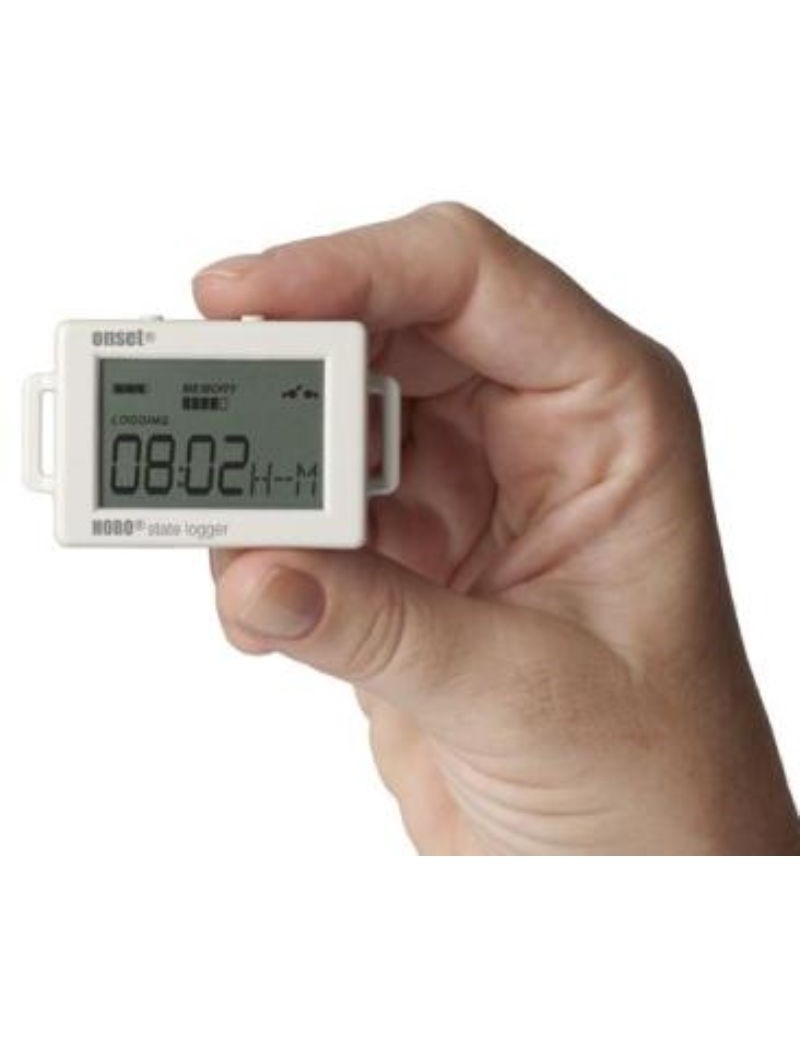

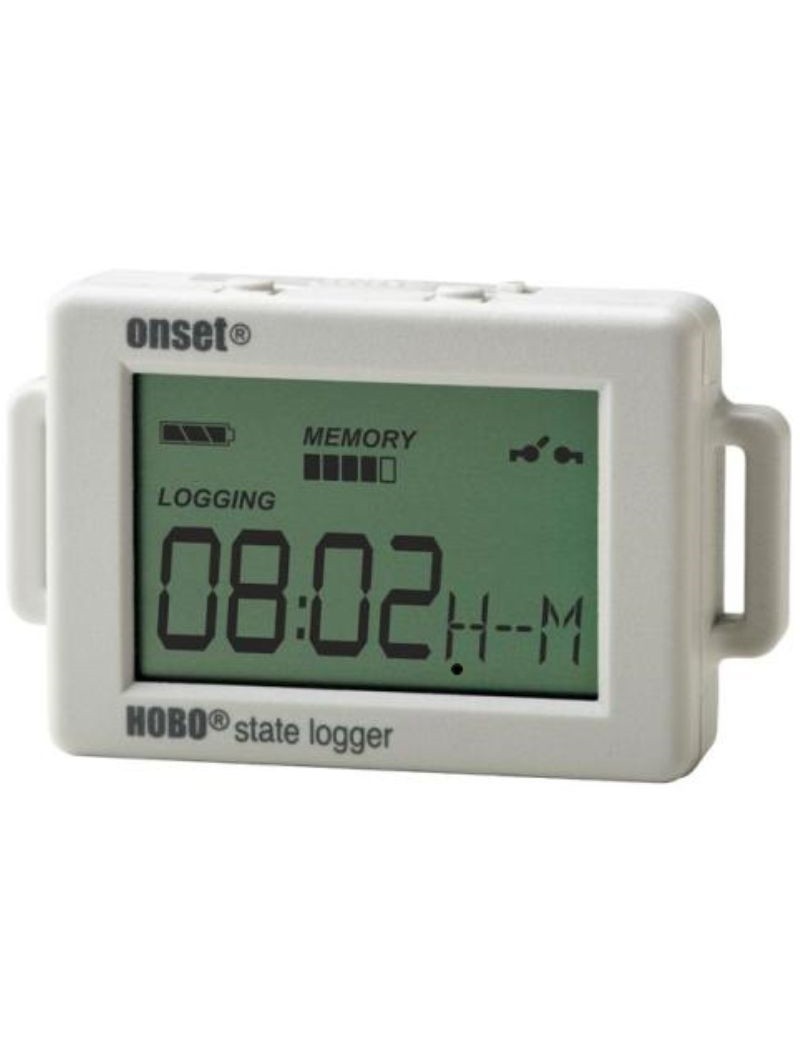

State recorder, electronic pulses and mechanical or electrical contacts UX90-001

The UX90-001 is one data recorder designed for monitor and record on status changes electronic impulses and contact closures mechanical or electrical from external detection devices.

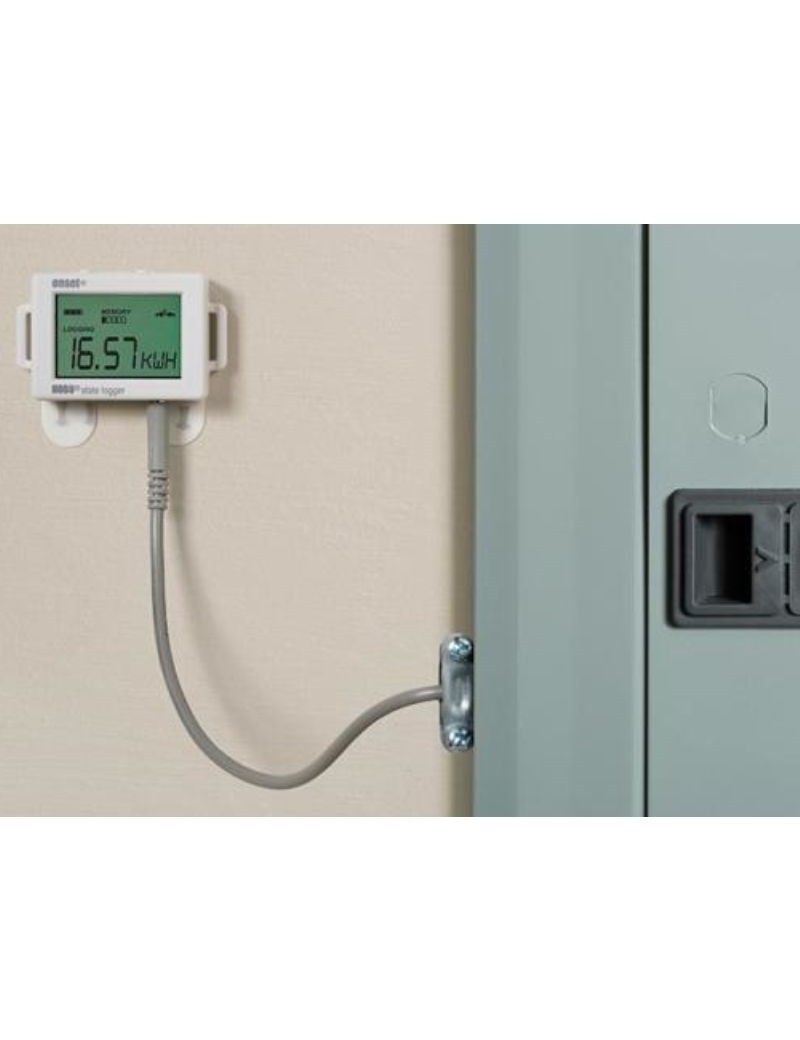

The data recorder can detect when a device changes from one state to another, for example, it can record when a door or window is opened or closed, thanks to a internal blade switch.
It may also record electronic impulses, which is useful for monitoring devices that generate electrical signals at each occurrence, as a water meter or'electricity.
In addition to the electronic impulses, it can record the mechanical contact closures it can therefore be used to monitor devices that close or open, such as switches valves, etc.
The UX90-001 is ideal for a variety of applications, including monitoring of energy consumption, monitoring the operation of mechanical equipment, and measuring the water flow and gas.
It can be used in various environments to collect important data.
To use UX90-001, you will need the software HOBOware Pro, and a uSB cable.
You can configure the recorder and download the collected data using this software but also create some graphics and analyses on recorded data.
The recorder is compatible with a wide range of external sensors, which means that you can associate it with specific sensors depending on your application, it makes it flexible adapted for various uses.

Technical specifications:

- A recorder with four recording modes
- An internal blade switch can be used to determine when a door or window is open or closed
- Compatible with a wide range of external sensors
- Compatible with HOBOware Pro software for recorder configuration, graphics and analysis
- Input cable included: It comes with an input cable of 2.5 mm, which makes it easy to connect to external devices you want to monitor

Internal sensor:

- Maximum condition, event, frequency of execution: 1 Hz
- Condition of the preferred switch: no magnet present (normally open)

External Entry:

- External contact input
- Electronic closing of semiconductor switch or logically controlled voltage output
- Range: 0 to 3 V DC (USB powered), 0 to 2.5 V DC (battery powered)
- Maximum pulse frequency: 50 Hz
- Maximum condition, event, frequency of execution: 1 Hz
- Impulse, event lock time: 0 to 1 second per 100 ms step
- Closure of the semiconductor switch:
Low entrance: High entrance: > 500 K
- Low internal Traction: 100KB
- Inlet impedance: static switch closing: 100 K

Recorder:

- Resolution:
Impulse: 1 pulse
Running time: 1 second
State and event: 1 state or event
- Recording rate: 1 second at 18 hours, 12 minutes, 15 seconds
- Memory modes: wrap when full or stop when full
- Start modes: immediate, push-button, date and time or next interval
- Stop modes: when the memory is full, press the button or the date and time
- Accuracy of time: ±1 minute per month at 25°C (77°F) (see route A)
- Power source: 1 battery with 3V CR2032 lithium and USB cable
- Battery life: 1 year, typical with recording intervals greater than 1 minute and normally open contacts
- Memory: 128 KB (84,650 measurements, maximum)
- Download type: USB 2.0 interface
- Full memory download time: 10 seconds for 128 KB
- Registration:
-20° to 70°C (-4° to 158°F)
0 to 95% HR (without condensation)
- Launch/reading: 0° to 50°C (32° to 122°F) according to USB specifications
- LCD screen:
The LCD screen is visible from : 0° to 50°C (32° to 122°F)
The LCD screen can react slowly or turn off at temperatures outside this range
- Size: 3,66 x 5,94 x 1,52 cm (1,44 x 2,34 x 0,6")
- Weight: 23g (0.81 ounce)
- Environmental assessment: IP50

Delivered with:

- HOBO state data recorder UX90-001x
- 2.5 mm input cable
- Command Band
- Double-sided adhesive tape
- Self-adhesive strap
- Magnet with 2 screws
