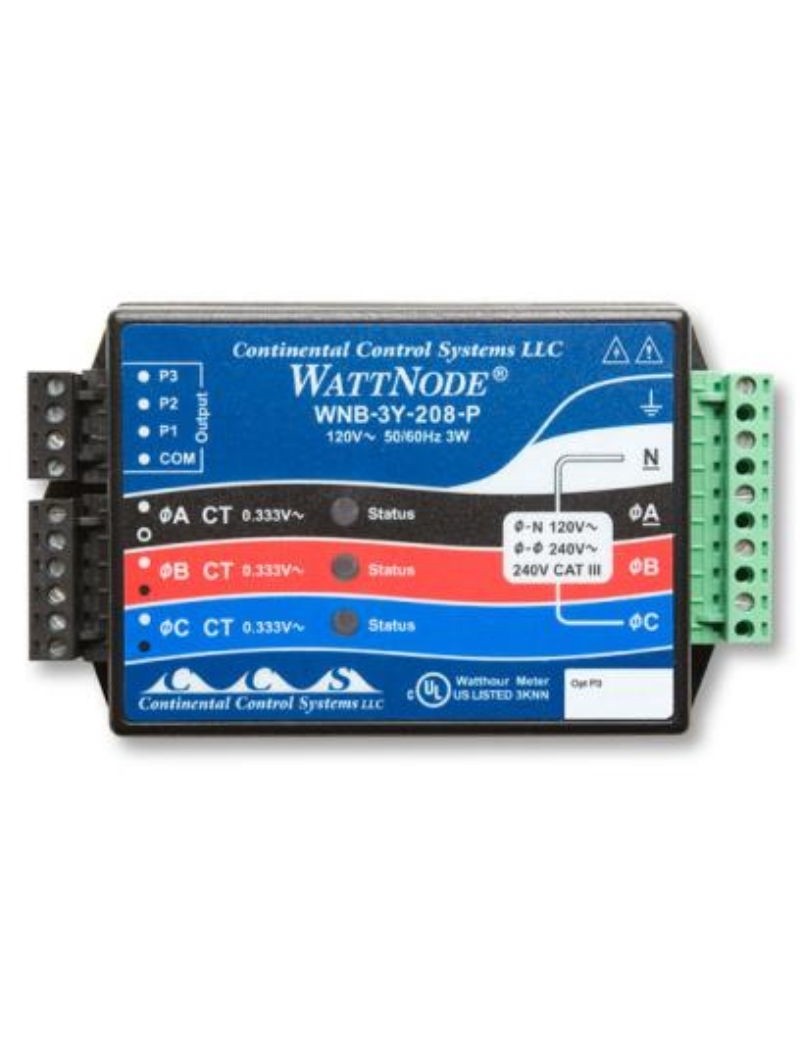

WattNode 208-240VAC 2 or 3 kWh Diversion Circuit Transducer Sensor - T-WNB-3Y-208-P
Write your review
The WattNode 208 is one transducer sensor electrical energy measurement that measures the electricity consumption in kWh on electrical circuits de 208 at 240 VAC with the ability to measure up to 3 circuits de electrical bypass.
The sensor works with transformers of ac Magnelab to provide specific measures even for charges with non-sine wave forms, and is designed for under counting, of net billing, of energy management and performance contracts.
It can be integrated into a monitoring system of the'electrical energy wider, such as the data node system HOBO.
€350.00
Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
The WattNode T-WNB-3Y-208-P is one transducer electric energy sensor designed to measure the energy consumption en kilowatt hours on electrical circuits de 208 to 240 VAC, with the ability to measure several bypass circuits.
It works in conjunction with AC transformers Magnelab and can be integrated into a electrical energy monitoring system wider, such as the data node system HOBO.
This sensor is designed to be used with a range of alternative voltage (VAC) from 208 to 240 volts, it can therefore be used in electrical systems operating within this voltage range.
It can measure the'electrical energy on 2 or 3 circuits it is ideal to monitor the energy consumption of several loads or electrical appliances.
This is sensor can be used with a pulse input adapter or pulse input port of a HOBO data node, it can be integrated into a monitoring system for the collection of data in real time on the energy consumption.
The WattNode is capable of accurately measuring the actual kilowatt hours (Kilowatthours) RMS ), even for electrical charges having non-sine wave forms.
Technical specifications:
- Measure up to 3 separate bypass circuits simultaneously, reducing complexity and costs
- Use with a wide range of power transformers (sold separately); nominal values from 5 to 1500 amperes
- Accurate measurement of several single phase configurations or each phase of three phase configurations
- Easy to install and cable
- Individual pulse outputs for each circuit, compatible with pulse input recorder models
- Small size: can be installed in existing service panels or junction boxes
- Diagnostic LED: confirms the correct installation for all phases
- Power supply: no external power supply required
- Detachable terminals: easy to install and remove
Sensor Features:
- Star configuration ranges:
120, 208, 240 Volts CA - Neutral required
1 phase 2 threads 120 V (with neutral)
1 phase 3 wires 120 V/240 V
3 phases 4 wires 120 V/208 V
- Ranking : FCC Class A
- Operation of voltage range: ±20% of nominal frequency 60 Hz
- TC input: 0-0.5 VCA in operation, 3 VCA maximum
- Accuracy: ±0.45% of reading + 0.05 % FS to 25th harmonic
(depending on the TC used and the precision of line variation may be between 1.5% and 4% of reading)
- Case: impact resistant ABS plastic, UL-approved
- Connectors: UL, recognized CUL, removable screw terminals (14 AWG), 600 V
- Operating temperature range: -30 to 60 °C (-22 to 140 °F)
- Operating humidity range: 0 to 90% RH, without condensation
- Dimensions: 8.5 cm x 14.3 cm x 3.8 cm (3.3" x 5.6" x 1.5")
- Weight: 295 g (10.4 oz)
- Number of data channels: 3
Note: To download the Continental Control Systems LLC manual, click here.
