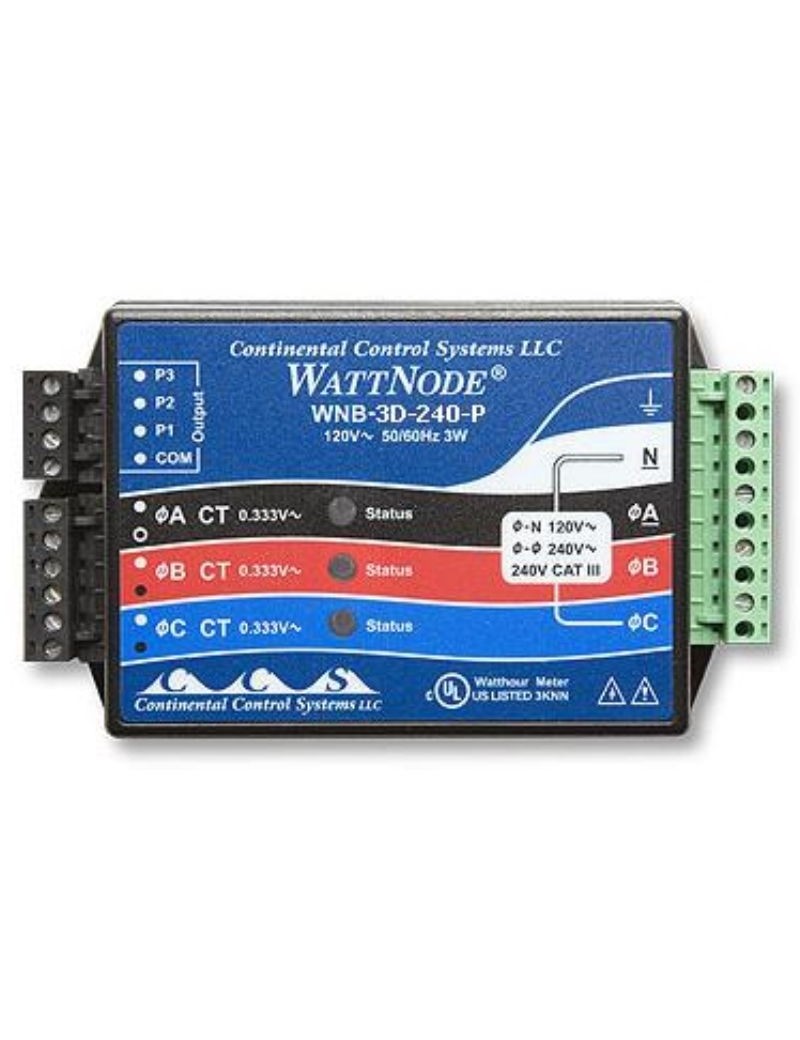

Delta/Wye kWh three-phase transducer sensor WattNode 208/240 VAC - T-WNB-3D-240

The three-phase Delta/Wye kWh transducer sensor WattNode 208/240 VAC provides a precise measurement and low cost to meet your application needs sub-counting, of net billing, of energy management and performance contracts.
This is transducer kWh to delta connection WattNode works with AC transformers Magnelab and a pulse input adapter to provide kilowatt hours RMS actual of'energy use, even for loads with forms of'non-sine waves.
Since these sensors are directly connected to the line, they should only be used by qualified personnel.
This model supports a connection Three-phase Delta de 208/240 VAC.
The Wattnode is designed to measure the'electrical energy used in different types of applications, it can measure the'energy consumption en kilowatt hours (kWh), which is essential for energy management and billing.

It is used for monitor and measure electric energy consumption in specific electrical installations, which is useful for cost-sharing, the energy management and monitoring of consumption.

Wattnode can also be used in net billing with its ability to bidirectional counting which means that it can measure both the consumption and production of electrical energy, which is important for production plants'renewable energy like the solar panels or wind farms.

It allows monitoring and'optimize energy consumption, which is essential for reducing energy costs and minimizing energy consumption'environmental impact.

It can also be used to check whether energy performance contracts are respected by accurately measuring energy consumption.

With its configuration multipurpose, it can measure 1 to 3 phases in various configurations 2, 3 or 4 wires, which makes it suitable for a variety of electrical systems.

It works with ac current transformers Magnelab and one pulse input adapter to provide specific measures, even for charges with non-sine wave formss.

He is easy to install and cable, this allows easy integration into various electrical installations.

Technical specifications:

- Measure 1, 2 or 3 phases in 2, 3 or 4 wire configurations
- Use with a wide choice of CT (sold separately); nominal values from 5 to 1500 amperes
- Accurate measurement of single phase, biphase or three phase configurations
- Easy to install and cable
- Pulse output: compatible with pulse input recorder models
- Small size: can be installed in existing service panels or junction boxes
- Diagnostic LED: confirms the correct installation for all phases
- Two-way counting: net counting for solar and wind photovoltaic production with a single meter
- Determination of frequency variators
- Power supply: no external power supply required
- Detachable terminals: easy to install and remove
- UL, CUL certified: designed and tested for safety and use throughout North America
- CE marking: can be installed throughout the EU

Sensor Features:

- Operation: voltage range: ± 20% of nominal value
- Frequency: 60 Hz
- CT input: 0-0.5 VCA in operation, 3 VCA maximum
- Connectors: UL, CSA recognized, removable screw terminals (14 AWG), 600 V
- Operating temperature range: -30 to 60 °C (-22 to 140 °F)
- Operating humidity range: 0-90% HR, without condensation
- Dimensions: 8.5 cm x 14.3 cm x 3.8 cm (3.3" x 5.6" x 1.5")
- Weight: 295 g (10.4 oz)
- Number of data channels: 2

To download the Continental Control Systems LLC manual, click here .

Delta or Wye configuration ranges: 208, 480 Volt AC:

- 1 phase 2 threads 208 V (no neutral)
- 1 phase 2 threads 240 V (no neutral)
- Monophased 3 son 120V/240V
- Three-phase three-wire 208 V (no neutral)
- 3-phase 4-wire 120V/208V
- Accuracy: ±0,45 % of reading + 0,05 % FS up to 25th harmonic
(depending on the CT used and the precision of the line variation, the accuracy can be between 1.5% and 4% of the reading)
