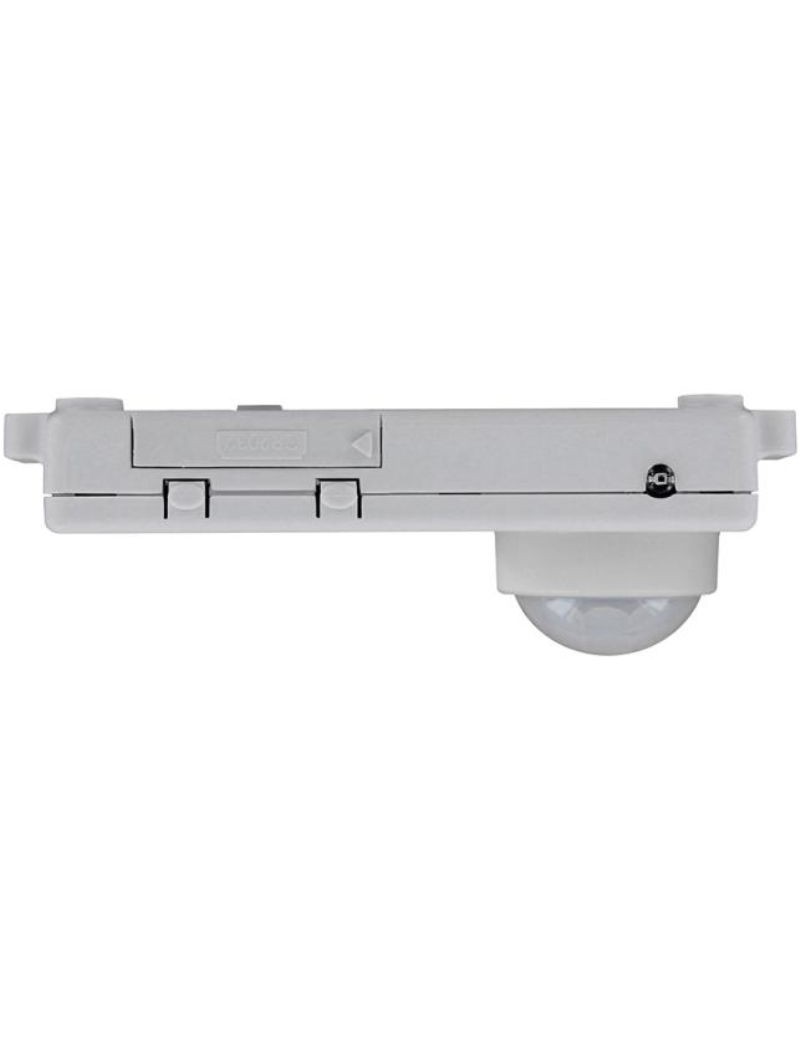

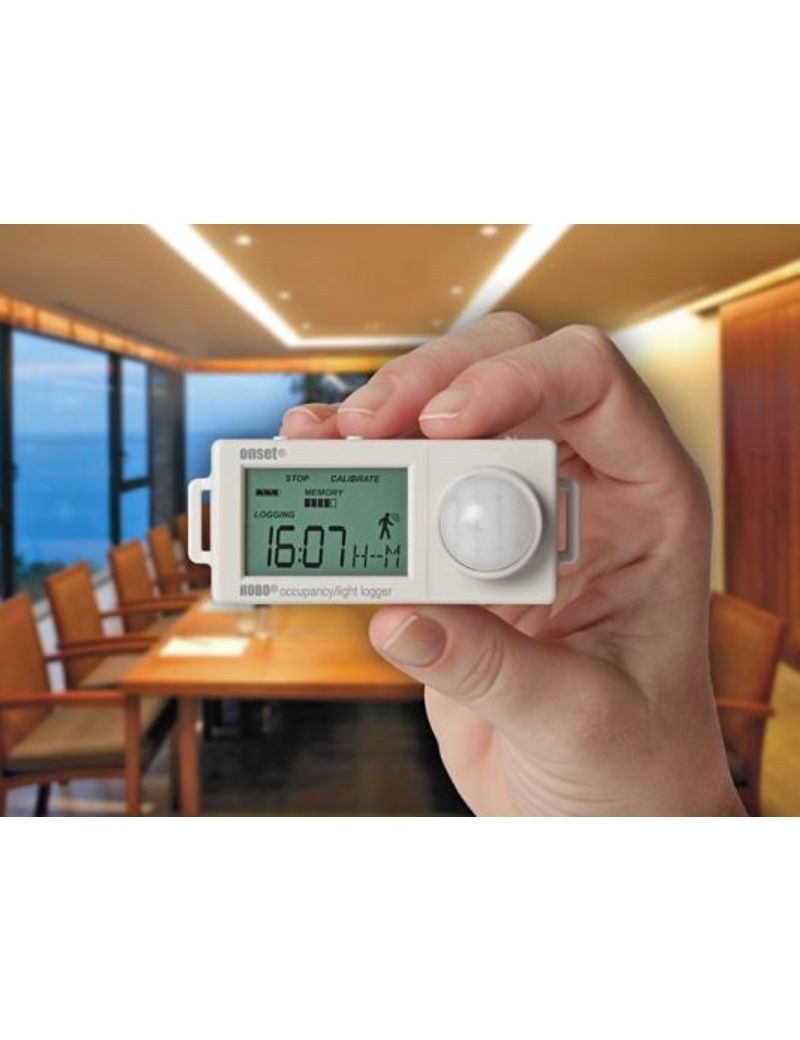

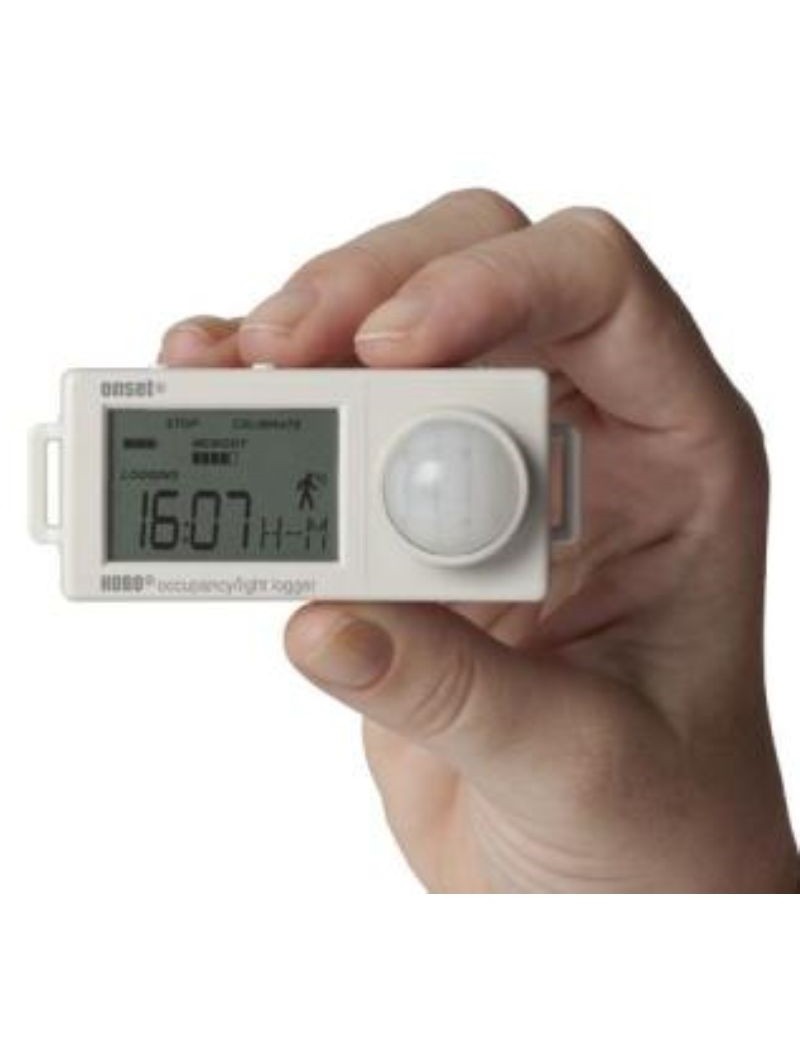

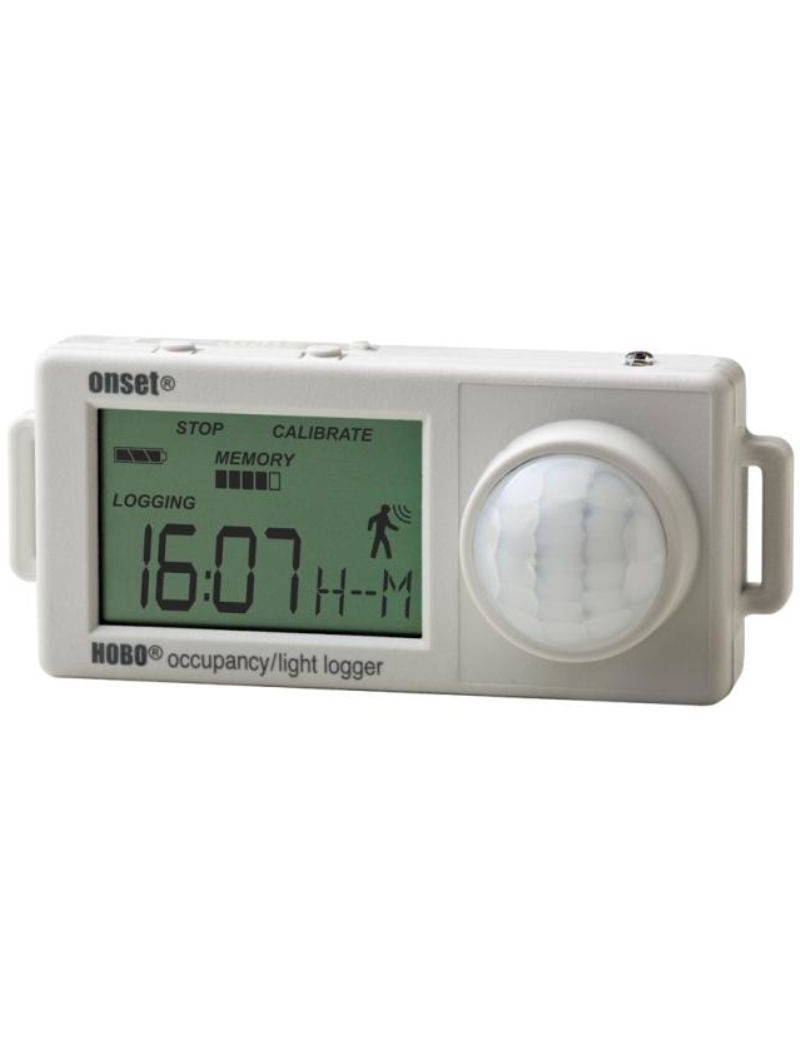

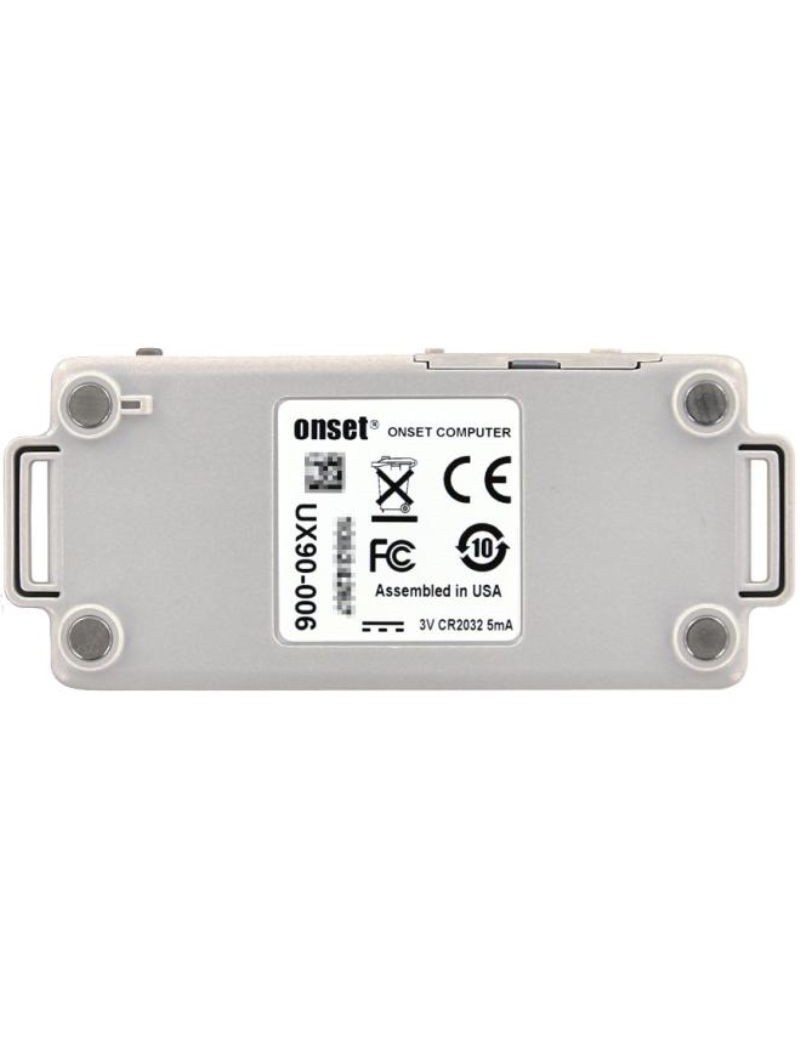

Presence recorder and light ON/OFF UX90-006

THE'data recorder UX90-006 HOBO Presence/Light is a device designed to monitor the'occupation of parts and variations in interior lighting in order to identify patterns of occupation, to assess the energy consumption and identify potential savings.
THE'recorder uses sensors to detect presence of persons in a room, it is useful to understand how spaces are used and for optimize space management according to the'actual occupation.
The recorder is able to monitor the occupation in a radius up to 12 metres, which allows it to cover relatively large areas.
The unit is equipped with a automatic calibration function thresholds ON/OFF which guarantees reliable readings by automatically determining the activation thresholds and deactivation for detect presence.
THE'integrated LCD screen displays the signal strength, which allows users to correctly position the recorder to ensure a data collection precise.
In order to ensure even more precise measures, it is recommended that accessory de light duct with the recorder, this helps to eliminate the effects of ambient light which could influence lighting measures.
Its large memory capacity of 128 Kb is capable of recording up to 84 650 measurements.
The recorder can be configured and data can be analysed using the software HOBOware Pro, it allows view data in the form graphics and'conduct analyses to draw conclusions on the'use of spaces and energy management.
In summary, the'UX90-006 is a data recorder versatile which allows monitor room occupancy and interior lighting changes, which can be valuable for the energy management and optimization of the use of spaces in various environments such as offices commercial buildings or industrial installations.

Technical specifications:

- Measure room occupancy up to 12 meters
- Self calibration of ON and OFF thresholds guarantees reliable readings
- The LCD display displays the signal strength, allowing correct placement of the recorder
- Highly recommended light duct accessory eliminates effects of ambient light to ensure the most accurate readings
- Compatible with software HOBOware Pro for configuration, graphical representation and analysis of the recorder
- This data recorder works in an indoor environment.
- The UX90-006 data recorder supports the following measures: Light on/off and Occupancy

Occupancy sensor features:

- Detection range: maximum 12 m (39.4 ft)
- Detection performance: 102° (±51°) horizontally, 92° (±46°) Vertical
- Detection zones: 92

Features of the light sensor:

- Light threshold: > 65 lux
- Type of light: LED, CFL, fluorescent, HID, incandescent, natural

Recorder Features:

- Accuracy of time: ±1 minute per month at 25°C (77°F)
- Battery life: 1 year of typical use
- Memory: 128 KB (84,650 measurements, maximum)

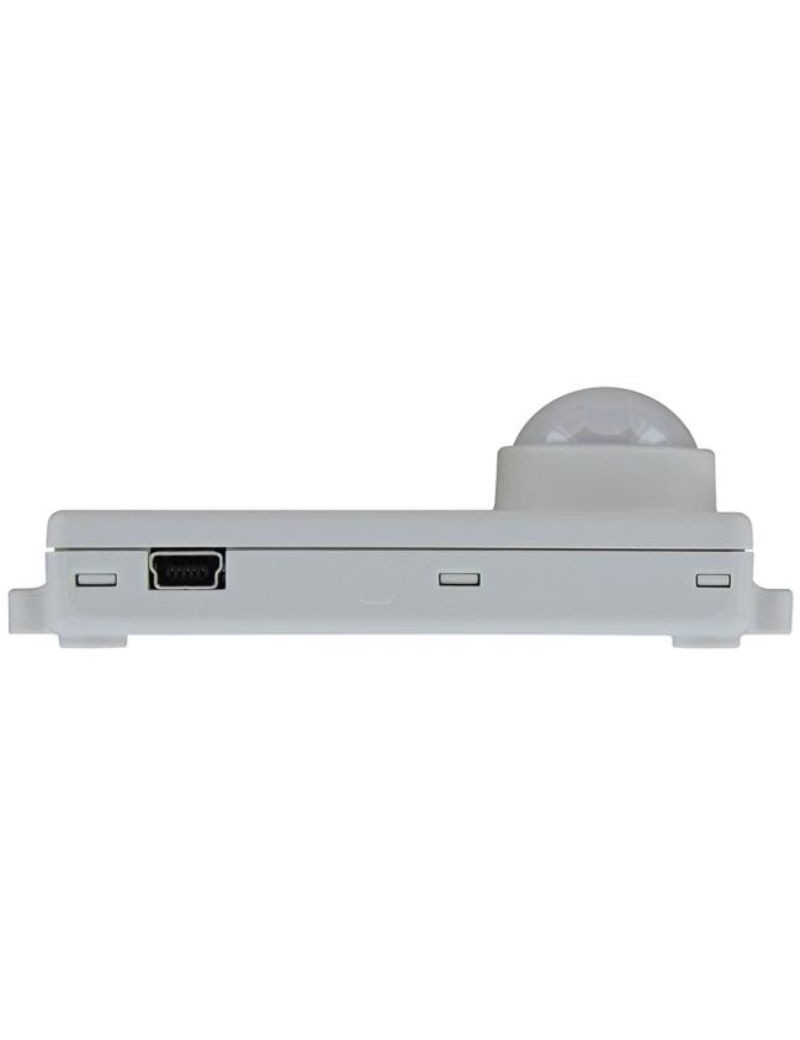

- Download type: USB 2.0 interface
- Download time: 10 seconds for 128 KB
- Operating range of the recorder:
Record: 20° to 70°C (-4° to 158°F), 0 to 95 % RH (without condensation)
Launch / play : 0° to 50°C (32° to 122°F) according to the USB specification
- Scope of the presence sensor: 20° to 60°C (-4° to 140°F); 15 to 85 % HR (without condensation)
- ACL: LCD display is visible from : 0° to 50°C (32° to 122°F)
The LCD screen can react slowly or become empty at temperatures outside this range
- Size: 3,66 x 8,48 x 2,87 cm (1,44 x 3,34 x 1,13 inches)
- Weight: 30 g (1.06 ounces)
- Environmental rating: IP50

Delivered with:

- Occupancy/light data recorder HOBO UX90-006
- Command Band
- Double-sided adhesive tape
- Self-catching strap
