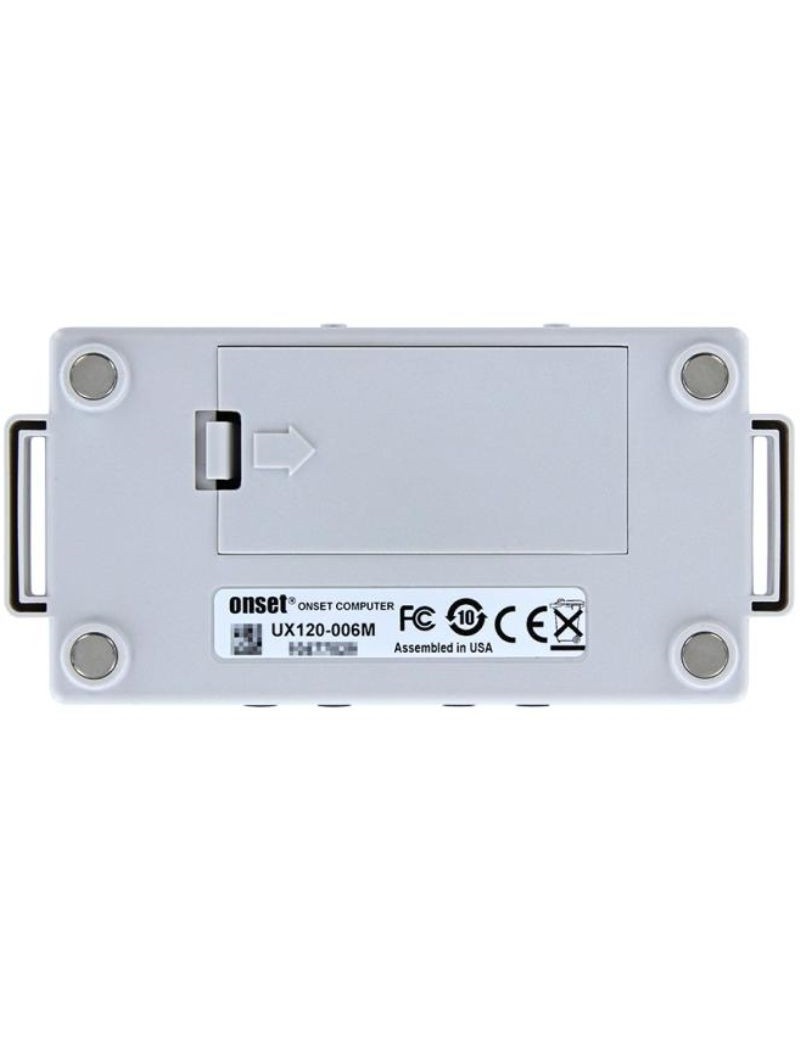

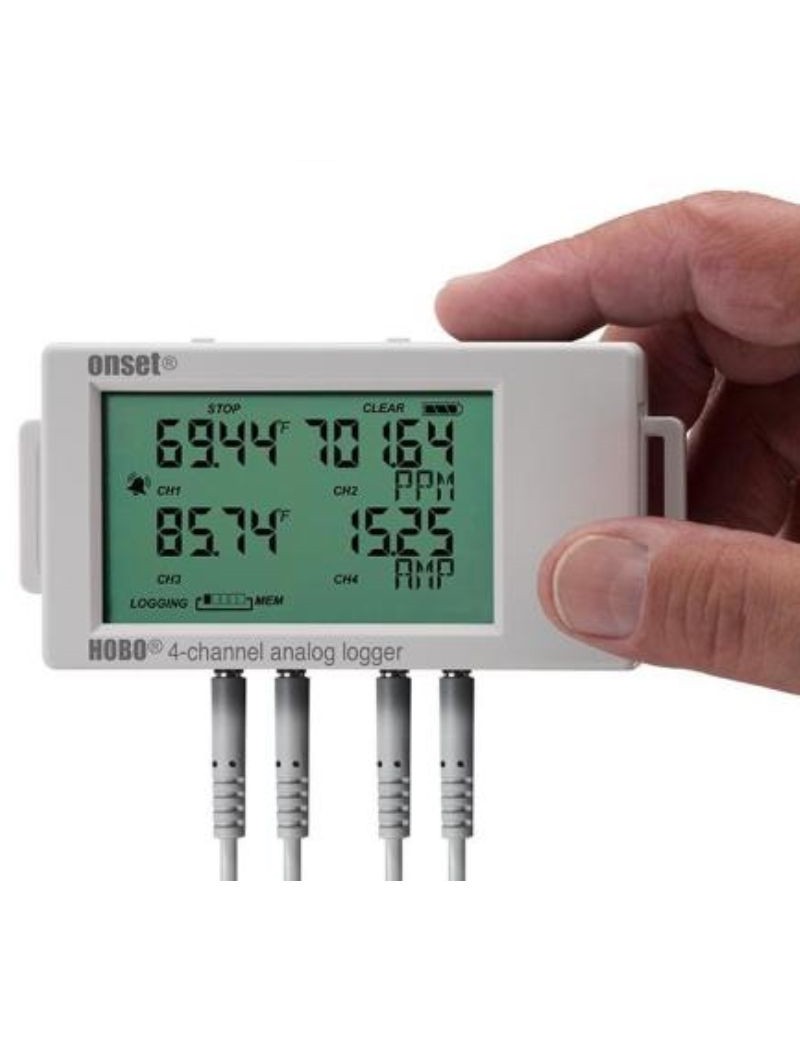

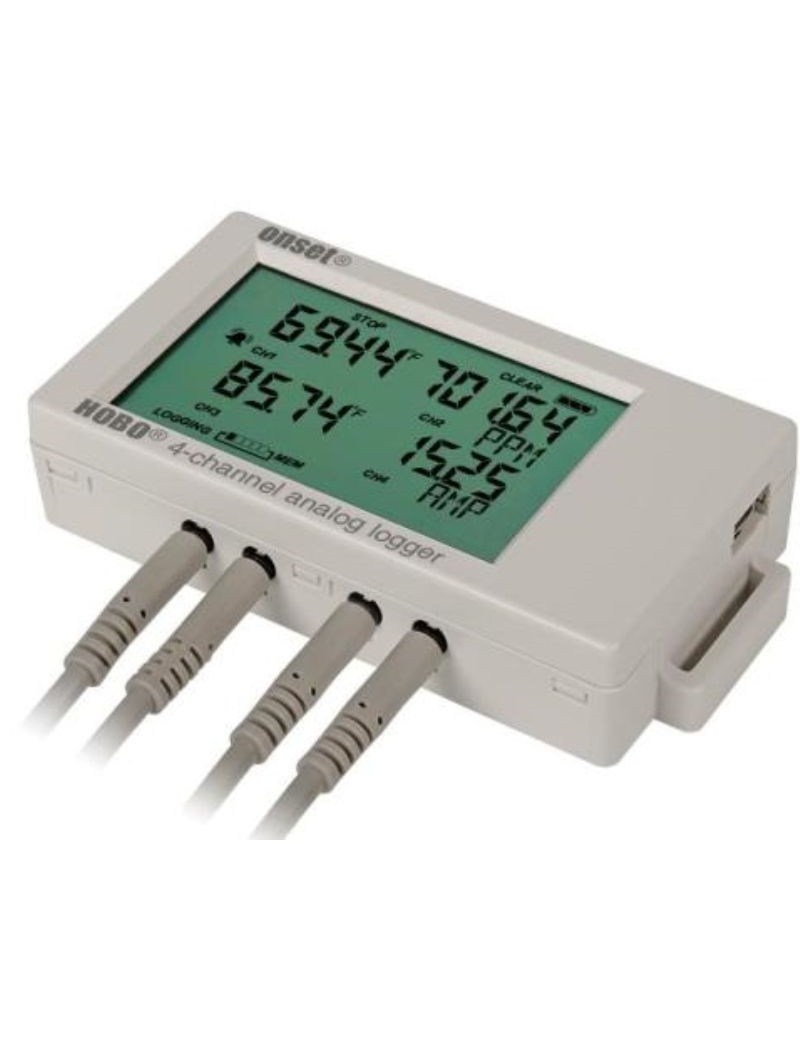

4 channel analog recorder UX120-006M

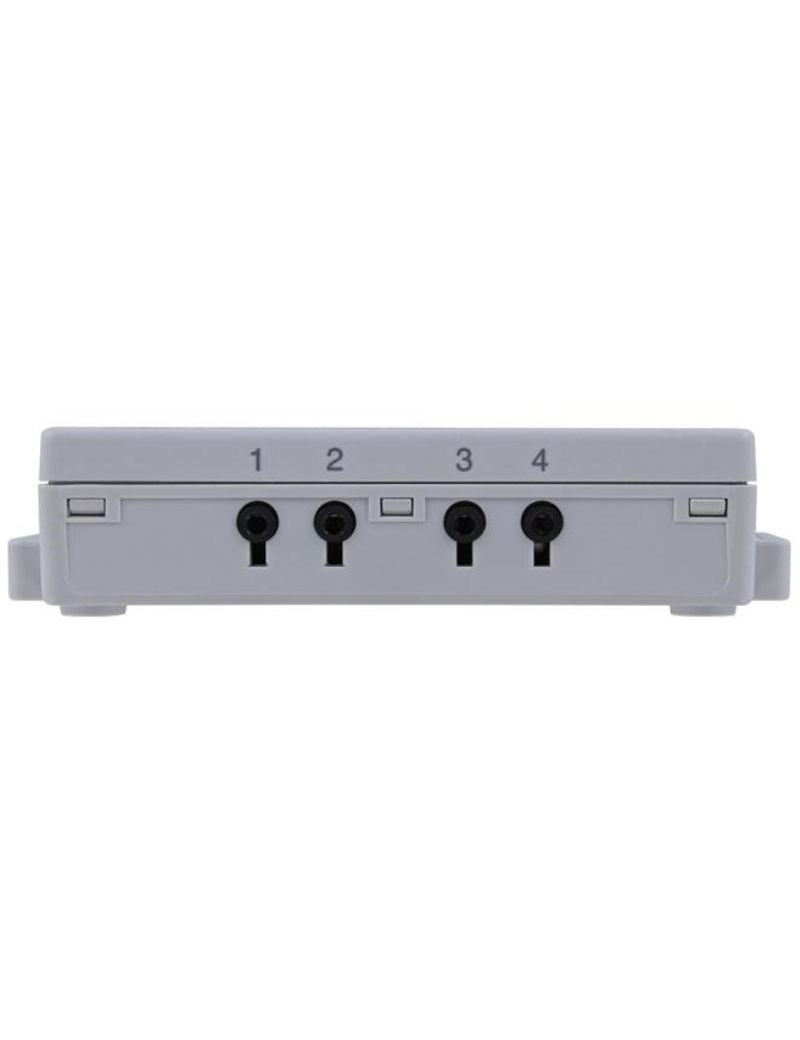

THE'data recorder to lCD screen high performance UX120-006M, supports up to four external sensors to measure and record parameters such as temperature current tensions and third party sensors.
It has a real time display and offers effective data management through storage capacity generous and advanced software compatibility.

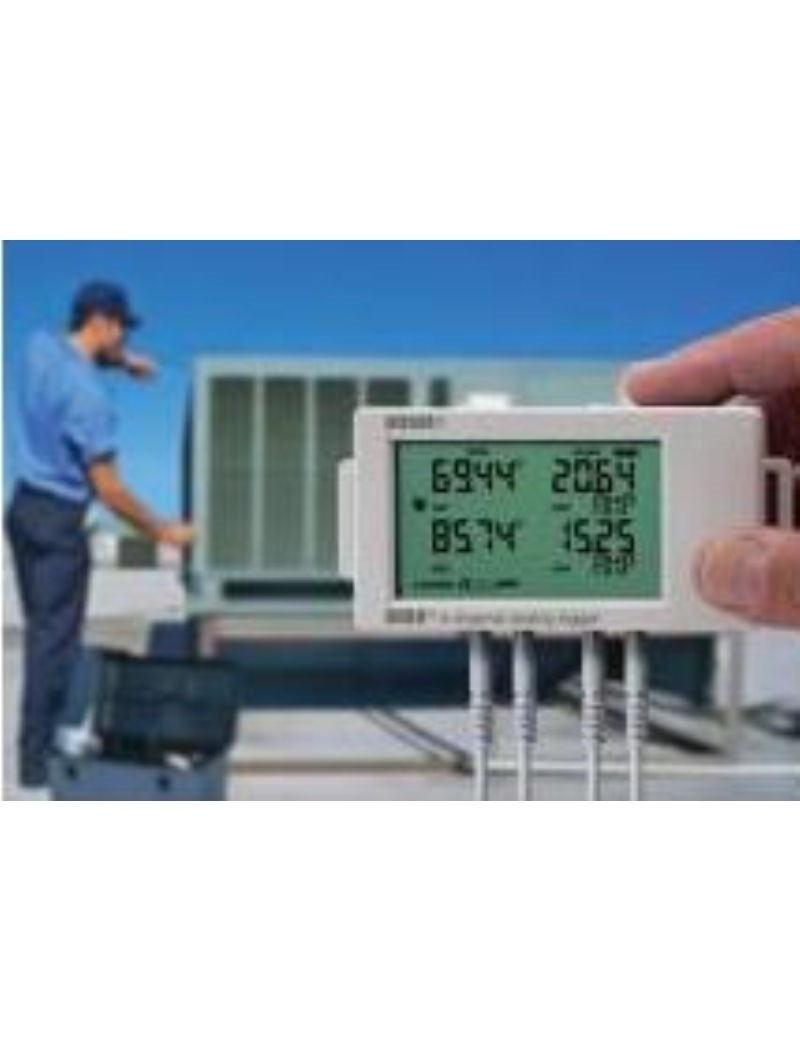

This recorder is ideal for energy audits commissioning of buildings, equipment planning, etc.

Technical specifications:

- Twice the accuracy of previous models with a 16-bit resolution
- Flexible support for a wide range of external sensors
- LCD screen confirms recorder operation and displays measurement data in near real time
- Provides minimum, maximum, average and standard deviation recording options
- On-screen alarms warn you when a sensor reading exceeds defined thresholds
- Stores 1.9 million measures for longer deployments between unloadings
- Compatible with HOBOware Pro software for recorder configuration, graphics and analysis

Functionality of the recorder with cable:

- Measurement range:
4-20 mA (with CABLE-4-20MA) 0 to 20.1 mA
0 to 2.5 V (with CABLE-2.5-STEREO )
0 to 5 V (with CABLE-ADAP5 )
0 to 10 V (with CABLE-ADAP10 )
0 to 24 V (with CABLE-ADAP24 )
- Accuracy:
4-20 mA ±0.001 mA ±0.2% of reading (with CÂBLE-4-20MA )
±0.1 mV ±0.1 % of reading (with CÂBLE-2,5-STEREO)
±0.2 mV ±0.3% of reading (with CABLE-ADAP5 )
±0.4 mV ±0.3% of reading (with CABLE-ADAP10)
±1.0 mV ±0.3% of reading (with CABLE-ADAP24)
- Resolution:
0.3 μA 4-20 mA (with CABLE-4-20MA )
40 μV (with CABLE-2,5-STEREO)
80 μV (with CABLE-ADAP5 )
160 μV (with CABLE-ADAP10 )
384 μV (with CABLE-ADAP10) CÂBLE-ADAP24 )

Recorder functionality:

- Operating range: -20° to 70°C (-4° to 158°F), 0 to 95 % RH (without condensation)
- Launch/reading: 0° to 50°C (32° to 122°F) according to USB specifications
- Recording rate: 1 second at 18 hours, 12 minutes, 15 seconds
- Recording modes: Normal, gust or statistics
- Memory modes: In loop when full or stop when full
- Start modes: Immediate, push button, date and time or next interval
- Stop modes: When memory is full, pushbutton or date and time
- Restart mode: push button
- Accuracy of time: ±1 minute per month at 25°C (77°F), see route A
- Battery life: 1 year, typical with a recording frequency of 1 minute and a sampling interval of 15 seconds or more
- Battery type: Two 1.5 V AAA alkaline batteries, replaceable by user
- Memory: 4 MB (1.9 million measurements, maximum)

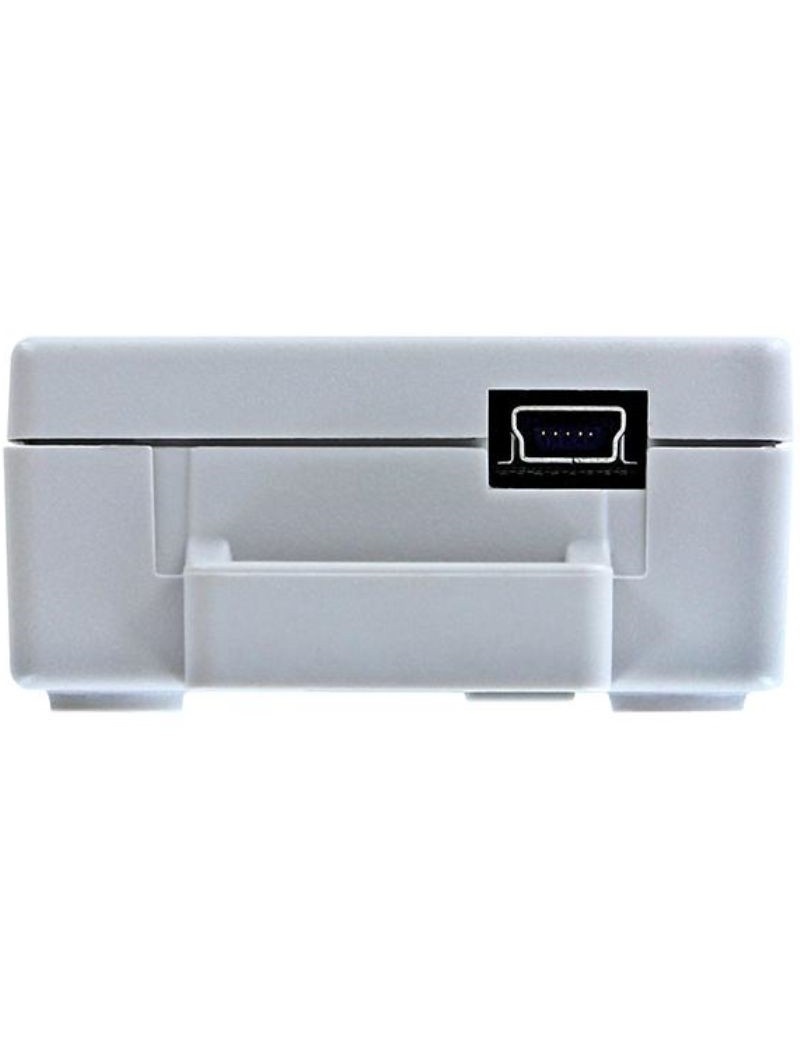

- Download type : USB 2.0 interface
- Full memory download duration: about 1.5 minutes
- LCD: The LCD screen is visible from 0° to 50°C (32° to 122°F); the LCD screen can react slowly or turn off at temperatures outside this range.
- Size: 10,8 x 5,41 x 2,54 cm (4,25 x 2,13 x 1 (p.)
- Weight: 107.5 g (3.79 oz)
- Environmental index : IP50

Delivered with:

- Analog 4-channel data recorder HOBO UX120-006M
- Command Band
- Double-sided adhesive tape
- Self-catching strap
- Two AAA 1.5 V alkaline batteries
