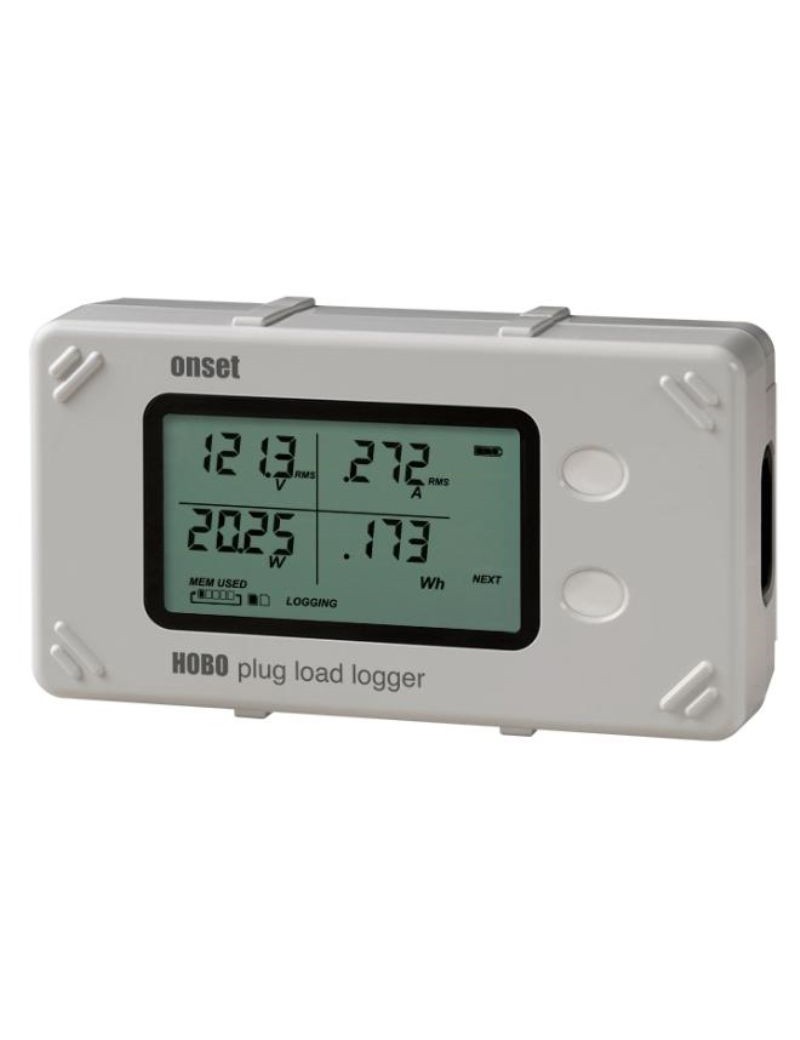

Power consumption recorder US UX120-018 socket

The energy consumption recorder US take UX120-018 is a data recorder de high precision, easy to deploy which measures and records the electricity consumption and energy of the take 120 V from office equipment vending machines and other devices.
These devices can simply be connected to the recorder, and it will record all key power parameters.
This recorder uL certified offers measurement accuracy of 0.5 per cent with one 1 watt measurement resolution, making it an ideal choice for building audits where detailed energy consumption data are required.
The robust housing is designed to withstand the rigors of real manipulation, offering reliable performance despite shocks, falls and use under offices.

Technical specifications:

- No electrician required
- Simply plug the device that needs to be monitored
- A measurement accuracy of 0.5% allows for more reliable charge energy data
- The "meter mode" provides instant visualization of the real-time load variables
- Provides timed and totaled load data for detailed energy analysis
- Large memory allows faster recording intervals for more complete handling load profiles
- The backup battery ensures that recorded data remains intact in the event of a power failure or charge failure

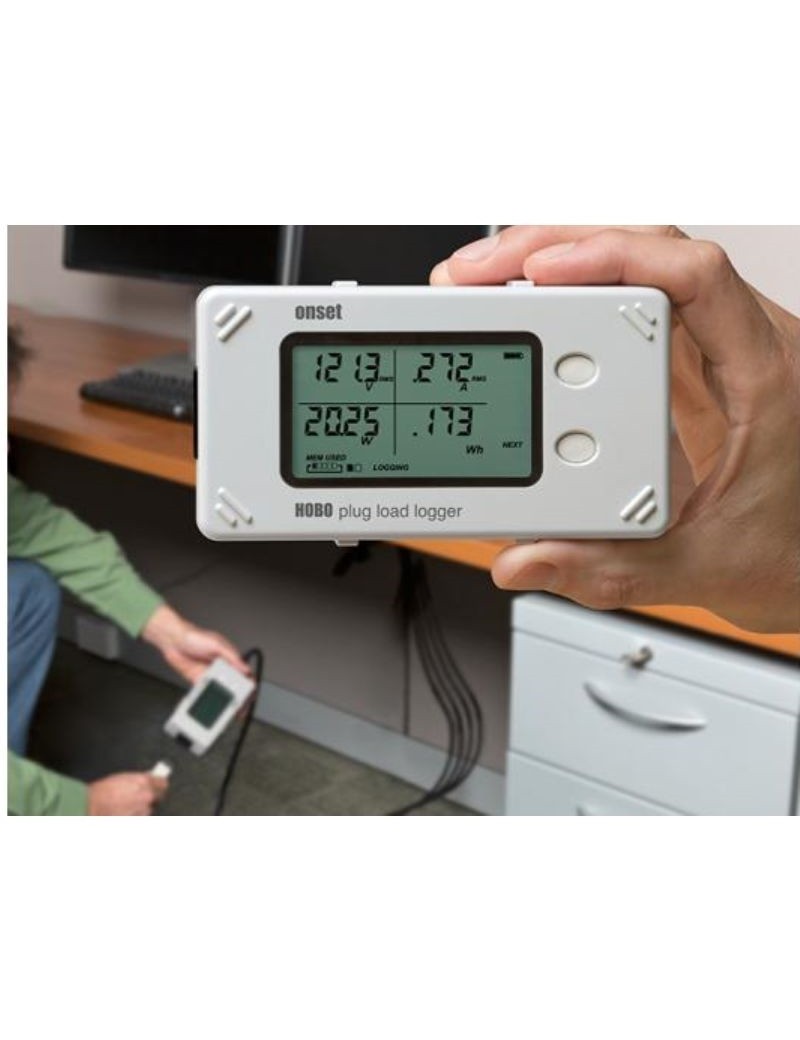

- Complete LCD screen provides visual diagnostics for easy deployment

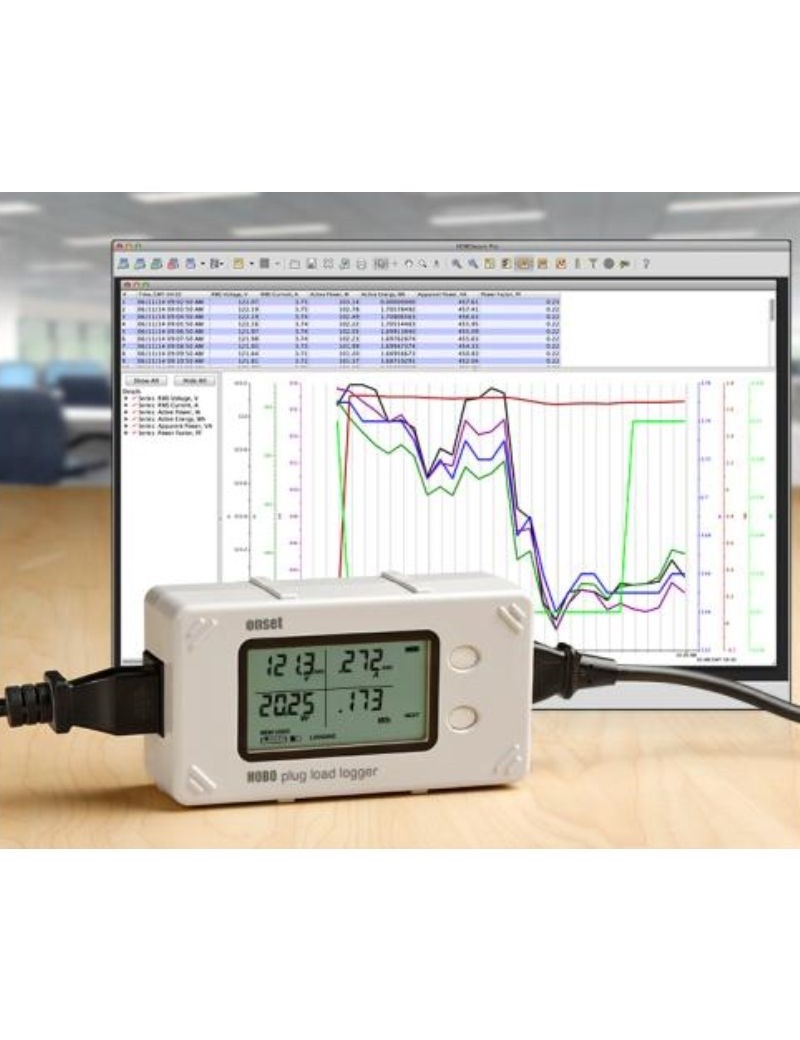

- Compatible with HOBOware and HOBOware Pro software for recorder configuration, graphics and analysis
- Use indoors only
- Category of insulation 2
- Maximum current: 15 amperes

Note: The UX120-018 recorder is intended for use on 15 AMP circuits (NEMA 5-15P) with a running voltage of 120 V AC ±10% at 50/60 Hz and a maximum power of 1,800 W.

Recorder Features:

Maximum current 15 amperes:

- Effective voltage accuracy: 0.5 % up to 14 A continuously; up to 1.0% out of 14 A when the monitored equipment is at a 100 % service cycle
- Current RMS accuracy: 0.5% up to 14 A continuously; up to 1.0% out of 14 A when the monitored equipment is at a 100 % service cycle
- Accuracy of active power: 0.5 % up to 14 A continuously; up to 1.0% out of 14 A when the monitored equipment is at a 100 % service cycle
- Accuracy of active energy: 0.5% up to 14 A continuously; up to 1.0% out of 14 A when the monitored equipment is at a 100 % service cycle
- Accuracy of the power factor: ±0.02
- Drive: Up to 0.5% typical in 1 year
- Resolution:
Volts, effective 10mV
Ambers, effective 0.1 mA
Active power 10 mW up to 1 watt of loads at 120 VCA
Active Energy 10mW
Apparent power 10 mVA
Power factor 0.01 PF
- Operating environment: Recording: 5° to 40°C (41° to 104°F); 0 to 95% RH (uncondensed), up to 2,000 m (6,562 ft) altitude
- Operating modes: Meter or logging when launching with HOBOware
- Recording rate: 1 second at 18 hours, 12 minutes, 15 seconds
- Statistical sampling rate: 60 Hz or 16.67 mS in single cycle
- Memory Modes: Wrap when full or stop when full
- Start modes: Immediate, push button, date and time or next interval
- Stop modes: When memory is full, press the button or date and time
- Reboot mode: Push button
- Accuracy of time: ±1 minute per month at 25°C (77°F), see route A
- Power source: Power supply with an AC power cord of 0.92 m (3 ft) or two AAA 1.5 V alkaline batteries, replaceable by the user
- Battery life:
2 years with power supply
6 months battery only (no power supply) with a recording rate of 1 minute or more, operating at 25°C (77°F)
- Memory: 4 MB (1.4 million measurements, maximum)
- Download type : USB 2.0 interface
- Full memory download time: Approximately 1.5 minutes
- LCD screen:
The LCD screen is visible from 0° to 50°C (32° to 122°F)
The LCD screen can react slowly or turn off at temperatures outside this range
- Size: 13,97 x 7,62 x 4,75 cm (5,5 x 3 x 1,87 inches)
- Weight: 230,8 g (8.14 ounces)
- Waterproof: IP50
- Calibration: This device has been calibrated using equipment that has been tested according to ANSI C12.20 0.5%

Contents of the box:

- Data recorder with HOBO UX120-018 plug
- Main power cord
