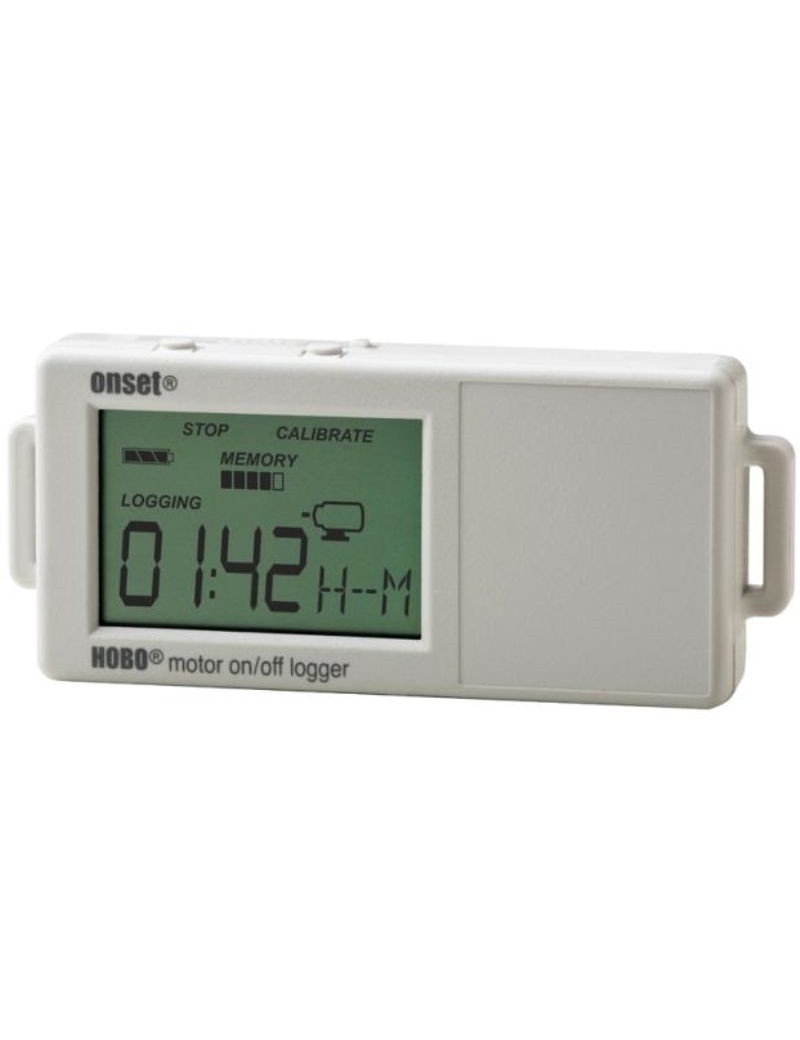

Engine on/off recorder UX90-004

THE'data recorder on/off engine UX90-004 is a device designed to monitor and record operating conditions and stoppage of an engine, whether using its internal sensor in one magnetic field CA or by capturing mechanical dry contact closures from external detection devices.
THE'recorder is able to detect status changes an engine, i.e. when it is turned on (on) or off (off).
It can do so in two ways: by using its own internal sensor in a magnetic field CA or by connecting to external detection devices that provide dry contact signals when the engine starts or stops.

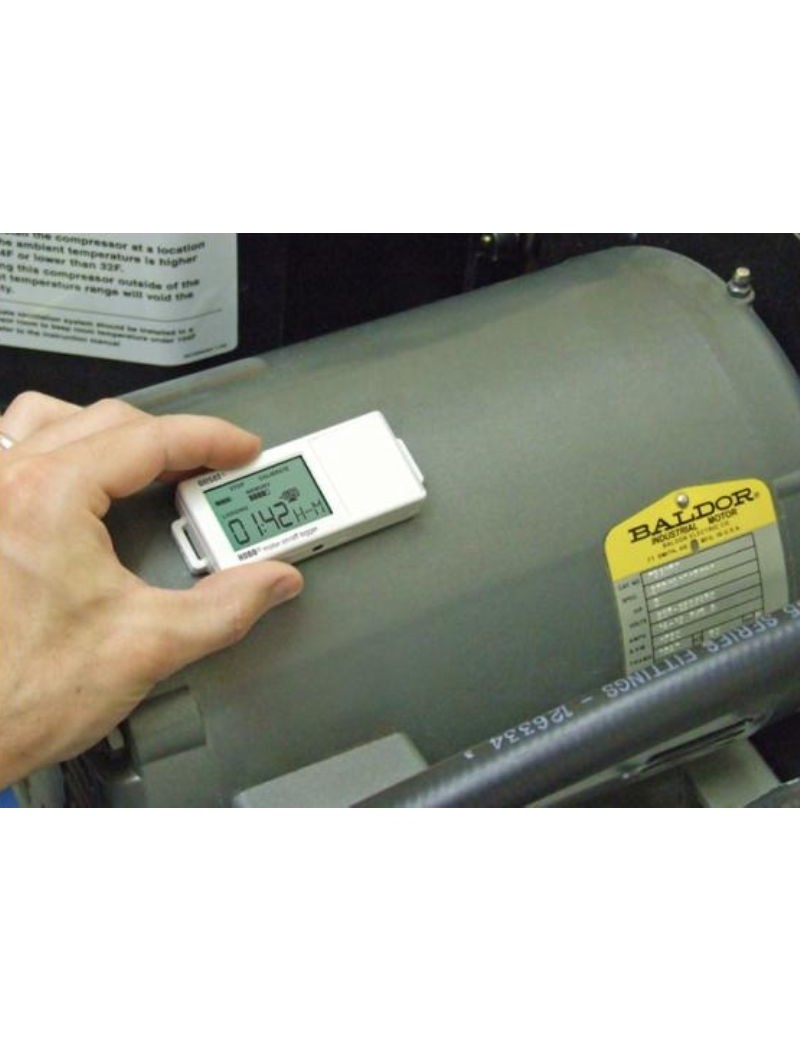

THE'UX90-004 is particularly suitable for monitoring use and duration of operations of the engines, pumps, compressors and others industrial equipment operating in cycles of on/off.
It is equipped with two internal sensors specially designed for a better sensitivity the detection of well protected engines, thus ensuring the collection of precise data.
The recorder also has a external input which can be used to measure mechanical contact closures, which is useful when the signal strength is low, ensuring accurate capture of on/off events.
The device has a automatic calibration function which automatically determines the detection thresholds ON and OFF, thus ensuring reliability of readings.
UX90-004 can be configured and data can be analyzed using software HOBOware Pro and HOBOware Pro on USB Drive, which offer features for configuration of the recorder, as well as tools to create graphics and carry out analyses data collected.

Technical specifications:

- Both internal motor sensors offer better sensitivity for well protected engines
- External input to measure mechanical contact closures when signal strength is low
- Automatic calibration of ON and OFF thresholds ensures reliable readings
- Compatible with software HOBOware Pro and HOBOware Pro on USB Drive for the configuration of the recorder, as well as graphs and analyses

Internal Engine Sensor Features:

- Magnetic field threshold CA: >40 mGauss at 60 Hz

External Input Features:

- External contact input: electronic closure of semiconductor switch or logically controlled voltage output
- Range: 0 to 3 V DC (USB powered), 0 to 2.5 V DC (battery powered)
- Maximum status and execution frequency: 1 Hz
- Closure of the semiconductor switch: Low entrance: 500 K
- Low internal Traction: 100KB
- Input impedance
- Static switch closure: 100 K

Recorder Features:

- Resolution : Impulse : 1 pulse, Running time : 1 second, State and event : 1 state or event
- Memory modes: wrap when full or stop when full
- Start modes: immediate, push-button, date and time or next interval
- Stop modes: when the memory is full, press the button or the date and time
- Accuracy of time: ±1 minute per month at 25°C (77°F) (see route A)

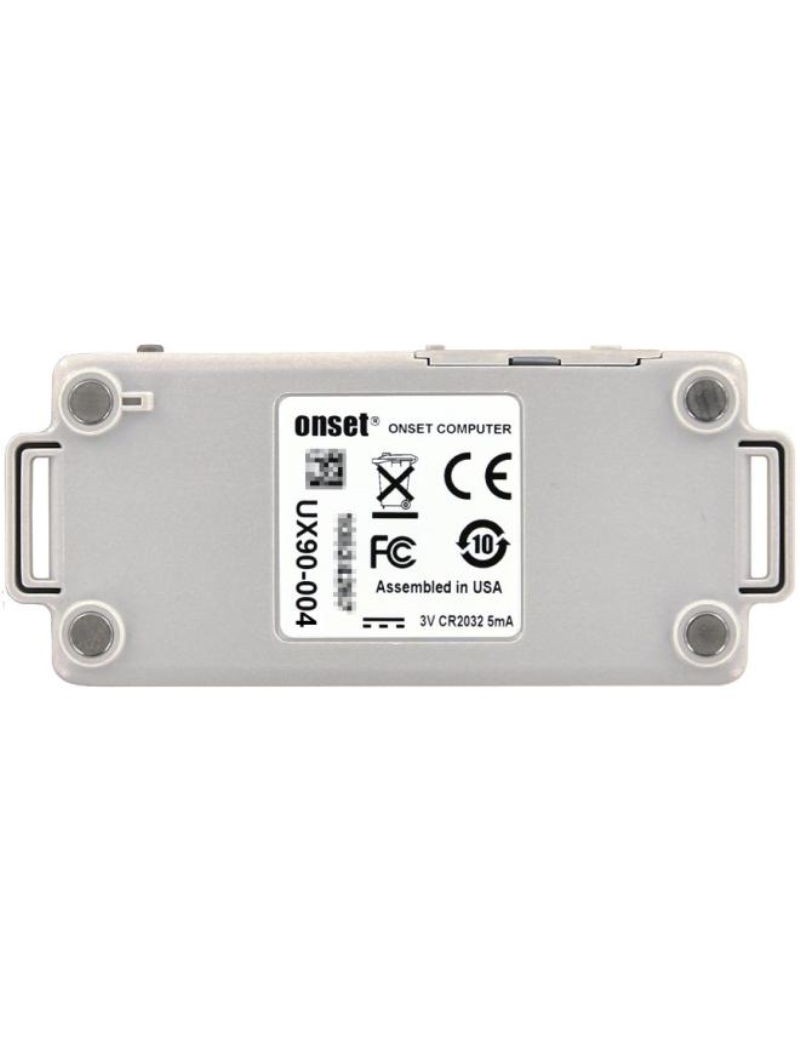

- Power source: 1 3V CR2032 lithium battery and USB cable
- Battery life: 1 year, typical with recording intervals greater than 1 minute and normally open contacts
- Memory: 128 KB (84,650 measurements, maximum)
- Download type: USB 2.0 interface
- Full memory download time: 10 seconds for 128 KB
- Operating range of the recorder:
Record: -20° to 70°C (-4° to 158°F); 0 to 95% HR (without condensation)
Launch / play : 0° to 50°C (32° to 122°F) according to USB specifications
- LCD display: visible from 0° to 50°C (32° to 122°F)
The LCD screen can react slowly or turn off at temperatures outside this range

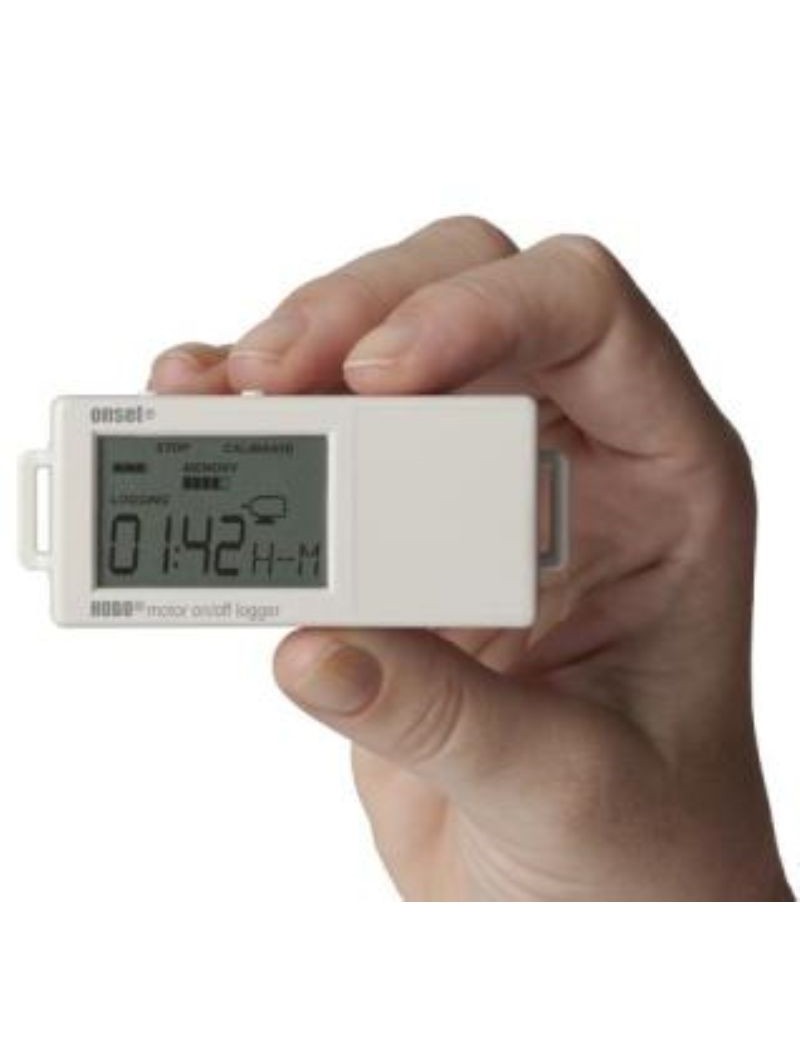

- Size: 3,66 x 8,48 x 1,52 cm (1,44 x 3,34 x 0,6 in.)
- Weight: 30g (1.06 ounce)
- Environmental assessment: IP50

Delivered with:

- On/off engine data recorder HOBO UX90-004
- Command Band
- Double-sided adhesive tape
- Self-adhesive strap
