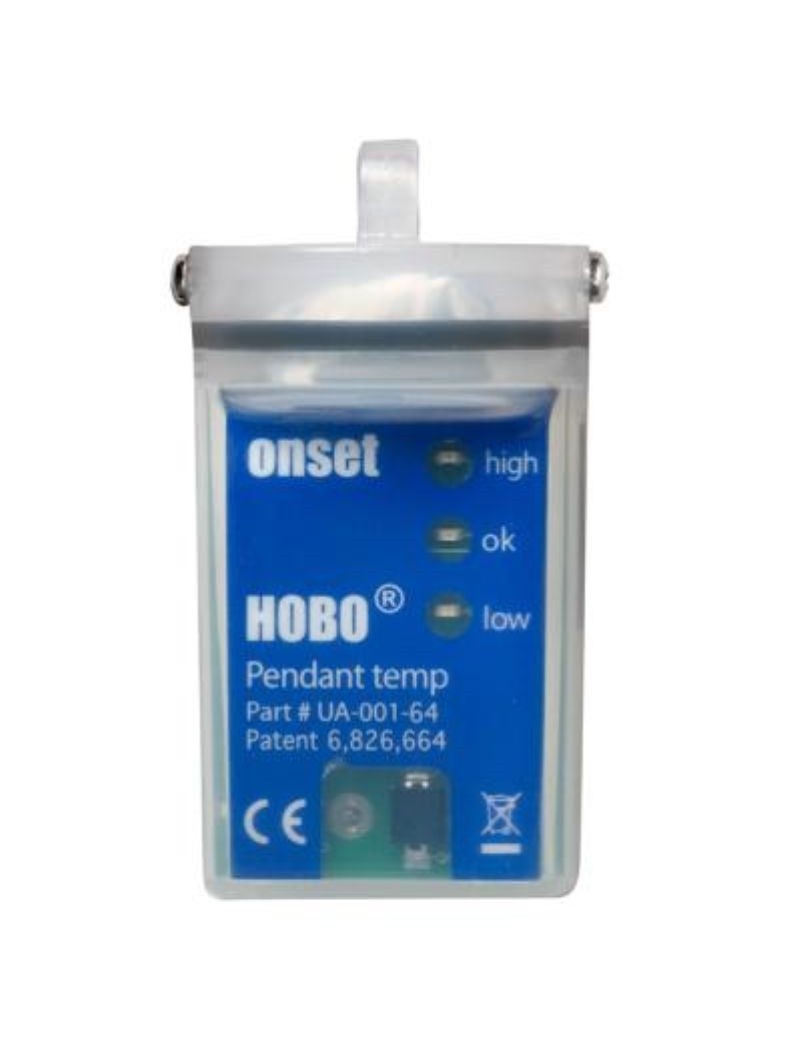

Miniature temperature recorder watertight at 30 meters

THE'recorder miniature temperature waterproof 30 meters UA-001-64 is suitable for short-term shipping applications or long-term deployments.
It is equipped with alarm lights to indicate temperatures above defined levels.
It stores about 52,000 readings de temperature and supports temperature measurements groundwater and of'air, with a measuring range of -20 °C to 70 °C.

Important:

Requires software HOBOware and a uSB optical base or a waterproof HOBO shuttle (U-DTW-1).
HOBOware Pro is required when using the HOBO watertight shuttle.
See related products below.

UA-001-64
1000 Items
€89.00
  Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
  Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
  Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
Description

THE'recorder de temperature During UA-001-64 30 meters waterproof is a data recorder miniature and economic for monitoring of the temperature.
THE'data recorder temperature / alarm suspended HOBO has a channel and is recommended for a short-term shipping or long-term monitoring.
This data recorder has a lED light indicator visible which warns users when predefined parameters have been exceeded.
This model stores about 52000 10-bit temperature readings.
For precise measurement of temperature in sunlight, a solar radiation shield is necessary (solar radiation shield) RS1 solar radiation shield M-RSA (pre-assembled).

Technical specifications:

- Economic temperature with alarm indication or light intensity
- Waterproof housing for underwater or underwater use
- Read data in less than 30 seconds via fast optical USB interface
- Measuring range: -20° to 70°C (-4° to 158°F)
- Alarms: High and low alarms can be configured for a total contiguous or non contiguous duration outside the limits defined by the user between -20° and 70°C (-4° to 158°F)
- Accuracy: ± 0.53°C from 0° to 50°C (± 0.95°F from 32° to 122°F), see map A in the manual
- Resolution: Temperature: 0.14°C to 25°C ( 0.25°F to 77°F), see track A in manual
- Sensor end: IP68
- Response time:
Air flow rate of 2 m/s (4.4 mph): 10 minutes, typical 90%
Water: 5 minutes, 90% typical
- Accuracy of time: ± 1 minute per month at 25 °C (77 °F), see manual route B
- Operating range:
In water/ice: -20° to 50°C (-4° to 122°F)
In air: -20° to 70°C (-4° to 158°F)
- Nominal water depth: 30 m from - 20° to 20°C (100 feet from -4° to 68°F), see Plot C in the manual
- NIST traceable certification: Available for temperature only for an extra charge, temperature range -20° to 70°C (-4° to 158°F)
- Battery life: 1 year in normal use
- Type of battery : CR2032
- Memory:
UA-001-08: 8K bytes (approximately 6.5K sample and event readings)
UA-001 -64: 64,000 bytes (approximately 52,000 readings of samples and events)
- Materials: polypropylene case, stainless steel screws, Buna-N O-ring
- Weight: 15.0 g (0.53 oz)
- Dimensions: 5,8 x 3,3 x 2,3 (centimeters) and 2,3 x 1,3 x 0,9 (inch)
- Environmental class : IP68

The CE marking identifies this product as complying with the directives applicable in the European Union (EU).

Product Details
UA-001-64
1000 Items
Attachments

9531-O

HOBO Hanging Temperature Data Recorder User Manual (UA-001-08, UA-001-64)

Download (854.85KB)

22136-C

HOBO® Pendant® Data Recorder (UA-00x) Quick Start

Download (256.3KB)
