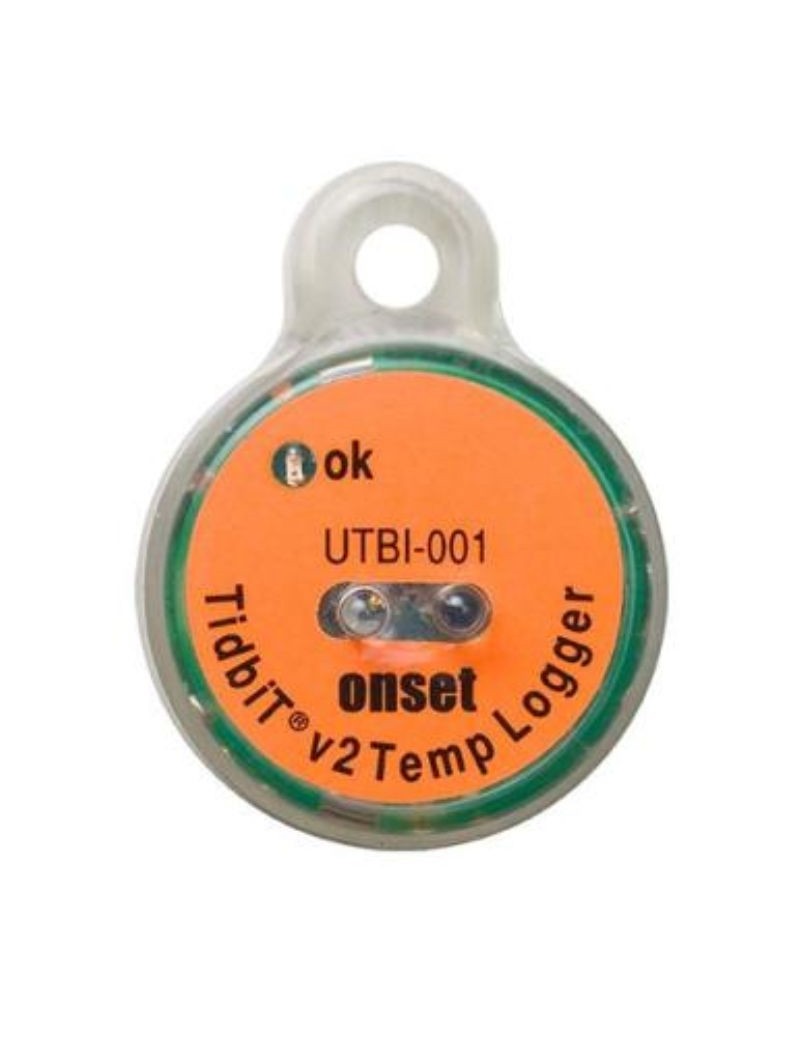

TidbiT v2 temperature recorder
Write your review
The TidbiT v2 is one data recorder de temperature precise and sustainable, offering a temperature range from -20°C to 70°C in the air and up to 30°C in the water, it is waterproof to 300 metres.
It has lithium battery non-replaceable with a range of 5 years, configurable recording intervals and data that can be quickly unloaded via a uSB optical interface.
Important:
Requires software HOBOware and a USB cable to work, available separately.
(Note: USB cable is included with the purchase of a CD HOBOware Pro or USB software).
See related products below)
€189.00
Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.

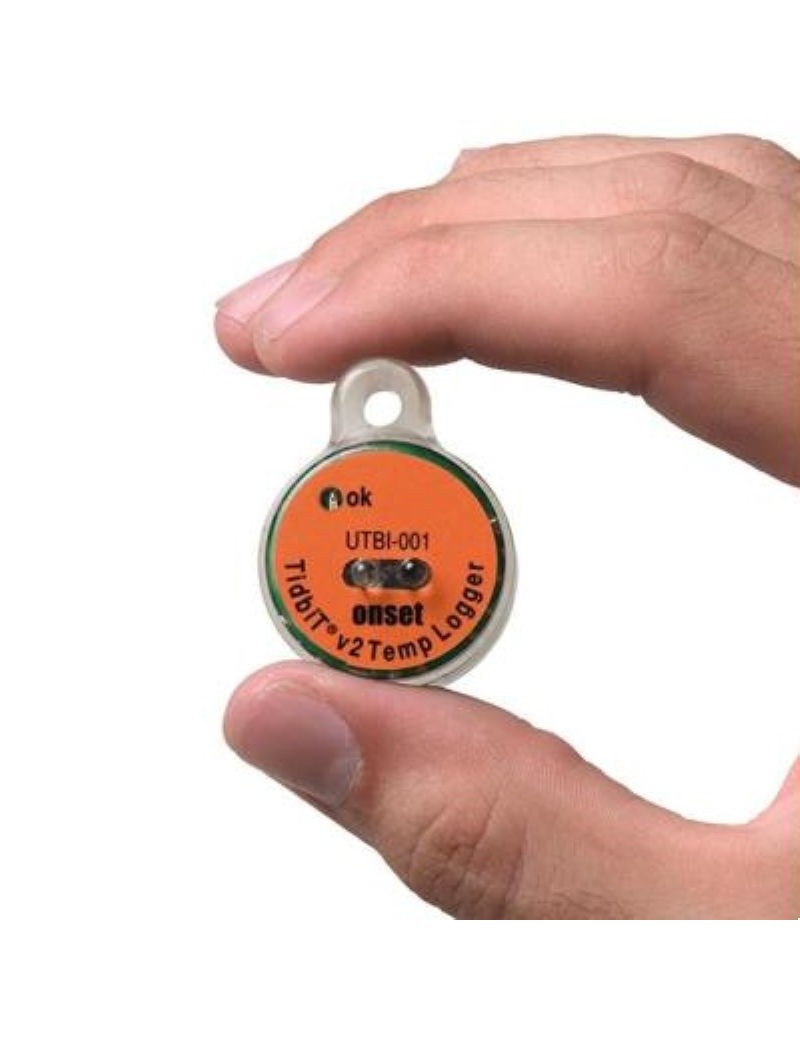

Only 3 x 4 cm for this little data recorder which measures the temperatures on a wide beach, offers a resolution 12 bits and one accuracy by ±0.2 °C.
Designed for environments external and submarines, this recorder is waterproof until 300 metres (1000 ft).
One uSB optical interface allows you to unload data in seconds.
Please note: One solar radiation shield is required to obtain accurate measurements of air temperature in sunlight (solar radiation shield) RS1 required for solar radiation assembly or shield M-RSA (pre-assembled).
Technical specifications:
- The smallest temperature data recorder'Onset
- Waterproof up to 300 metres (1,000 feet)
- Read data in less than 30 seconds via fast optical USB interface
Temperature sensor features:
- Operating range*:
-20° to 70°C in air (-4° to 158°F)
Maximum sustained temperature of 30°C (86°F) in water*
- Accuracy: ±0.21°C from 0° to 50°C see manual for plot (± 0.38°F from 32° to 122°F)
- Resolution: 0.02°C at 25°C see manual for plotting (0.04°F to 77°F)
- Response time:
5 minutes in the water
12 minutes in the air moving at 2 m/sec
20 minutes in air moving at 1 m/sec (90% typical)
- Stability (driving): 0.1°C per year (0.18°F per year)
Recorder Features:
- Real time clock: ±1 minute per month 0° to 50°C (32° to 122°F)
- Battery: Lithium 3 volts non-replaceable
- Battery autonomy (typical use): 5 years with a recording interval of at least 1 minute
- Memory (non-volatile): 64K memory bytes (approximately 42,000 12-bit temperature measurements)
- Weight: 19.6 g (0.69 oz)
- Dimensions: 3.0 × 4.1 × 1.7 cm (1.2 × 1.6 × 0.68 in.) mounting bracket 4.6 mm (3/16 in.) diameter hole
- Materials : Epoxy housing
- Waterproof: up to 305 m (1000 feet)
- Registration interval:
Fixed or multiple rate recording intervals, with up to 8 user-defined intervals and recording times.
Record intervals from 1 second to 6 p.m., refer to the HOBOware software manual.
- Launch modes:
Immediate start
Delayed start
Start triggered
- Method of unloading: Unload during logging, stop and unload
- Battery indicator:
The battery level can be viewed on the status screen and possibly saved in the data file
Low battery indication in data file
- Environmental assessment: IP68
- NIST certificate:available for an additional fee
UTBI-001
