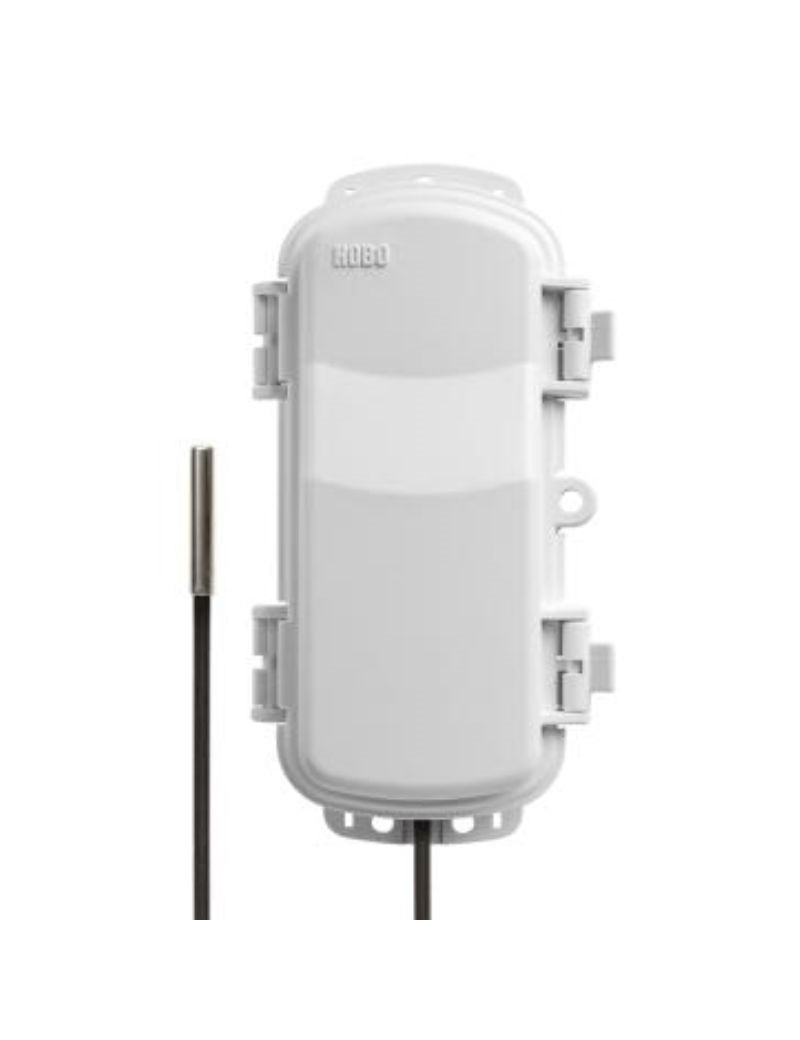

Temperature sensor with six meter external probe HOBOnet RXW-TMB-6-868 network
Write your review
The sensor HOBOnet measures the temperature of the'air ground and of'water, it sends data to a central station via mesh technology wireless.
Economic and evolutionary, it has a measuring range of -40 ° to 100 °C, one high precision of ± 0.2 °C, one wireless reach 450 to 600 metres and one built-in memory to avoid data loss.
Important:
Includes lithium batteries.
A complete system requires hOBO RX station, one wireless manager HOBOnet and one wireless sensor HOBOnet.
Des wireless repeaters HOBOnet can be added to extend the range of both system options.
€199.00
Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
A solution economic and progressive for the monitoring online temperature of the'air.
Wireless sensors HOBOnet communicate the data directly to a hOBO RX station or transmit data via other wireless sensors at the central station.
They are preconfigured and ready for deployment.
Data are accessible via HOBOlink, the innovative cloud software platform of'Onset.
Technical characteristics of the sensor:
- Measuring range from -40° to 100°C (-40° to 212°F)
- High accuracy: ± 0.2 °C (± 0.36 °F)
- Stainless steel sensor tip
Wireless sensor characteristics:
- 900 MHz wireless mesh self-healing technology
- Wireless range from 450 to 600 metres (1,500 to 2,000 feet) and up to five jumps
- Up to 50 wireless sensors or 336 data channels per HOBO RX station
- Just press a button to join the HOBOnet wireless network
- Onboard memory to avoid data loss
- Powered by 2 replaceable lithium AA batteries
Sensor Features:
- Measuring range: -40° to 100°C (-40° to 212°F)
- Accuracy :
±0.25°C from -40° to 0°C (±0.45°F from -40° to 32°F)
±0.20°C from 0° to 70°C (±0.36°F from 32° to 158°F)
±0.25°C from 70° to 100°C (±0.45°F from 158° to 212°F)
- Resolution: 0.02 °C (0.036 °F)
- Drive: - Response time (typical, 90% change): 2 minutes, 30 seconds in air moving at 1 m/sec
Sensor Features wireless:
- Operating temperature range: -40° to 70°C (-40° to 158°F)
- Radio power: 12.6 mW (+11 dBm) not adjustable
- Transmission range:
Reliable connection to a 457.2 m (1,500 ft) sight line at a height of 1.8 m (6 ft)
Reliable connection to a 609.6 m (2 000 ft) sight line at a height of 3 m (10 ft)
- Wireless data standard: IEEE 802.15.4
- Radio operating frequencies RXW-TMB-x-868: 866.5 MHz
- Modulation employed: OQPSK (decalation of modulation by quadrature phase displacement)
- Data flow rate: up to 250 kbps, not adjustable
- Service cycle: - Maximum number of points: up to 50 wireless sensors or 336 data channels per HOBO RX station
- Log rate: 1 minute at 6 p.m
- Number of data channels : 2
- Type of battery Two 1.5 V AA lithium batteries
- Battery life: 1 year, typical use
- Memory: 16 MB
- Dimensions:
Sensor: 5,3 x 33 mm (0,2 x 1,3 inches)
Cable length: 1.8 m (6 feet)
Mote: 16,2 x 8,59 x 4,14 cm (6,38 x 3,38 x 1,63 inches)
- Weight:
Sensor and cable: 35.2 g (1.24 oz)
Moth: 223 g (7.87 oz)
- Materials:
Sensor: Waterproof stainless steel tip
Mote : PPCBT, silicone rubber seal
- Environmental Assessment:
Sensor and cable: Immersion in water up to 50 °C (122 °F) for 1 year
Mote : IP67, NEMA 6
Contents of the box:
- Wireless temperature sensor HOBOnet
- Lithium batteries
- Zip links
