RXW Manager module for RX3000

Name: RXW Manager module for RX3000
Brand: Onset devient LI-COR
SKU: RXMOD-RXW-868
Price: 219 EUR
Availability: InStock

Write your review

The module HOBOnet RXW Manager for RX3000 allows the wireless transmission data from sensors on the network to the station RX3000, with a range of 450 to 600 meters and up to 50 wireless sensors by RX3000.
Important:
To have a complete system HOBO RX3000 monitoring station, one wireless manager HOBOnet and one hOBOnet wireless sensor are necessary.
Des repeaters wireless HOBOnet can be added to extend the range.

€219.00

Quantity

Add to Wishlist

Add to Compare

Tags: Onset, Hobo, flexible, up to 50 wireless sensors, Self healing technology, wireless management module, hOBO RX3 monitoring station, wireless data transmission, range from 450 to 600 meters, 10 Routes, Connects to the flexible port

Categories: Shop, Matching products, By applications, By product type, By environment, Agricultural surveillance, Energy performance, Environmental Protection & Research, Water resources management, Agricultural research, Agricultural production, Disease and Pest, Irrigation & Water, Verger & Vineyard, Livestock, Conformity of construction, Energy, HVAC/R, Internal environment, Museum & Preservation, Storage and Shipping, Climate, Ecological, Environment, Green space, Renewable energy, Aquatic ecology, Dam management, Hydrology and groundwater, Water quality and conformity, Watershed management, Wetlands and rainwater, External, Communication

Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.

Fast and reliable delivery We offer fast and secure delivery options, followed to your door.

Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.

Description

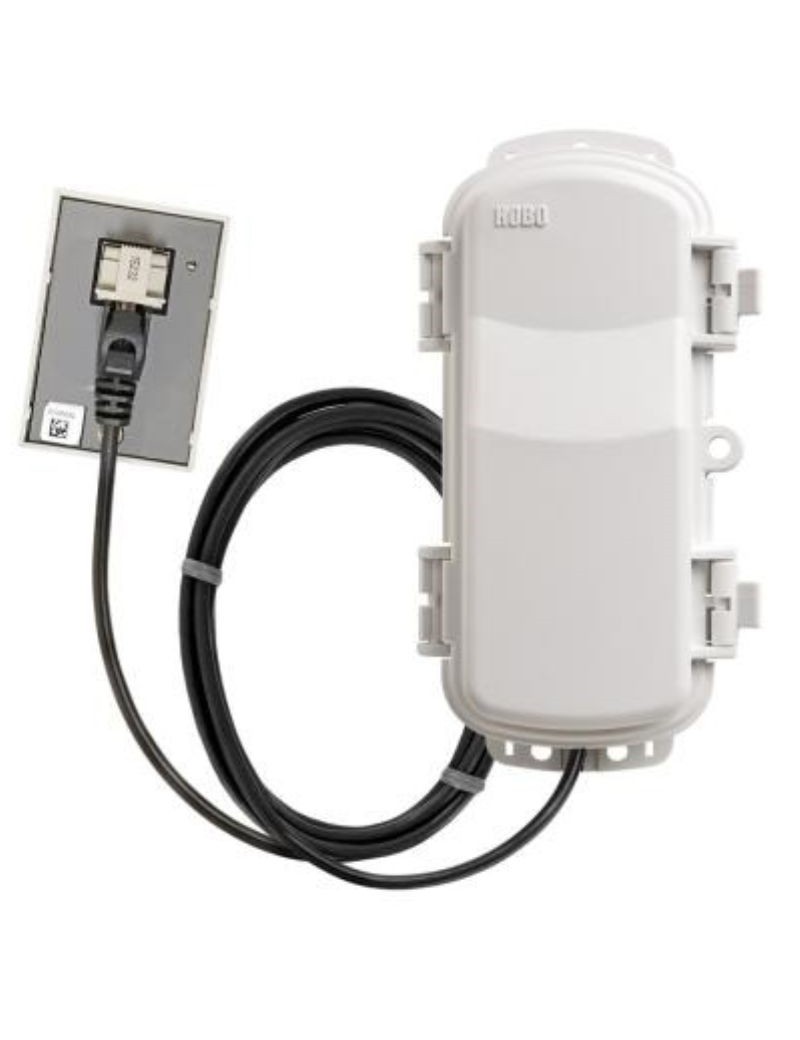

The RXMOD-RXW-868 is one wireless management module to be installed in a monitoring station HOBO RX3000. Data are transmitted wireless from sensors on the network to station RX3000, then downloaded on HOBOlink, the innovative cloud software platform of'Onset.

Technical specifications:

- 900 MHz Wireless Mesh Self Healing Technology: Wireless mesh uses 900 MHz radio frequencies to communicate wirelessly and, in the event of a failure or failure of a network node, other nodes can find another way to transmit data, allowing the network to repair itself and continue to function reliably.
- Wireless range from 450 to 600 metres (1,500 to 2,000 feet) and up to five jumps
- Up to 50 wireless sensors per RX3000
- Connects to the flexible port RX3000

Features:

- Operating temperature range: -25° to 60°C (-13° to 140°F)
- Radio power: 12.6 mW (+11 dBm) not adjustable
- Transmission range:
Reliable connection to a 457.2 m (1,500 ft) sight line at 1.8 m (6 ft) height
Reliable connection to a 609.6 m (2,000 ft) sight line at 3 m (10 ft) height
- Wireless data standard: IEEE 802.15.4
- Radio operating frequencies RXMOD-RXW-868: 866.5 MHz
- Modulation employed: OQPSK (decalation of modulation by quadrature phase displacement)
- Data flow rate: up to 250 kbps, not adjustable
- Service cycle: - Maximum number of points: 50 motes per network of RX wireless sensors
- Power source: powered by RX3000
- Dimensions:
Mote: 16,2 x 8,59 x 4,14 cm (6,38 x 3,38 x 1,63 inches)
Cable length: 2 m (6.56 feet)
- Lester: Grain = 159 g (5.62 oz)
- Materials : PPCBT mote, silicone rubber seal
- Environmental Assessment: Mote IP67, NEMA 6
