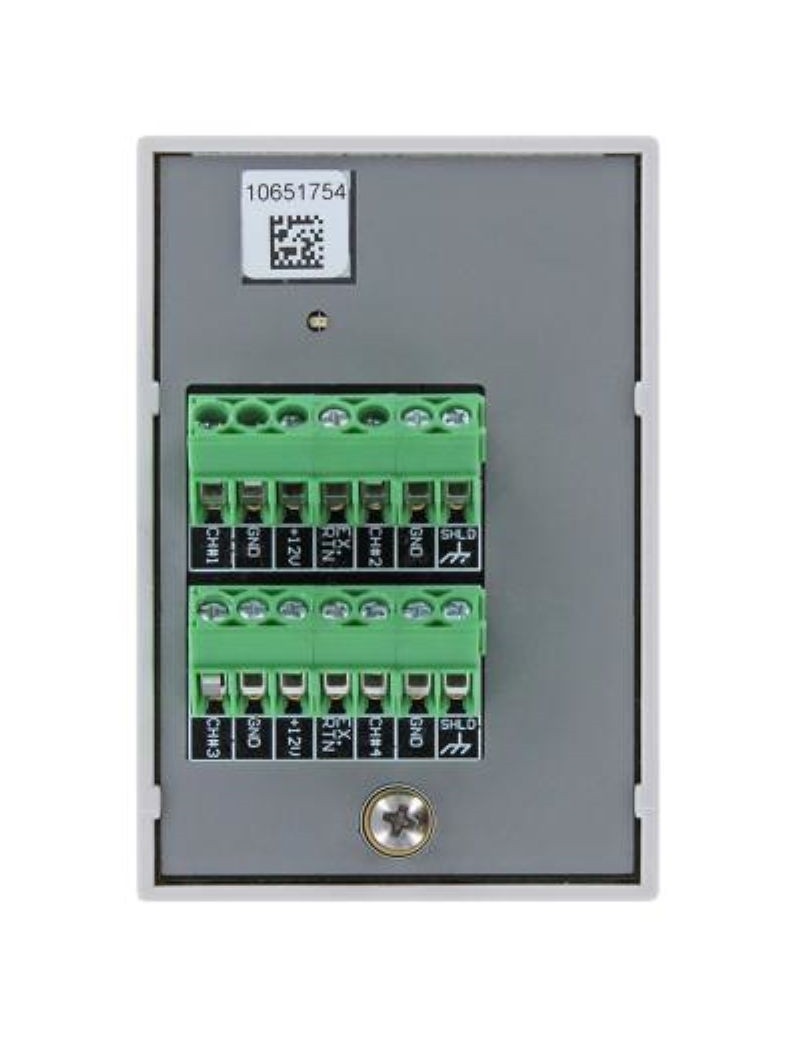

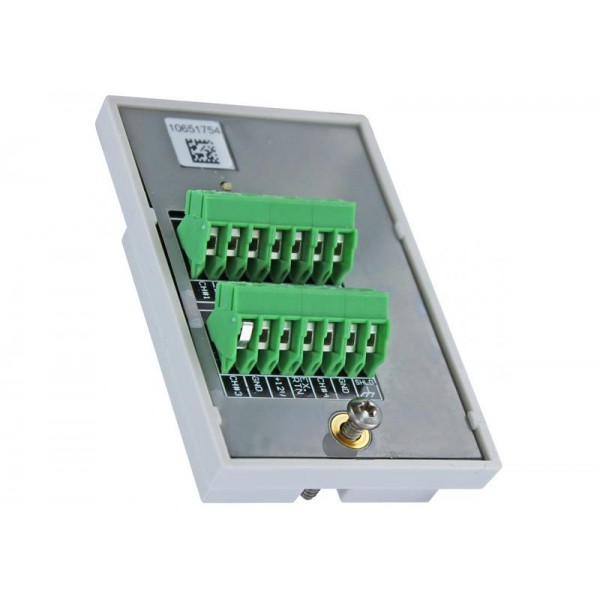

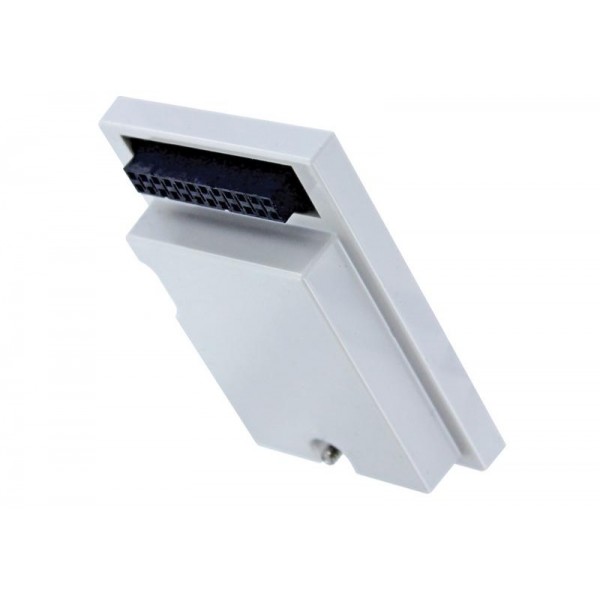

4-channel analog module RX3000 RXMOD-A1

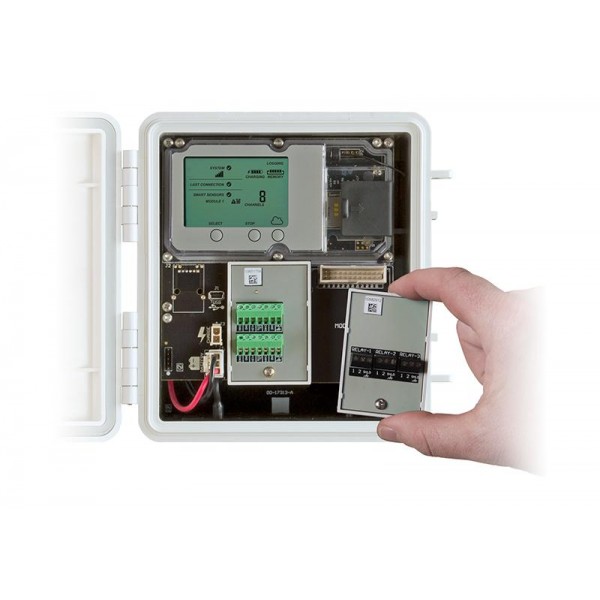

The 4-channel analogue module RXMOD-A1 is a accessory for data recorders RX3000 of society Onset, this module allows to extend the measurement capacity of data recorders RX3000 allowing them to collect measurement data from analogue sensors.
More precisely, it allows to connect up to four different analog sensors, such as temperature sensors, of pressure, of level or'relative humidity, and simultaneously measure the data of each of them.
The RXMOD-A1 module offers accuracy and one high reliability, making it a popular choice for monitoring applications and measurement in'industryenvironment and of scientific research.
The analog module supports excitation power, the scale-up and statistical measures.
These four asymmetric sensor inputs are configured via HOBOlink.

Technical specifications:

- 15 bit resolution and high precision
- Each module can have its own logging rate
- Entry ranges up to 33V
- 1 HOBO RX3000 station is required for this product

Module Features:

- Input channels: 4, asymmetrical, in addition to smart sensor data channels
- Measurement range and accuracy:
0–25.6 mA CC, ±5 μA ± 0.15% of reading
0–2.5 V DC, ±0.25 mV ±0.2% of reading
0–5 V DC, ±0.25 mV ±0.2% of reading
0–10 V DC, ±0.3 mV ±0.2% of reading
0–20 V DC, ±0.6 mV ±0.2% of reading
0–33 V DC, ±1.20 mV ±0.2% of reading
- Resolution: 15 bits
- On-site cabling: 2 or 3 wires via screw terminals, 16–24 AWG
- Minimum/maximum input voltage: 0/33 V DC
- Minimum/maximum input current: 0/25.6 mA
- Minimum source impedance for current measurement: 20 k
- Excitation voltage: 12 V DC ±5% to maximum 200 mA per module
