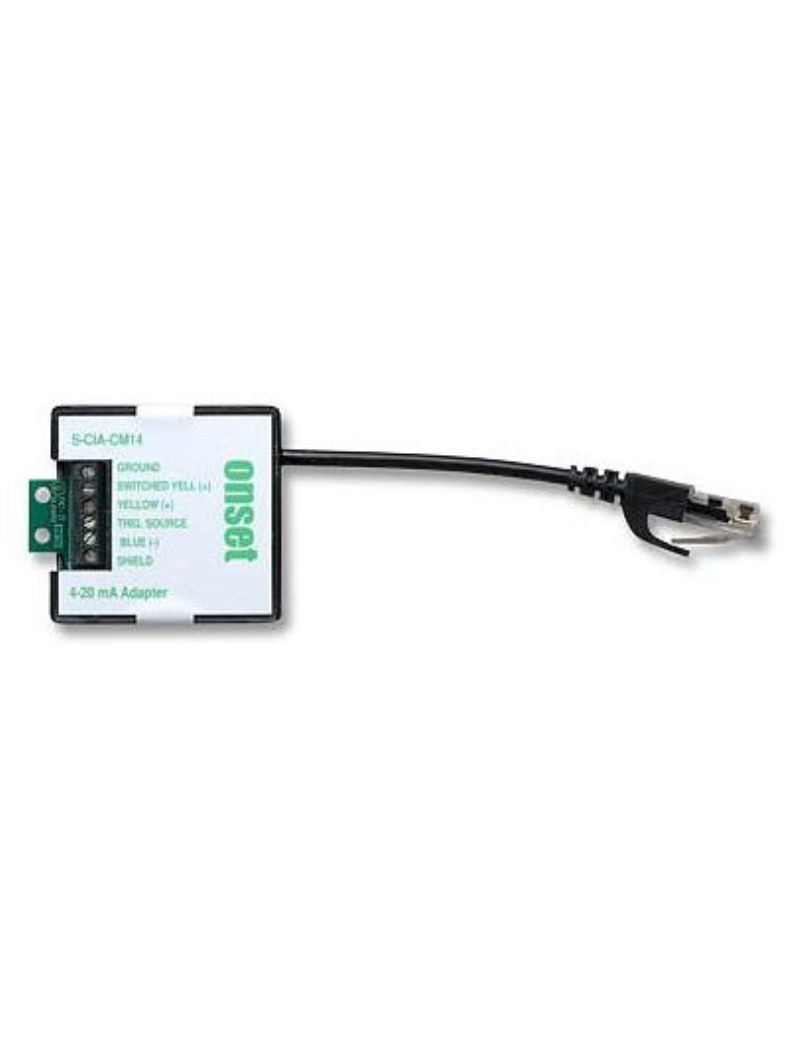

Smart input cable 4-20 mA S-CIA-CM14
Write your review
The smart input cable 4-20 mA S-CIA-CM14 allows to connect sensors providing a signal 4-20 mA to weather stations de the mark HOBO.
The smart cable is a cable used to transmit analogue electrical signals de 4 to 20 milliampers (mA) from a measuring or checking device to other electronic equipment.
It has input not switched and one switched input with a battery saving capacity of digital filtering, and can be used in indoor environments and external.
By using this type of cable, smart transmitters can transmit precise data and reliable for industrial processes in an efficient and efficient manner real-time monitoring the operating conditions of the equipment.
€105.00
Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
Smart input cable 4-20 mA S-CIA-CM14 interfaces with any sensor providing a signal 4-20 mA to connect to hOBO compatible stations with the smart sensors.
This is it adapter includes both input not switched and one switched input saving the battery that extends the life of external batteries.
It also provides trigger signal to control the power supply of connected external sensors, while offering a digital filtering which improves the accuracy of measurements with 32 readings/sample and a noise rejection of 60 Hz.
The cable allows the transmission of measurement signals in a way bidirectional, which means that the data can be sent to and received from the measuring device.
In addition, this cable also has a digital communication function to recover additional information, such as the calibration, identification of the apparatus alarms and diagnostics.
Technical specifications:
- 12 bit resolution
- Digital filtering improves measurement accuracy with 32 readings/sample
- The 4-20 mA adapter has a noise rejection of 60 Hz
- Average measurement on the recording interval further improves accuracy
- Plug-in modular connector for easy interface with HOBO weather stations
- Screw point for connection to sensors
- The HOBO RX3000 and U30 stations have room for two adapters
- Use with HOBO USB Micro Station and HOBO MicroRX Station requires smart sensor consolidation housing (S-ADAPT-6) and extension cable.
- Represents a data input channel
Features:
- Measurement range: 4-20 mA (measured up to 0 mA to detect an error condition)
- Operating temperature range: -40° to 75°C (-40° to 167°F)
- Accuracy: ±40 μA ±0.3% of reading (over operating temperature range)
- Resolution: ±4,93 μA
- Input impedance: 124 ohms (differential input)
- Sensor trigger source: Voltage: 2.5 V ± 2.4 per cent; maximum current: 1 mA
- Preheating time: 300 ms ±3 % (fixed)
- Measuring time: 16.6 ms ±3 % to filter 60 Hz noise
- Cable length: 14 cm (5.5 inches)
S-CIA-CM14
1000 Items
