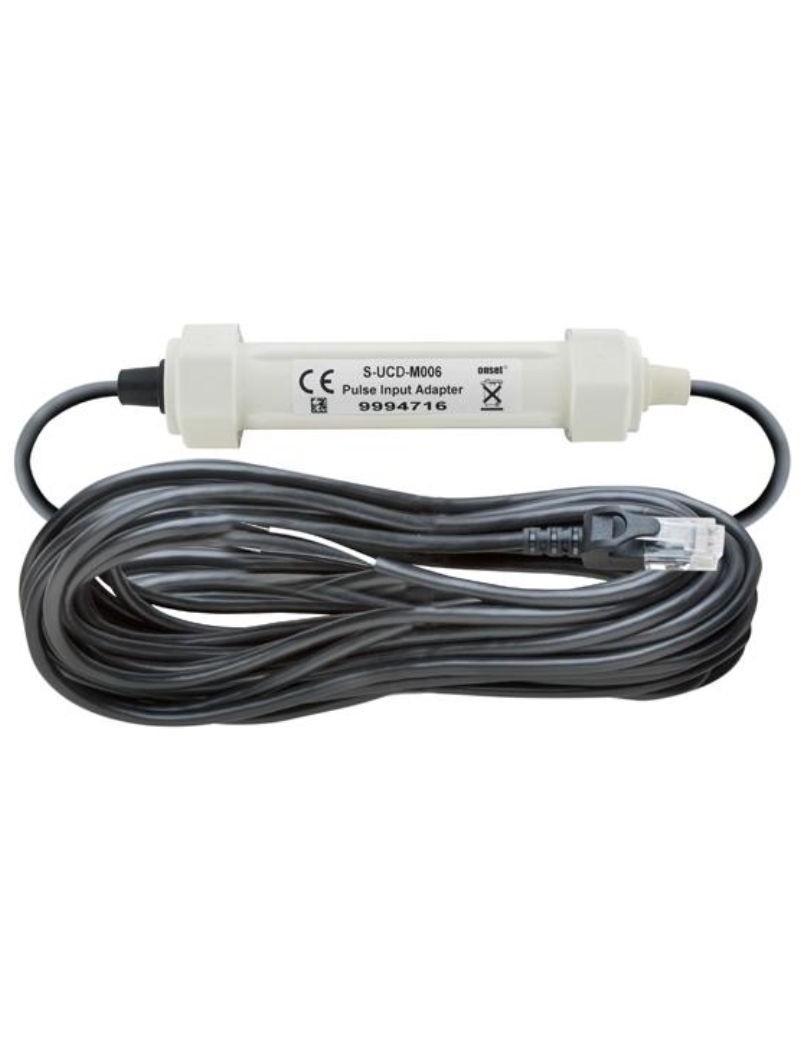

Cable smart 6 meter contact input S-UCD-M006

Name: Cable smart 6 meter contact input S-UCD-M006
Brand: Onset devient LI-COR
SKU: S-UCD-M006
Price: 120 EUR
Availability: InStock

Write your review

The smart cable contact input of a length of 6 metres S-UCD-M006 is designed for connect of the sensors with pulse outputs to data recorders with smart sensor inputs.
It is compatible with the contact closures, such as rainfall meters to tipping or reed switches, with one maximum input frequency of 2 Hz and is automatically recognized by the data recorderss H21, H22, U30 and ZW.
This is type of sensor closes or opens to generate a electrical impulseadapter is used to measure and transmit pulses generated by the sensor.
These impulses may represent different measures or events, such as energy meters, of'water, of gas, of speed

€120.00

Quantity

Add to Wishlist

Add to Compare

Tags: Onset, Hobo, U30, H22, cable, cable smart, compatible with closures d, adapter, Plug-and-play adapter, for impuls output sensors, connect sensors with s, to data recorders a, pluviometers with tilting tip, blade switches, maximum input frequency of 2, Automatically recognized by the, ZW, Pulse input adapter, smart cable with contact input, S-UCD-M006

Categories: Shop, Matching products, By applications, By product type, By environment, Agricultural surveillance, Energy performance, Agricultural research, Agricultural production, Irrigation & Water, Verger & Vineyard, Livestock, Conformity of construction, Energy, HVAC/R, Internal environment, Storage and Shipping, Inside, External, Pulse input, Water flow, Sensors

Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.

Fast and reliable delivery We offer fast and secure delivery options, followed to your door.

Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.

Description

The smart cable contact input of a length of 6 metres S-UCD-M006 connects sensors with pulse outputs at data recorderss with smart sensor inputs.
It is compatible with contact closures, such as pluviometers with tilting tip or blade switches with one maximum input frequency of 2 Hz (2 pulses per second), and a preferred switch of normally open type.

Technical specifications:

- Plug-and-play adapter for pulse output sensors
- Automatically recognized by data recorders H21, H22, U30 and ZW
- Compatible with contact closures, such as rain gauges or Reed switches with a maximum input frequency of 2 Hz (2 pulses per second)

Smart Cable Features:

- Maximum input frequency: 2 Hz (2 pulses per second)
- Measuring range: 0 – 65,533 pulses per recording interval
- Resolution: 1 pulse
- Locking time: 327 ms ± 10%
- Recommended type of input: mechanical contact closure (example: blade switch in a tipper-pluviometer)
- Preferred switching state: Active bass input Normally open
- Front detection: Down front, Schmitt trigger buffer (logical levels: low ≤ 0.6 V, high ≥ 2.7 V)
- Minimum pulse width: 1 ms
- Input/output impedance: 100 K
- Open circuit input voltage: 3.3 V
- Maximum input voltage: 3.6 V
- User login: 24 AWG threads, 2 threads: white(+), black(-)
- Operating temperature range: -40° to 75°C (-40° to 167°F)"
- Total cable length: 6.5 m (21 ft)
- Case: The weather-resistant PVC housing protects the electronics from the input adapter
- Dimensions of the housing: 14 x 0,95 cm (5,5 x 0,375")
- Weight: 310 g (11 oz)
- Bits per sample: 16
- Number of data channels: 1
- Option to calculate the average: No (reports the number of pulses on the recording interval)
