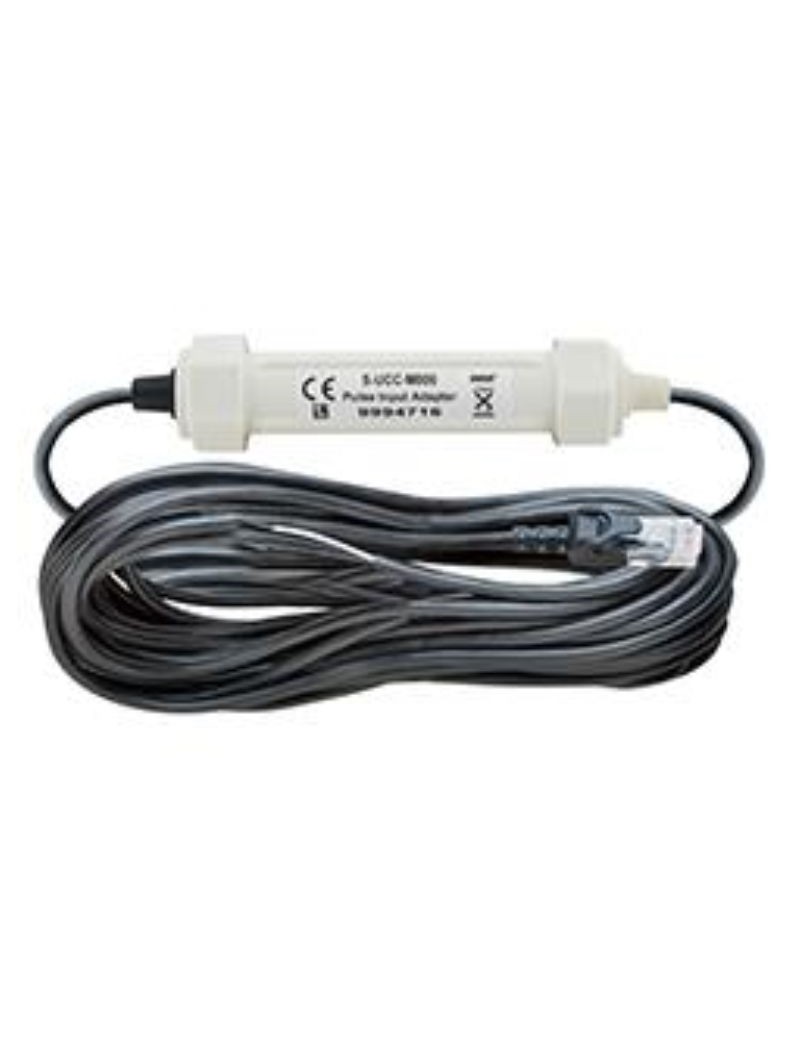

Cable smart impulse input 6 meters S-UCC-M006
Write your review
This is it adapter S-UCC-M006 allows connect of the sensors with pulse outputs to data recorders with smart Sensor inputs.
The smart pulse input cable is designed for measure and transmit of the pulse signals.
It can be used in energy counting systems water meters gas meters industrial monitoring systems, and other applications where accurate pulse measurement is required.
He is compatible with the electronic switch closures and is automatically recognized by HOBO Energy Logger.
This specific cable has a length of 6 metres, which means that it can be used to connect devices at a maximum distance of 6 metres.
€120.00
Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
The smart cable impulse input of 6 metress S-UCC-M006 connect of the sensors with pulse outputs at data recorders with Smart Sensor inputs.
He is compatible with electronic switch closures such as fET outputs or with an open collector, or cMOS level logic signals with one maximum input frequency of 120 Hz (120 pulses per second).
Smart d cable'pulse input is designed for measure and transmit of the pulse signals.
It can be used in energy counting systems water meters gas meters industrial monitoring systems, and other applications where precise measurement of the pulses is necessary.
The cable transmits pulse signals from sensors or meters to data collection devices or processing systems.
The pulses can represent measures such as the energy consumption, the quantity of water or gas used, or other relevant data.
This is specific cable has a length of 6 metres, which means that it can be used to connect devices at a maximum distance of 6 metres.
Technical specifications:
- Plug-and-play adapter for pulse output sensors
- Automatically recognized by HOBO Energy Logger
- Cable length of 6 m (extension cables available)
Smart Cable Features:
- Maximum input frequency: 120 Hz (120 pulses per second)
- Measuring range: 0 – 65,533 pulses per recording interval
- Resolution: 1 pulse
- Lock time: 45 μs ± 10%
- Recommended input type: Semiconductor electronic switch closure or CMOS digital output (e.g. FET, opto-FET or open collector)
- Preferred switching state: Active bass input Normally open
- Front detection: Downwind, Schmitt Trigger buffer (logical levels: low ≤ 0.6 V, high ≥ 2.7 V)
- Minimum pulse width: 1 ms
- Output input / impedance: 100 K
- Open-circuit input voltage: 3.3 V
- Maximum input voltage: 3.6 V
- User connection: 24 AWG wires, 2 threads: white(+), black(-)
- Operating temperature range: -40° to 75°C (-40° to 167°F)
- Total cable length: 6.5 m (21 ft)
- Case: The weather-resistant PVC housing protects the electronics from the input adapter
- Dimensions of the housing: 14 x 0,95 cm (5,5 x 0,375 in.)
- Weight: 310 g (11 oz)
- Bits per sample: 16
- Number of data channels: 1
- Option for calculating the average of measurements: No (reports the number of pulses on the recording interval)
S-UCC-M006
1000 Items
