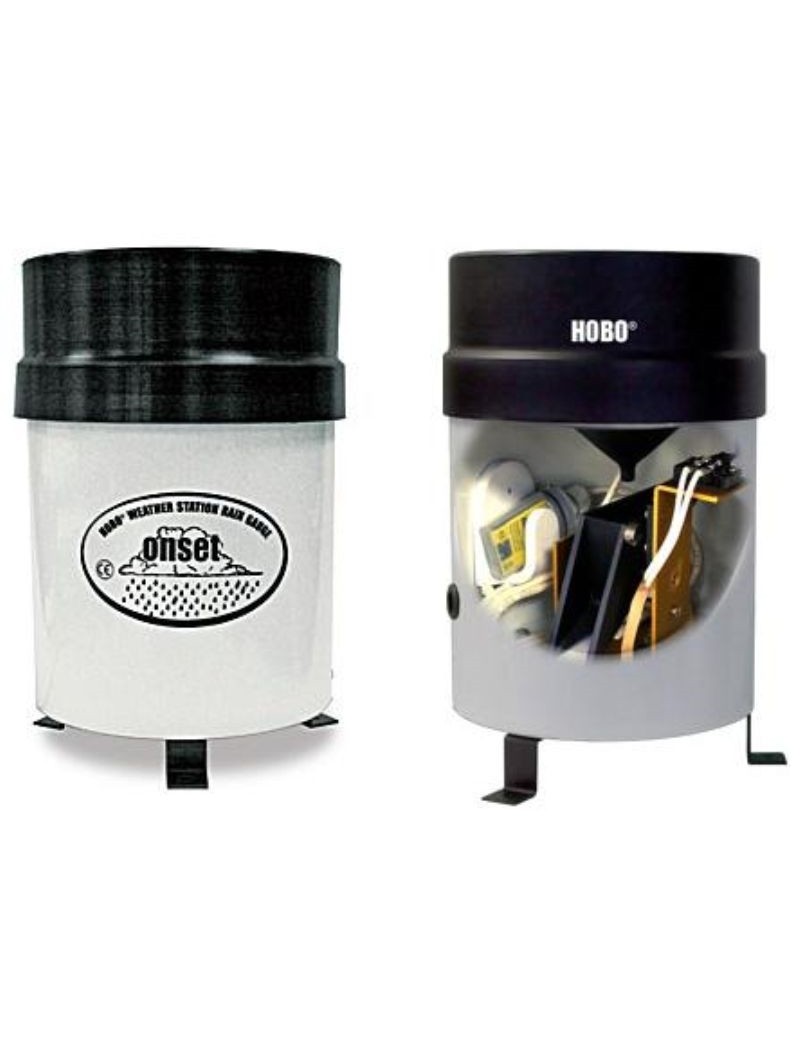

The rain gauge RG3-M

The rain gauge resolution 0.02 mm with rG3-M recorder HOBO offers an efficient system of collection and'registration de rainfall data battery powered which includes a data recorder HOBO During Event integrated into a rain gauge.
This model automatically records up to 3200 mm data precipitation, which can be used to determine the rates: heures and duration precipitation.
It also records the temperature when used with a solar radiation shield optional (RS1 Solar Radiation Shield or M-RSA).
A base station BASE-U-4 or a shuttle is required.

Technical specifications:

- A high quality tilting bucket rain gauge includes a HOBO data recorder during Event, a base station or shuttle is required
- Time stamping is stored for each point
- provides details to determine precipitation rates and duration
- Reliable and proven rain gauge in the field
- Compatible with HOBOware Pro software for configuration, graphical representation and recorder analysis
- Also saves temperature when used with an optional sunscreen

Pluviometer Features:

- Maximum rain rate: 12.7 cm (5 in.) per hour
- Calibration accuracy: ±1.0% (up to 1 inch/hour for RG3 or 20 mm/hour for RG3-M)
- Resolution: 0.01" (RG3 ) or 0.2 mm (RG3-M)
- Calibration: Requires annual calibration, can be calibrated on site or returned to the plant for further calibration
- Operating temperature range: 0° to +50°C (+32° to +122°F)
- Temperature range storage: -20° to +70°C (-4° to +158°F)
- Environmental class: Weather resistant
- Case: 15.24 cm (6 in.) aluminum bucket
- Rotating bucket mechanism: Stainless steel shaft with brass bearings
- Dimensions : 25,72 cm height x 15,24 cm diameter (10,125 x 6 in., 15.39 cm (6.06 in.)
- Weight: 1.2 kg (2.5 lbs)
- References: RG3 (0.01 in. per tip), RG3-M (0.2 mm per tip)

Recorder Features:

- Recorder time stamp resolution: 1.0 seconds
- Accuracy of the time: ± 1 minute per month at 25°C (77°F), see Trace B on page 10.
- Operating range: -20° to 70°C (-4° to 158°F)
- Environmental assessment (for the recorder used outside the rain gauge): Tested according to NEMA 6 and IP67, suitable for external deployment
- NIST traceable certification: only available for temperature for a surcharge
- Battery: CR-2032 3V lithium battery 1 year typical use
- Memory:
64 000 bytes
16,000 to 23,000 peaks when recording rain only
25K to 30K data points when recording rain and temperature
- Polypropylene case, stainless steel screws, Buna-N O-ring, PVC cable insulation

Temperature measurement: (with an optional solar radiation shield)

- Measuring range: -20° to 70°C (-4° to 158°F)
- Accuracy: ± 0.47°C at 25°C (± 0.85°F at 77°F), a sunscreen is required for temperature measurements in sunlight
- Resolution: 0.10°C to 25°C (0.18°F to 77°F)
- Derivative: less than 0.1°C/year (0.2°F/year)
- Response time: Air flow rate of 1 m/s (2.2 mph): 10 minutes, typical 90%

Contents of the box:

- Rain collector with tilting bucket
- HOBO During Event Recorder
- Mounting accessories: two clamps, three screws
