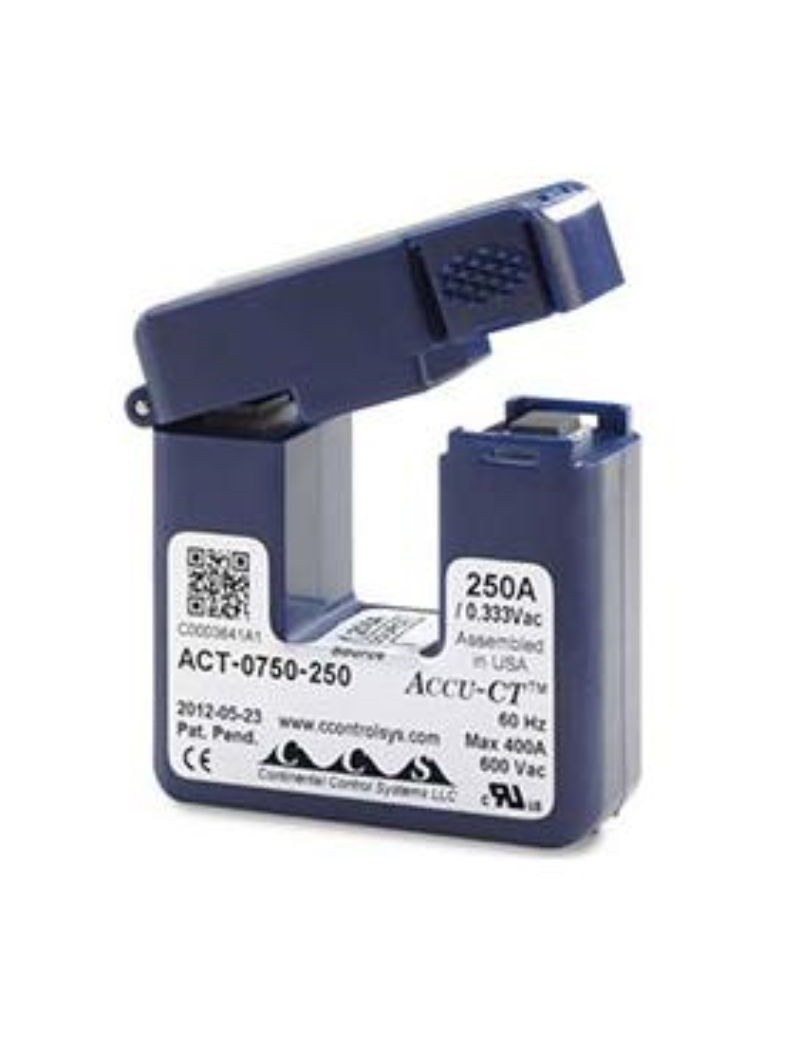

Current sensor 250A T-ACT-0750-250

Name: Current sensor 250A T-ACT-0750-250
Brand: Onset devient LI-COR
SKU: T-ACT-0750-250
Price: 99 EUR
Availability: InStock

Write your review

The current sensor de 250A T-ACT-0750-250 offers a accuracy exceptional and one-hand operation thanks to its unique mechanism of opening and closing.
The current transformer Accu-CT to split kernel is therefore a precise device that allows measuring electrical current in a circuit without having to cut the driver.
This ability to measure the DC current allows efficient monitoring of electrical systems while minimizing interruptions and disruptions in normal operations.
It is therefore ideal for industrial electrical installations energy monitoring systems energy audits.
He is compatible with gloves, which facilitates its installation with one hand, window opening 20 mm, sensor 333mV

€99.00

Quantity

Add to Wishlist

Add to Compare

Tags: Onset, Hobo, sensor, current sensor, noya current transformer, exceptional accuracy, single opening mechanism and, unprecedented linearity, integrated load strength, current transformer, no short-circuit block n, single-hand operation, T-ACT-0750-250, measure electrical current, without having to cut the conduc, ideal for effective monitoring, compatible with gloves, window opening 20 mm, voltage output 333mV

Categories: Shop, Matching products, By applications, By product type, By environment, By measures, Energy performance, Energy, HVAC/R, Internal environment, Inside, Current AC, Sensors

Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.

Fast and reliable delivery We offer fast and secure delivery options, followed to your door.

Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.

Description

The current transformer to split kernel, such as Accu-CT T-ACT-0750-250, is a device used for measuring electrical current in a circuit without having to interrupt or physically cut the driver.
It offers a linearity and one phase angle accuracy exceptional with a mechanism unique opening and closing by one hand to enable technicians to work in restricted environments or difficult to access.
The current sensor T-ACT-0750-250 may provide very specific measures of the electric current, precision which is essential in many applications, especially in industrial electrical installations energy monitoring systems energy audits and other areas where accurate measurement of current is crucial.

Important:

See the product pages of the'data recorder to ensure that you have the appropriate interfaces (modules, adapter, etc.) to deploy this sensor.

Technical specifications:

- unprecedented linearity
- Window opening 20 mm (0.78 inches)
- Integrated load strength
- 333 mV AC voltage output at nominal full scale
- No short circuit block required
- IEEE C57.13 and IEC 60044-1 accuracy: over the entire temperature range and up to 1% of rated current
- Exceptionally low phase angle error: essential for accurate power and energy measurements
- Compatible with gloves: easy to open and install with one hand while wearing safety gloves
- Approvals: UL recognized, CE marking, RoHS

Sensor Features:

- Accuracy: ±0.75% from 1% to 120% of nominal primary current
- Phase angle: ±0.5 degrees (30 minutes) from 1% to 120% of rated current
- Precision standards: IEEE C57.13 class 1.2 and IEC 60044-1 class 1.0
- Primary nominal value: 5 to 250 A, 600 Vca, 60 Hz nominal
- Output: 333.33 mVca at nominal current
- Operating temperature: -30°C to 55°C
- Sure: integrated load strength, no short-circuit block required, unless otherwise specified
- Standard cable length: 8 ft (2.4 m), 20 AWG
- Recognized UL, CE marking, RoHS
- Assembled in the United States: qualified according to the Buy American provision in the 2009 ARRA
- Dimensions:
Width : 2.38 inches
Height : 2.40 inches
Thickness : 0.90 inches
Fenêtre : 0.78 inches
