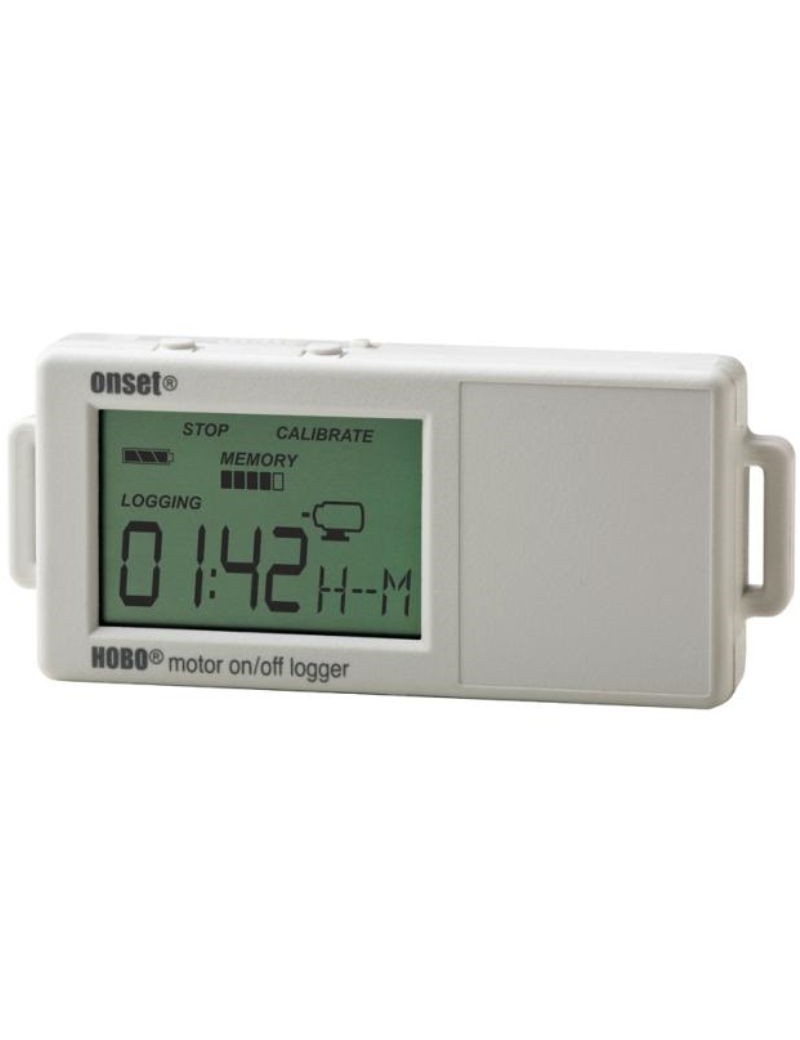

Engine recorder ON/OFF UX90-004M

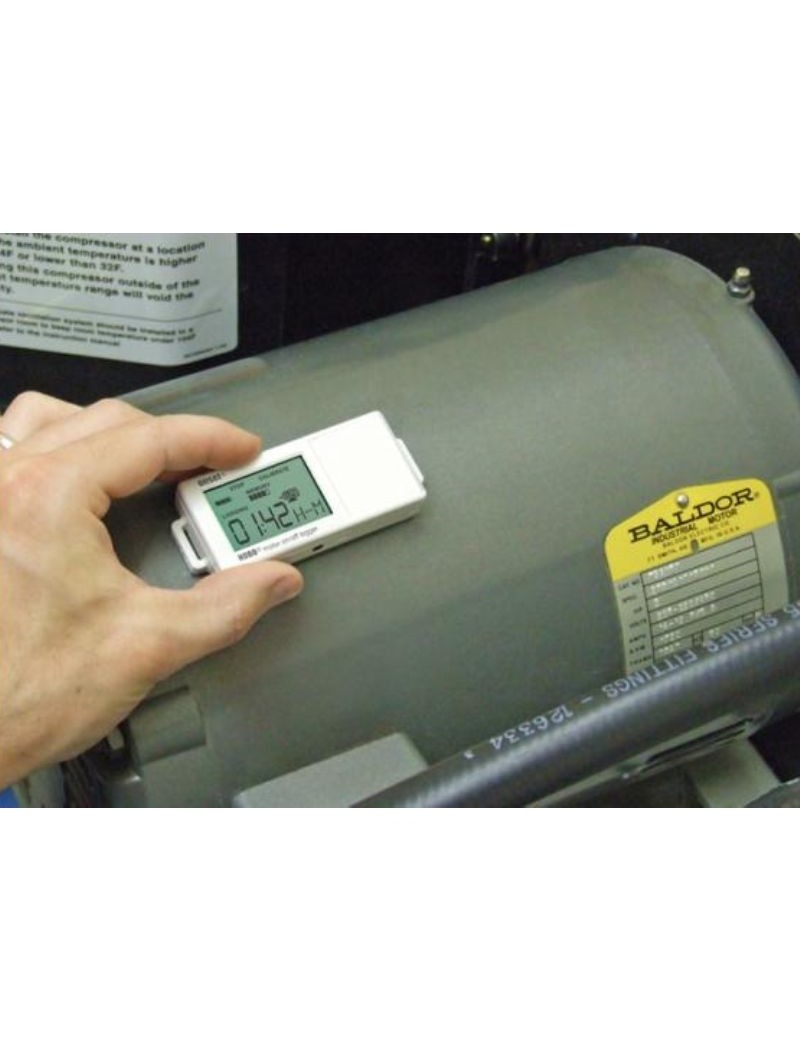

The HOBO Motor On/Off data recorder records the engine running and stopping conditions in a CA magnetic field with its internal sensor or mechanical contact closures from external detection devices. This data recorder is ideal for monitoring the use and duration of engines, pumps, compressors and other equipment. The HOBO UX90-004 engine on/off data recorder is available in a 128-K standard memory model (UX90-004) capable of 84,650 measurements and an extended memory version of 512 KB (UX90-004M) capable of over 346,795 measurements.

Features highlighted

• Both internal motor sensors offer better sensitivity for well protected engines
• External input to measure mechanical contact closures when signal strength is low
• Self-calibration of ON and OFF thresholds ensures reliable readings
• Compatible with HOBOware and HOBOware Pro software for configuration, graphical representation and recorder analysis
• This data recorder works in an indoor environment.
• The UX90-004M data recorder supports the following measures: engine on/off, operating time and open/closed state

Internal engine sensor

Magnetic field threshold AC: > 40 mGauss at 60 Hz

External entry

External contact input: Closing the semiconductor electronic switch or logical voltage output
Variation: 0 to 3 V DC (USB powered), 0 to 2.5 V DC (battery powered)
Maximum state and frequency of execution1Hz
Closing the semiconductor switch: Low entrance: 500 K
Low internal Traction: 100 K
Entry impedance: Static switch closure : 100 K

Recorder

Resolutionpulse: 1 pulse, running time: 1 second, state and event: 1 state or event
Time accuracy±1 minute per month at 25°C (77°F)
Battery life: 1 year, typical with recording intervals greater than 1 minute and normally open contacts

Memory
UX90-004: 128 Kb (84,650 measurements, maximum)
UX90-004M: 512 KB (346,795 measurements, maximum)

Download type: USB 2.0 interface
Download time10 seconds for 128 Kb; 30 seconds for 512 KB

Operating range of the recorder
Registration:-20° to 70°C (-4° to 158°F); 0 to 95 % HR (without condensation)
Launch/reading: 0° to 50°C (32° to 122°F) according to the USB specification

ACL: the LCD screen is visible from 0° to 50°C (32° to 122°F); lCD screen can react slowly or become empty at temperatures outside this range
Size: 3,66 x 8,48 x 1,52 cm (1,44 x 3,34 x 0,6 inches)
Weight: 30 g (1.06 ounces)
Environmental rating: IP50

 - The CE marking identifies this product as complying with all relevant EU Directives
