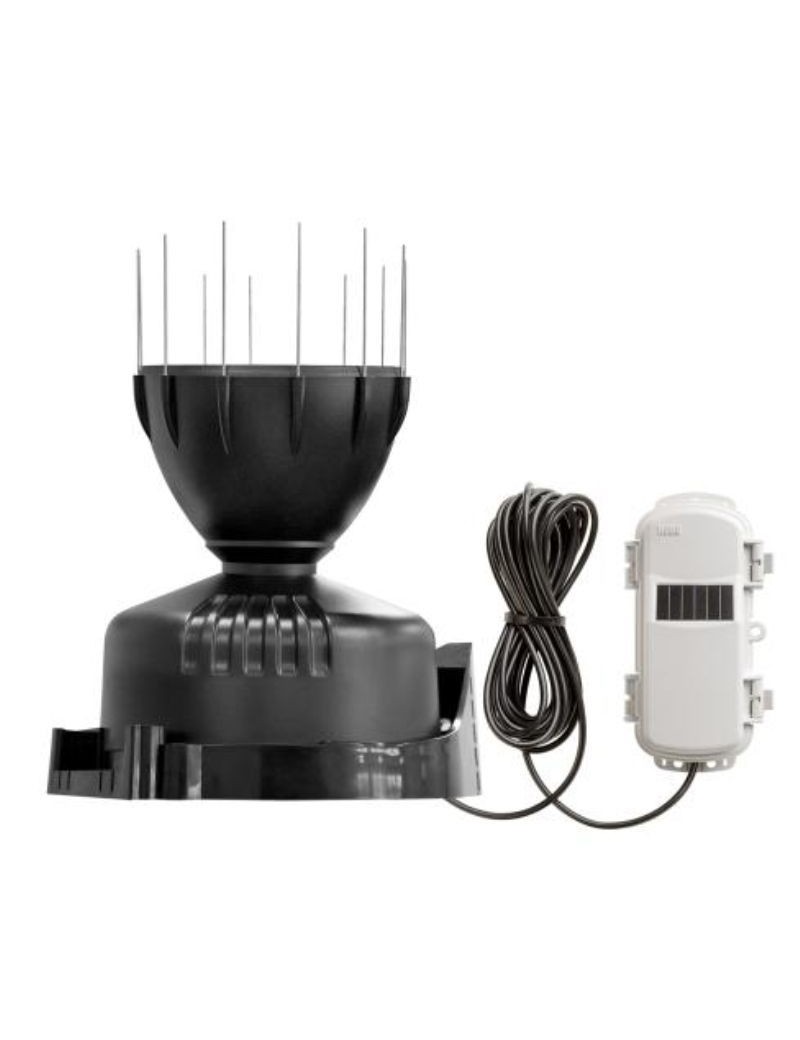

DAVIS Pluviometer for HOBOnet network in inches RXW-RGE-868

The rain sensor HOBOnet records the precipitation by increments of 0.01 inch. Sensors wireless HOBOnet communicates the data directly to the HOBO RX3000 or to hOBO MicroRX station, or transmit data via other wireless sensors to the central station. They are preconfigured and ready to deploy, and data are accessible via HOBOlink, the innovative cloud software platform of'Onset.

Technical characteristics of the sensor:

- 0.01 inch resolution
- Bird tips
- Anti-removal screen that locks in place
- Designed to meet World Meteorological Organization (WMO) guidelines
- Wireless features
- 900 MHz wireless mesh self-healing technology
- Wireless range from 450 to 600 metres (1,500 to 2,000 feet) and up to five jumps
- Up to 50 wireless sensors or 336 data channels per HOBO RX station
- Just press a button to join the HOBOnet wireless network
- Onboard memory to avoid data loss
- Powered by rechargeable AA batteries and integrated solar panel

Complementary Features:

- Measuring range: 0 to 10.2 cm (0 to 4 in.) per hour, maximum 4,000 points per recording interval
- Accuracy ± 4.0 %, ± 1 precipitation between 0.2 and 50.0 mm (0.01 to 2.0 in.) per hour; ± 5.0%, ± 1 precipitation between 50.0 and 100.0 mm (2.0 and 4.0 in.) per hour
- Resolution: 0.01 inch (RXW-RGE-xxx) or 0.2 mm (RXW-RGF-xxx)
- Wireless Word
- Operating temperature range Mote:
-25° to 60°C (-13° to 140°F) with rechargeable batteries
-40° to 70°C (-40° to 158°F) with lithium batteries
- Radio power: 12.6 mW (+11 dBm) not adjustable
- Transmission range:
Reliable connection to a 457.2 m (1,500 ft) sight line at a height of 1.8 m (6 ft)
Reliable connection to a 609.6 m (2 000 ft) sight line at a height of 3 m (10 ft)
- Wireless data standard: IEEE 802.15.4
- Radio operating frequencies RXW-RGE-868 and RXW-RGF-868: 866.5 MHz
- Modulation employed: OQPSK (decalation of modulation by quadrature phase displacement)
- Data flow rate: up to 250 kbps, not adjustable
- Service cycle: - Maximum number of points: up to 50 wireless sensors or 336 data channels per HOBO RX station
- Log rate: 1 minute at 6 p.m
- Number of data channels: 2
- Type of battery:
2 NiMH rechargeable AA 1.2 V, powered by an integrated solar panel
2 AA 1.5 V lithium batteries for operating conditions from -40° to 70°C (-40° to 158°F)
- Battery life:
With NiMH batteries: 3 to 5 years typical when used in a temperature range of -20° to 40°C (-4°F to 104°F) and positioned towards the sun (see Deployment and mounting), operation outside this range will reduce battery life
With lithium batteries: 1 year, typical use
- Memory 16 MB
- Dimensions:
Sensor: 16.5 cm of opening diameter (6.5 inches) x 24 cm (9.5 inches) of height; Collection area of 214 cm2 (33.2"2)
Cable length: 2 m (6.6 ft)

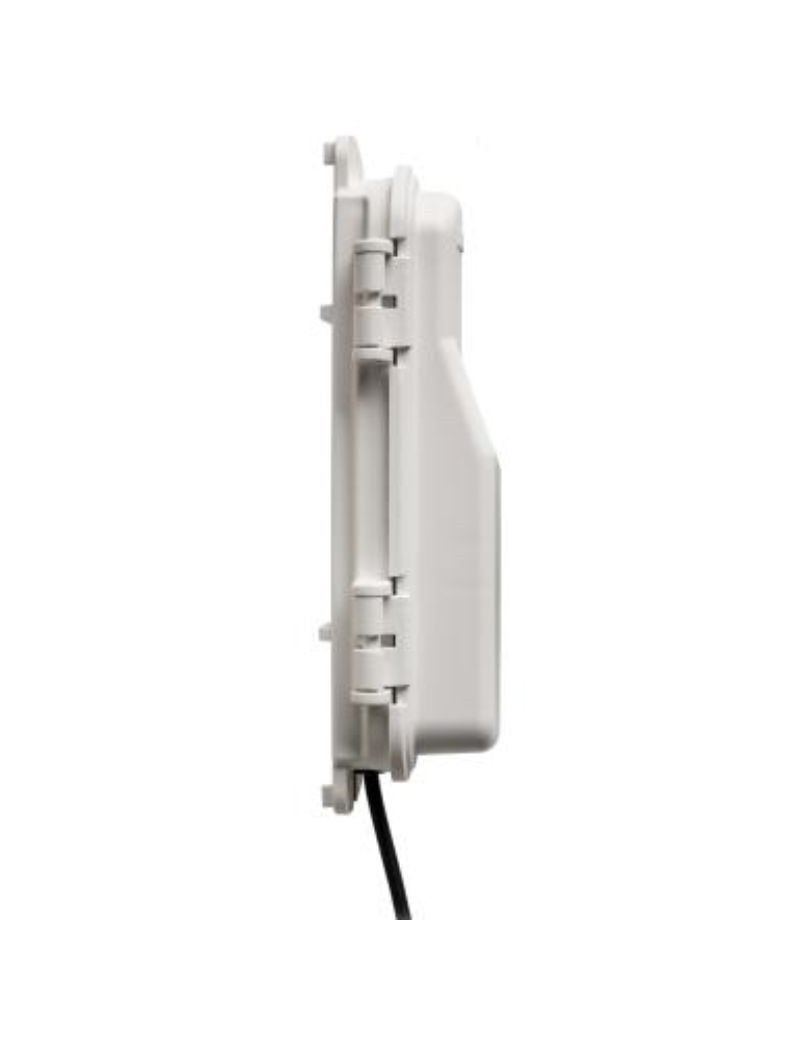

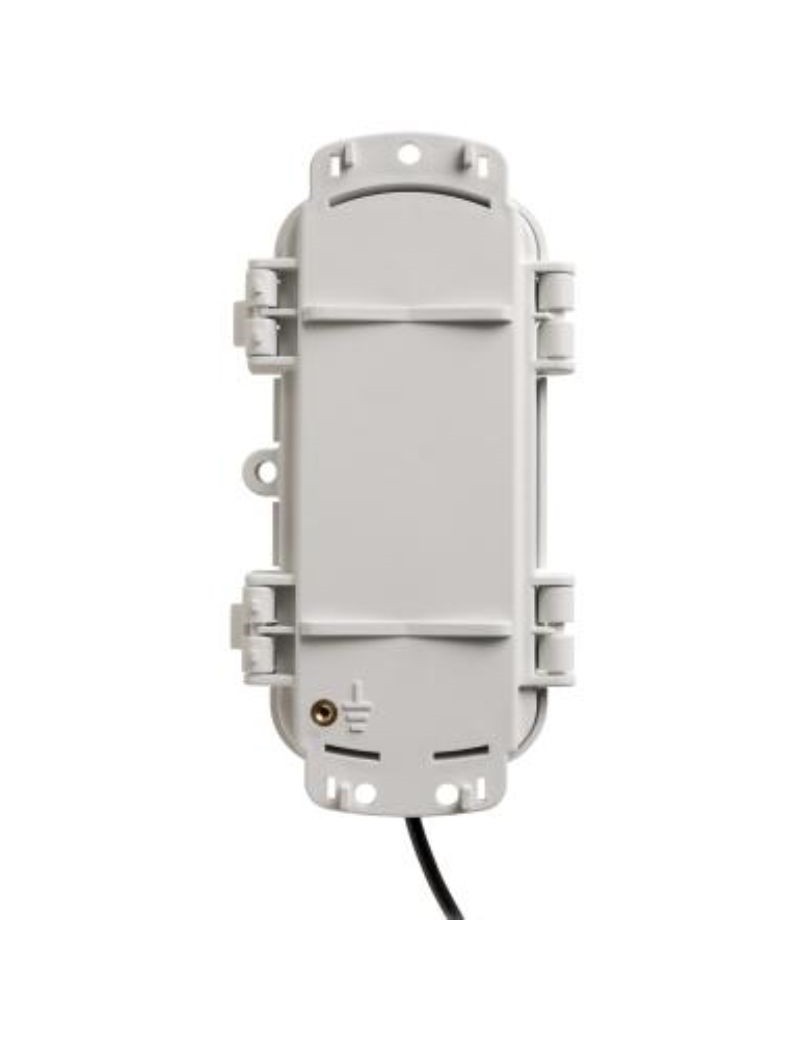

Mote: 16,2 x 8,59 x 4,14 cm (6,38 x 3,38 x 1,63 inches)
- Weight:
Sensor and cable : 1.2 kg (2.7 lb)
Charge : 223 g (7.87 oz)
- Materials :
Sensor : ABS plastic housing stabilized with UV; tilting spoon mechanism with swivel magnetic blade switch on metal shaft

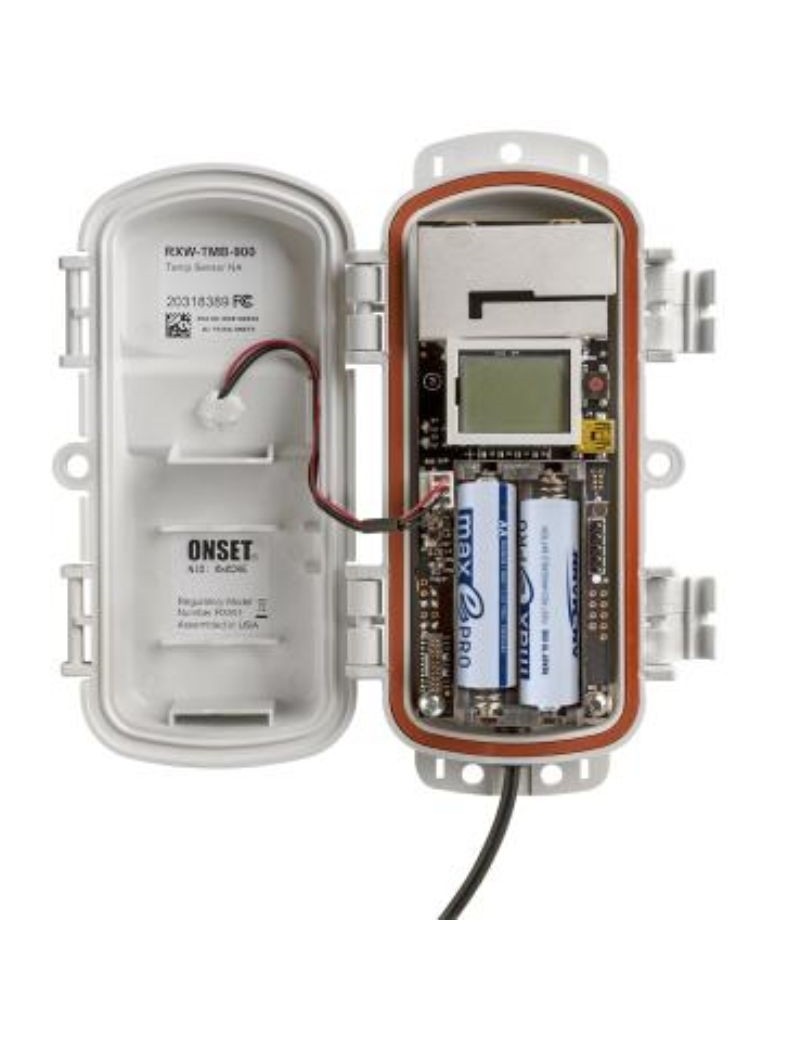

Mote: PPCBT, silicone rubber seal
- Environmental assessment sensor Waterproof moto: IP67, NEMA 6
