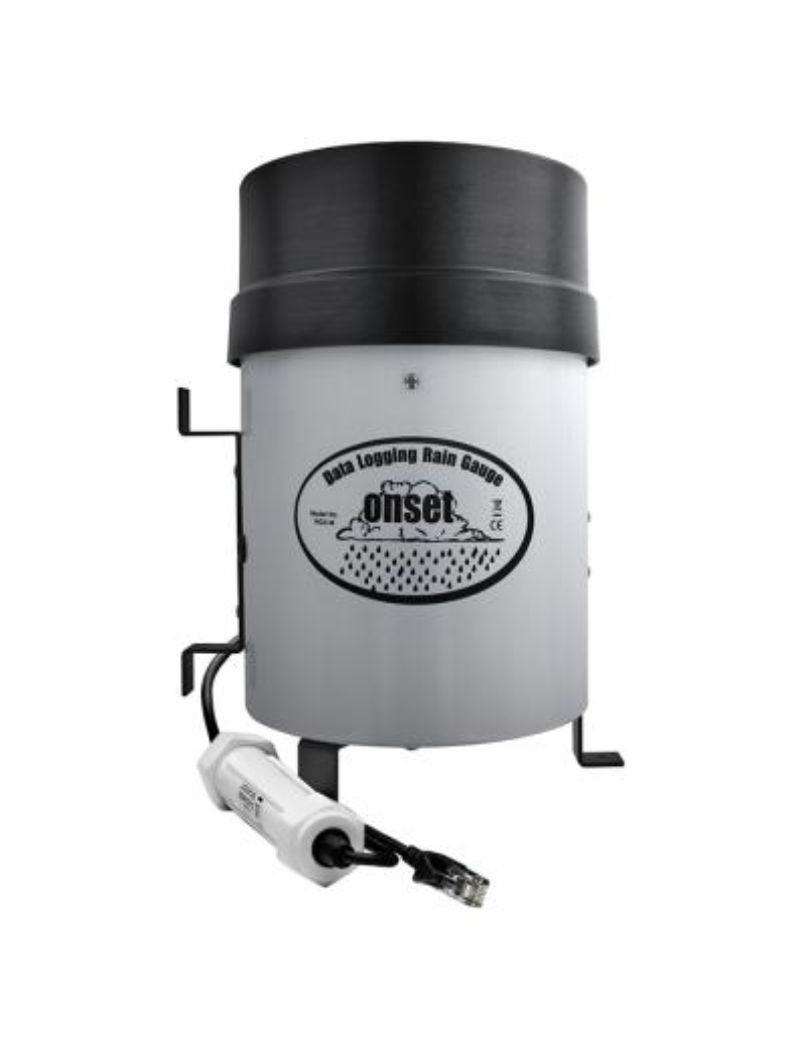

Smart rain gauge 0.01" resolution S-RGA-M002

The rain gauge smart S-RGA-M002 measures precipitation with intensity up to five inches per hour with one 0.01 inch resolution and one 1 % accuracy for precipitation rates up to 1"/hour.
The mechanism of the'tipping is mounted on a stainless steel shaft with brass bearings.
This model includes a 2 m cable and requires a data recorder.

It is also available in a wireless model to use with the HOBOnet field monitoring system.

Technical specifications:

- Measuring precipitation rates up to five inches per hour
- 0.01 inch resolution
- Maximum of 4000 advices per interval
- 2m cable

Pluviometer Features:

- Measuring range: 0 to 10 cm or 0 to 5 inches per hour, maximum 4000 tips per interval
- Operating range: 0° to 50°C (32° to 122°F)
- Survival: -40° to 75°C (-40° to +167°)
- Mechanism: tilting tip, stainless steel shaft with brass bearings
- Resolution: models 0.2 mm (S-RGB) and 0.01 inch (S-RGA)
- Calibration: Requires annual calibration; can be calibrated in the field by the user or returned to the factory
- Calibration accuracy: ±1.0% up to 20 mm or 1" per hour
- Case: aluminum housing and collector
- Dimensions: 22.8 cm height x 15.4 cm diameter (9" height x 6" diameter), 154 mm reception orifice (6.06")
- Approximate weight: 1 kg (2 pounds)
- Cable lengths: 2 meters (6.5 feet)

Note:

Comes with side support for mounting on pole or tripod and feet for surface mounting.
In case of separate mounting of the main tripod, order with a 6 m cable and an additional 1.5 m mast. In the event of mounting on a main tripod, order with the kit of haubans.
