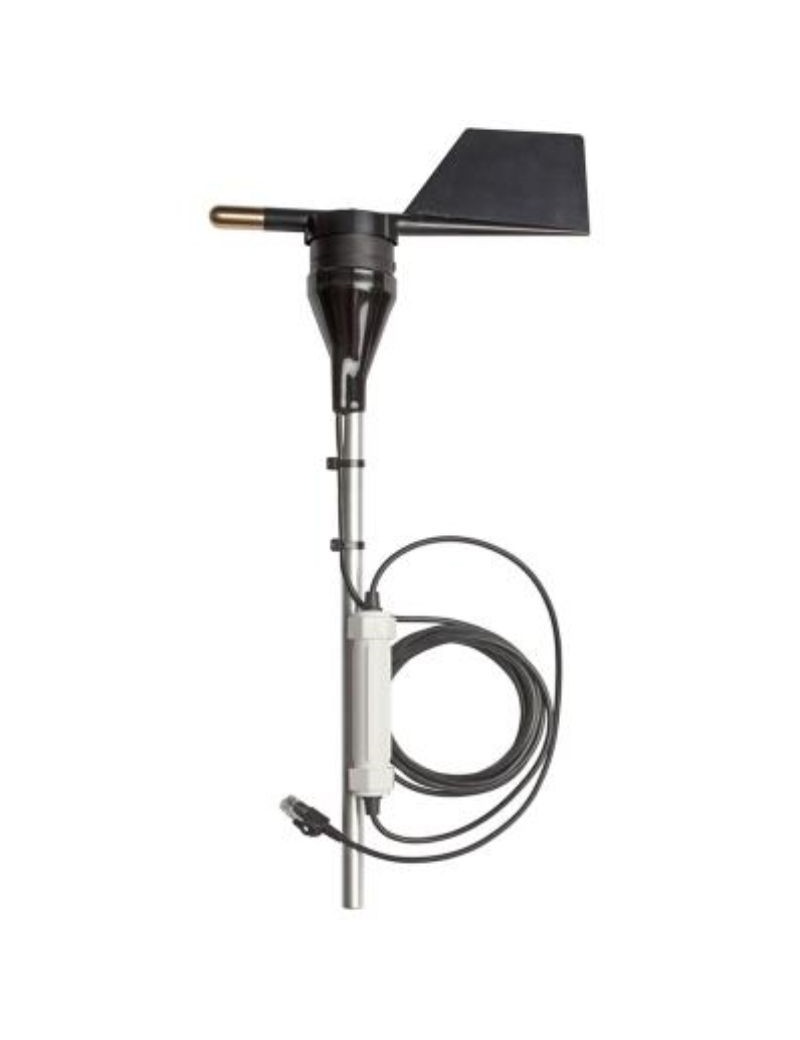

Smart wind direction sensor S-WDA-M003
Write your review
The smart wind direction sensor S-WDA-M003 is one sensor de high quality, easy to use and offering one precise measurement of the average wind direction.
The sensor is sustainable, equipped with a fake holder for the'anti-icing, of ball bearings en stainless steel and one antistatic housing, guaranteeing long life.
He calculates a unit vector mean wind direction and provides data in degrees.

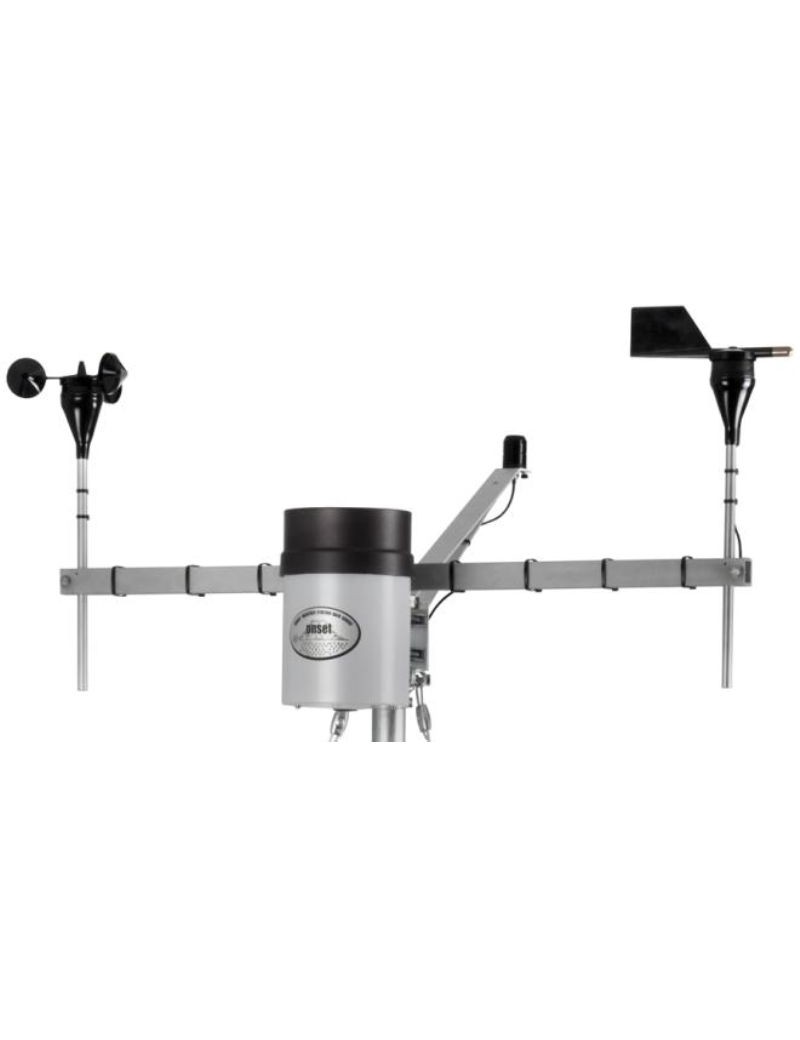

For assembly, a complete transverse arm M-CAA or m-CAB transverse half-arm is required.
In addition, it can be used with the monitoring system field HOBOnet for a wireless version.
€449.00
Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
A sensor plug-and-play de quality research which provides the average wind direction for the measurement interval.
This girouette very sustainable a fake holder for'anti-icing.
Its armoured ball bearings en stainless steel and his antistatic housing offer long life at sensor.
The sensor calculates a unit vector average of the wind direction, providing data directly in degrees.
Note: one complete transverse arm M-CAA or m-CAB transverse half-arm is required for the mounting.
Interested in sensors wireless ? The wireless wind speed and direction sensor can be used with the monitoring system field HOBOnet.
Technical specifications:
- Search quality plug-and-play sensor to measure and record wind direction data
- The very durable wheelbarrow has an anti-icing rack
- Armoured stainless steel ball bearings
Wind direction sensor features:
- Measuring range: 0 to 355 degrees, dead band of 5 degrees
- Survival at maximum wind speed : 67 m/s (150 mph)
- Accuracy: ± 5 degrees
- Resolution: 1.4 degrees
- Starting threshold: 1.0 m/s (2.2 mph)
- Definition of measurement: the unit vector components of the wind direction are accumulated every three seconds during the recording interval.
The average direction is calculated from the average of these.
- Operating temperature range: -40°C to +70°C (-40°F to +158°F)
- Environmental assessment: waterproofing
- Life: 4 to 6 years typical according to environmental conditions
- Housing: injection moulded housing and pallet, antistatic base, leadless silicon bronze nose and aluminum mounting rod.
- Type of bearing: two armoured stainless steel ball bearings
- Steering radius: approximately 13.5 cm (5.25 inches)
- Dimensions: 46 x 20 cm18 x 8,5 in.) with 1.27 cm (0.5 in.) diameter mounting rod, 2.5 mm (0.1 in.)
- Weight: about 370 g (13 ounces)
- Number of data channels: 1
- Option for calculating the average of measurements: automatic calculation of the average (see Definition of measurement)
- Cable length available: 3.5 m (11.5 feet)
- Smart sensor network cable length: 0.5 m (1.6 ft)
- EC: the CE marking identifies this product as complying with all relevant EU Directives
S-WDA-M003
