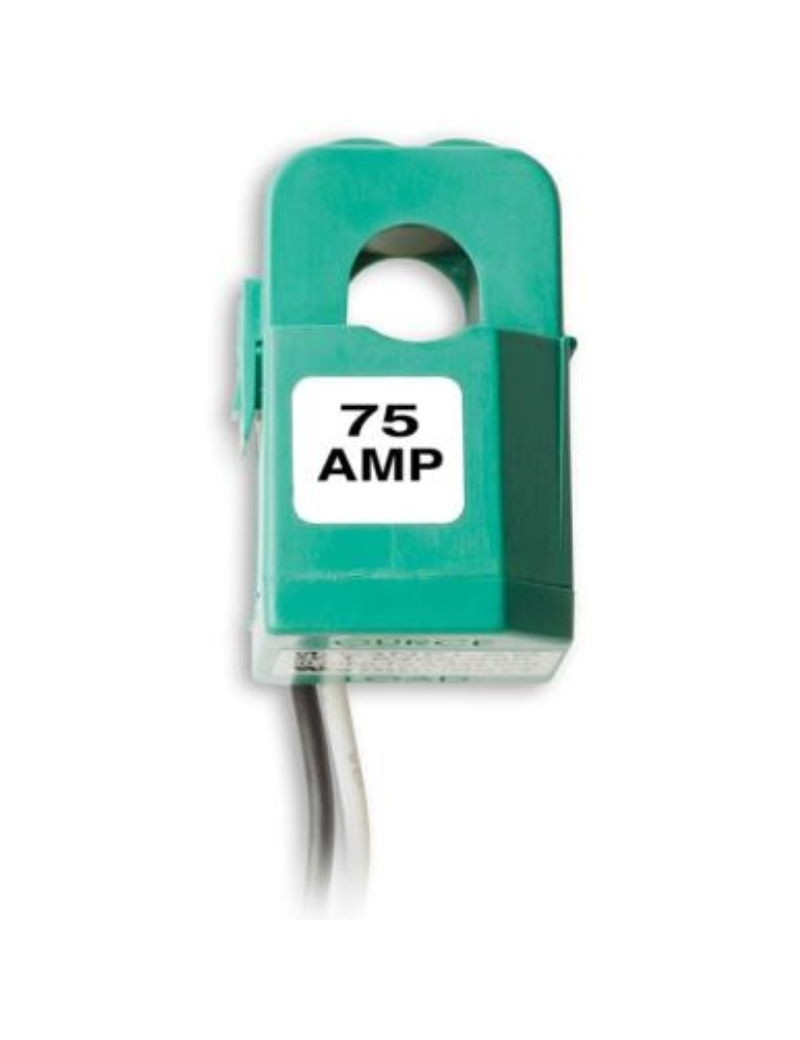

Mini Current Sensor 75A T-MAG-0400-75
Write your review
The mini AC current sensor (CT) with split core T-MAG-0400-75 de 75 amperes is an essential component to the precise extent of the'amperage en ac.
It is specially designed for use with hOBO data recorders, via the flexSmart TRMS module, as well as kWh transducers such as WattNodes.
Thanks to her innovative design and its advanced technical characteristics sensor allows for precise measurement of the current, whether in the form of'sinusoid waves or non-sinusoidal, for a wide variety of'electrical equipment.
It is designed to measure currents up to 400 A with one ± 0.75% accuracy, it is ideal to measure energy consumption and performance of electrical equipment.
€55.00
Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
The 75-amp split-core AC current transducer (CT) is an essential component in the accurate measurement of AC amperage.
It is specially designed for use with HOBO data loggers, via the FlexSmart TRMS module, as well as with kWh transducers such as WattNodes.
Thanks to its innovative design and advanced technical features, this transducer enables precise measurement of bothsinusoidal and non-sinusoidal currents for a wide variety of electrical equipment.
Extended measurement range: This current transformer is capable of measuring current ratings from 7.5 to 75 AMP, making it versatile for use in a variety of electrical applications.
Proportional output: The transducer produces an AC output of 0.333 Volt AC when operating at its rated current.
This output is directly proportional to the current flow being measured, guaranteeing an accurate reading.
Outstanding accuracy: It offers outstanding linearity accuracy, with a margin of error of just ± 1%.
What's more, its accuracy is maintained over a wide current range from 10% to 130% of rated current, making it a reliable tool for a wide variety of electrical loads.
Easy installation: The CT is designed with a split core, enabling quick and easy installation without having to interrupt the electrical circuit.
It can be mounted around a current-carrying wire in just a few steps, minimizing downtime.
Quality cables: It comes with 8 ft (2.44 m) of 24 AWG twisted-pair wire, ensuring stable signal transmission and durability.
Convenient opening: the CT's opening measures just 0.40 inches(10.15 mm), making it compatible with a variety of conductor sizes.
Technical specifications:
- Rated input from 7.5 to 75 AMP
- Output 0.333 Volt AC at rated current
- Linearity accuracy ± 1%
- Accuracy from 10% to 130% of rated current
- Split-core design for fast, easy installation
- 8 ft (2.44 m) 24 AWG twisted-pair cables
- 0.40 in (10.15 mm) aperture
Sensor features :
- Rated input from 7.5 to 75 AMP
- Output 0.333 Volt AC at rated current
- Operates from 50 Hz to 400 Hz
- UL recognized, CE and RoHS compliant
- Linearity accuracy ± 1%
- 8 ft. twisted-pair cable
- Accuracy from 10% to 130% of rated current
- Self-locking mechanism guaranteed for 500 closures
- Width: 1.00 inches
- Height: 1.56 inches
- Thickness: 1.05 inches
- Window: 0.40 inches
T-MAG-0400-75
1000 Items
