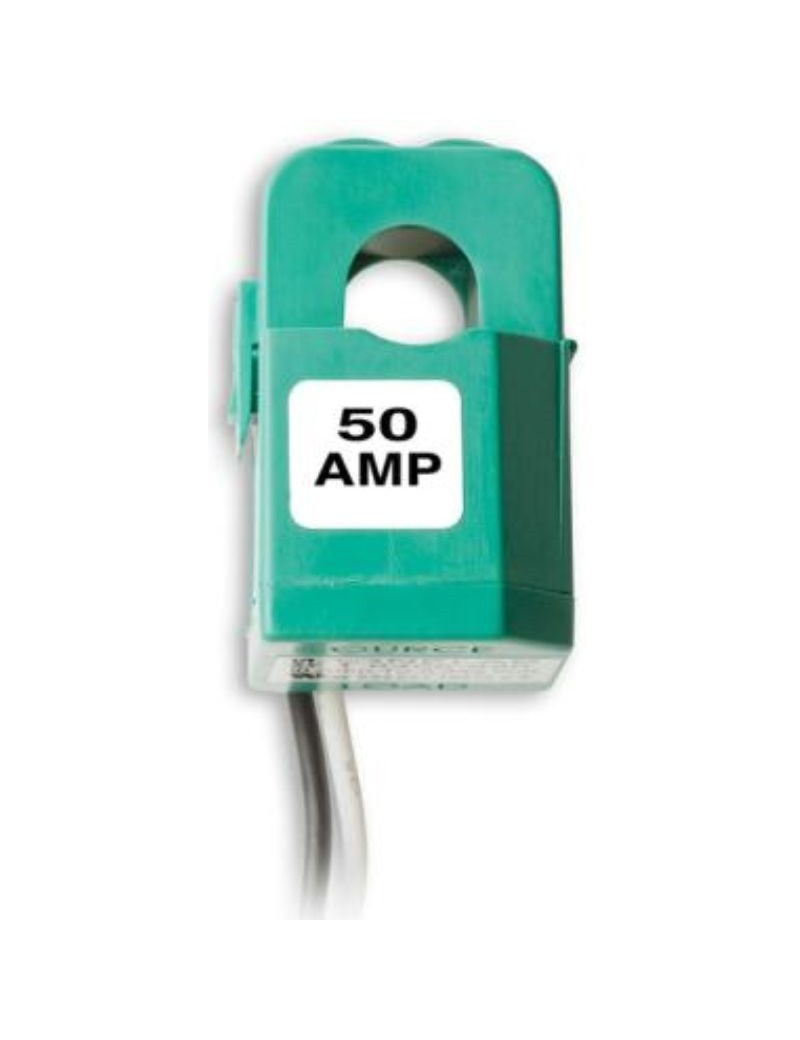

Mini 50A T-MAG-0400-50 Current Sensor
Mini 50A T-MAG-0400-50 Current Sensor

Mini 50A T-MAG-0400-50 Current Sensor

The current sensor T-MAG-0400-50 is a mini sensor de ac to split kernel with one measuring range nominal of 50 Amperes and one voltage output of 333 mV.
It is designed to measure the aC/DC current in industrial applications and can be safely installed around a driver without interrupting the circuit.
The sensor is used with the data recorders Hobo via the flexSmart TRMS module and with kWh transducers (WattNodes) for the True RMS measurement of forms of'sinusoid waves and non-sinusoidal.
The result is a precise measurement of current for many types of'electrical equipment.

Onset devient LI-COR
T-MAG-0400-50
1000 Items
€55.00
Quantity
Add to Wishlist
Add to Compare

Onset,  Hobo,  sensor,  industrial applications,  data recorders,  current sensor,  50 Amperes,  mini sensor,  ac,  kWh transducers,  WattNodes,  sinusoid waves,  non-sine waves,  Linearity accuracy,  T-MAG-0400-50,  voltage output of 333 mV,  aC/DC current,  Nominal entry from 5 to 50 MPA,  50 Hz to 400 Hz
Shop,  Matching products,  By applications,  By product type,  By environment,  By measures,  Energy performance,  Energy,  HVAC/R,  Internal environment,  Inside,  Current AC,  Ampere,  Sensors
  Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
  Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
  Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
Description

A small one current sensor CA (Current Transformer) with split core de 50 Amperes mounted around a carrier wire for measuring current'amperage alternative current.
The sensor provides a voltage outlet de 0.333 Volt proportional to the current flow and is used with the data recorders HOBO via the flexSmart TRMS module and with kWh transducers (WattNodes) for the True RMS measurement of forms of'sinusoidal waves and non-sinusoidal.
The result is a precise measurement current for many types of powerelectrical equipment.

Technical specifications:

- Nominal entry from 5 to 50 MPA
- Output 0.333 Volt AC rated current
- Linearity accuracy ± 1 per cent
- Accuracy from 10% to 130% of rated current
- Split core design for quick and easy installation
- 8 ft (2.44 m) twisted pair cables 24 AWG
- 0.40" opening (10.15 mm)

Sensor Features:

- Nominal entry from 5 to 50 MPA
- Output 0.333 Volt AC rated current
- Works from 50 Hz to 400 Hz
- Recognized UL, CE and RoHS compliant
- Linearity accuracy ± 1 per cent
- 8 foot twisted pair cable
- Accuracy from 10% to 130% of rated current
- Self-locking mechanism guaranteed for 500 closures
- Width: 1.00 inches
- Height: 1.56 inches
- Thickness: 1.05 inches
- Window: 0.40 inches

Product Details
T-MAG-0400-50
1000 Items
Attachments

14255-D

Magnelab Mini AC Current Transformer (CT) Connection Instructions

Download (386.45KB)
