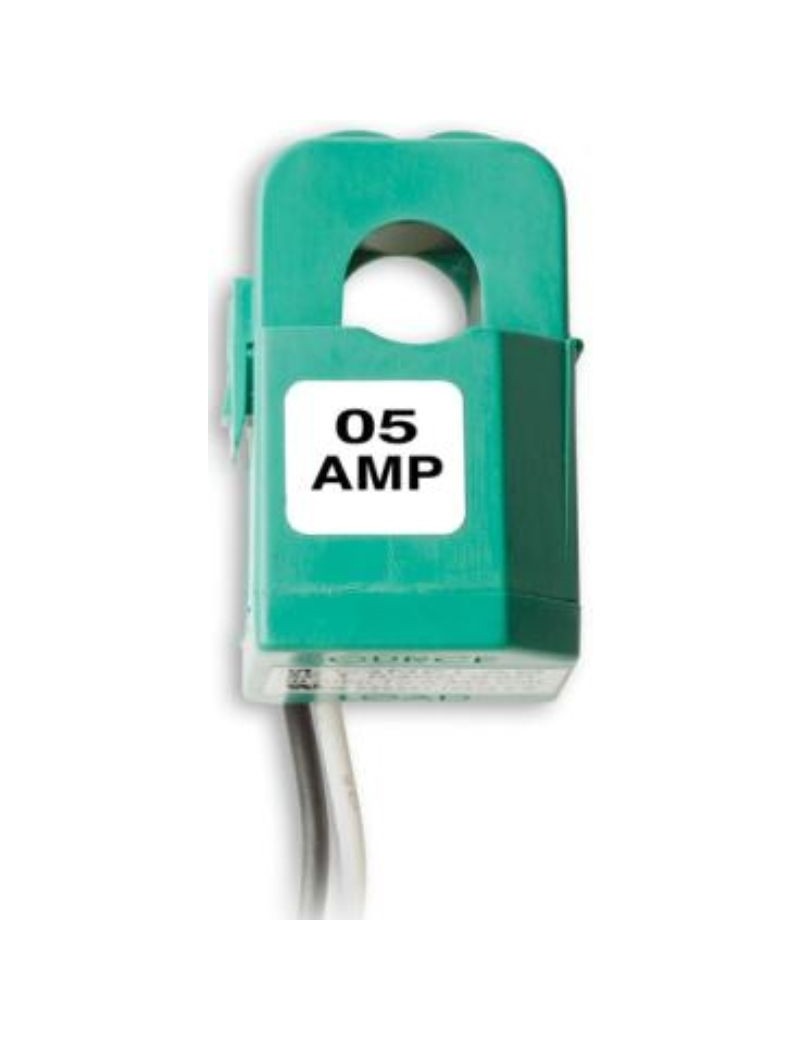

Mini 5A T-MAG-0400-05 Current Sensor
Mini 5A T-MAG-0400-05 Current Sensor

Mini 5A T-MAG-0400-05 Current Sensor

The mini current sensor T-MAG-0400-05 is a transformer of ac (Current Transformer) to split kernel which measures the'amperage aC output 0.333 volt proportional to the current flow.
It is compatible with the data recorders Hobo via the flexSmart TRMS module and kWh transducers (WattNodes) for the True RMS measurement of forms of'sinusoid waves and non-sinusoidal.
Very good specific and practical, it allows to measure the electric current passing through a wire in a nominal range of 0.5 to 5 amps, thus facilitating the monitoring of the electricity consumption and monitoring of current behaviour in various electrical equipment.

Onset devient LI-COR
T-MAG-0400-05
1000 Items
€55.00
Quantity
Add to Wishlist
Add to Compare

Onset,  Hobo,  specific,  sensor,  data recorders,  current sensor,  current transformer,  mini sensor,  ac,  kWh transducers,  WattNodes,  sinusoid waves,  non-sine waves,  Linearity accuracy,  electricity consumption,  electric current,  fast installation,  5 amperes,  T-MAG-0400-05,  measure amperage,  aC output of 0,  333 volt,  hOBO compatible,  flexSmart TRMS module
Shop,  Matching products,  By applications,  By product type,  By environment,  By measures,  Energy performance,  Energy,  HVAC/R,  Internal environment,  Inside,  Current AC,  Ampere,  Sensors
  Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
  Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
  Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
Description

The mini current sensor T-MAG-0400-05 is a transformer of ac (Current Transformer) to split kernel designed to measure the'cA amperage accurately. CA amperage measurement: This current transformer is used to measure the AC that passes through a current carrier wire. It is generally used in electrical current monitoring applications to measure power consumption or current behaviour in different electrical equipment.
The current sensor produces an output in ac (CA) of 0.333 Volt which is proportional to the current passing through it.
This output is used to transmit current data to data recorders HOBO via the flexSmart TRMS module and kWh transducers (WattNodes) for True RMS measurement of sinusoidal and non-sinusoidal waveforms.
The sensor can measure currents in a nominal range of 0.5 to 5 amperes.
Sa linearity accuracy is ± 1%, which means it is very accurate in the current conversion en voltage.
It is also accurate in the range of 10% to 130% of nominal current.
Sa split kernel design allows quick and easy installation, you do not need to cut the current carrier wire to install it, just pass the wire through the sensor opening.
It comes with twisted pair cables 8 feet (2.44 m) 24 AWG calibre, making it easier to install and connect to measuring devices.
Son opening with a diameter of 0.40 inches (10.15 mm) determines the maximum size of the current carrier wire that it can accommodate.

Technical specifications:

- Nominal entry from 0.5 to 5 MPA
- Output 0.333 Volt AC rated current
- Linearity accuracy ± 1 per cent
- Accuracy from 10% to 130% of rated current
- Split core design for quick and easy installation
- 8 ft (2.44 m) twisted pair cables 24 AWG
- 0.40" opening (10.15 mm)

Sensor Features:

- Nominal entry from 0.5 to 5 MPA
- Output 0.333 Volt AC rated current
- Works from 50 Hz to 400 Hz
- Recognized UL, CE and RoHS compliant
- Linearity accuracy ± 1 per cent
- 8 foot twisted pair cable
- Accuracy from 10% to 130% of rated current
- Self-locking mechanism guaranteed for 500 closures
- Width: 1.00 inches
- Height: 1.56 inches
- Thickness: 1.05 inches
- Window: 0.40 inches

Product Details
T-MAG-0400-05
1000 Items
Attachments

14255-D

Magnelab Mini AC Current Transformer (CT) Connection Instructions

Download (386.45KB)
