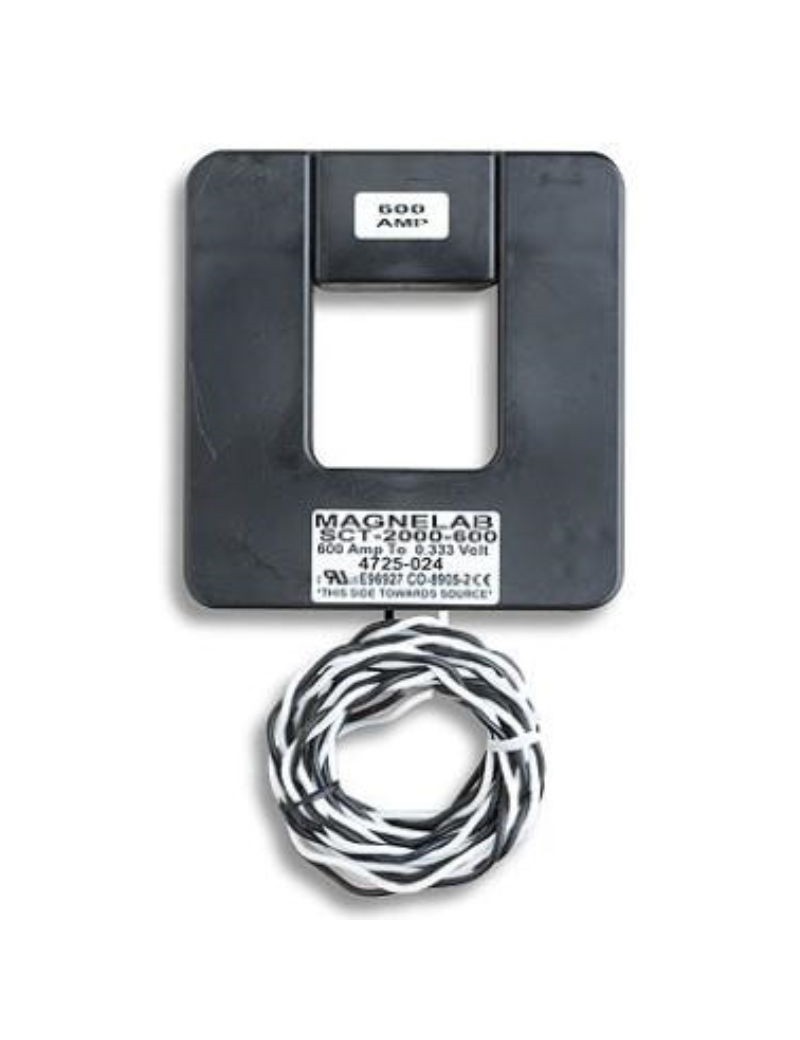

Alternative current sensor 600A T-MAG-SCT-600

The AC current sensor T-MAG-SCT-600 is one transformer de ac (CT) designed to accurately measure AC through a current carrier wire.
This power transformer is used to measure the ac in applications of electrical monitoring.
It allows accurate measurement of current for various types of equipment, including frequency variators and switched power sources.
It is particularly useful for the monitoring and analysis of electrical current in these equipment, which may be essential for the diagnosis, maintenance and management of energy.
The sensor can measure currents in a nominal range from 60 to 600 amps, it means that it is able to measure currents of large amplitude.
It provides a 333 mV output (millivolts) which is proportional to the current passing through it.
This output is used to transmit current data to measurement devices, including the flexSmart TRMS module, which allows True RMS measurement of forms of'sinusoid waves and non-sinusoidal.
The 333 mV output is a linear indication of the measured current.
The sensor has a linearity accuracy of ± 1 per cent, which guarantees precise measurement of the current, even at different current levels.
It is accurate in a range of 10% to 130% of rated current, which means that it can provide reliable measurements even when the current varies in this range.
As it is a sensor with split core, it can be easily installed without having to cut the current carrier wire.
Just pass the wire through the'51 mm opening (2,00 inches) of the transformer to install it.

Cables included: The sensor is supplied with 22 AWG-sized 8-foot (2.44 m) twisted pair cables, which simplifies its installation and connection to the measuring devices.

Technical specifications:

- Nominal entry from 60 to 600 MPA
- Output 0.333 Volt AC rated current
- Linearity accuracy ± 1 per cent
- Accuracy from 10% to 130% of rated current
- Split core design for quick and easy installation
- 8 ft (2.44 m) twisted pair cables 22 AWG
- Opening of 2.00"

Sensor Features:

- Nominal input from 60 A to 600 A
- Output 0.333 Volt AC rated current
- Works from 30 Hz to 1000 Hz
- Phase angle - Linearity accuracy ± 1%
- 8 foot twisted pair cable
- Recognized UL, c(UL), CE and RoHS compliant
- Accuracy from 10% to 130% of rated current
- Custom output and other settings are available
- Width: 4.75 inches
- Height: 5,00 inches
- Thickness: 1.20 inches
- Window: 2.00 inches
