The ac current sensor T-MAG-SCT-100 is a current transformer to ndivided gut designed to measure the ac until 100 amps.
It is used for measure current in many electrical applications, such as air conditioning pumps fans engines and lighting.
Current data collected using this sensor may be used for analyses reports, the energy management or electrical troubleshooting.
It allows to obtain a precise measurement of the electric current running in an electric conductor, usually for the monitoring, the measurement, the energy management or diagnosis electrical systems.

Onset devient LI-COR
T-MAG-SCT-100
1000 Items
€75.00
Quantity
Add to Wishlist
Add to Compare

Onset,  Hobo,  sensor,  monitoring,  current sensor,  ac,  transformer,  with split core,  333 mV,  energy management,  electrical troubleshooting,  nominal range,  100 amps,  T-MAG-SCT-100,  measure current,  diagnostic,  linearity,  opening of 31,  75 mm,  20 to 200 MPA
Shop,  Matching products,  By applications,  By product type,  By environment,  By measures,  Energy performance,  Energy,  HVAC/R,  Internal environment,  Inside,  Current AC,  Ampere,  Sensors
  Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
  Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
  Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
Description

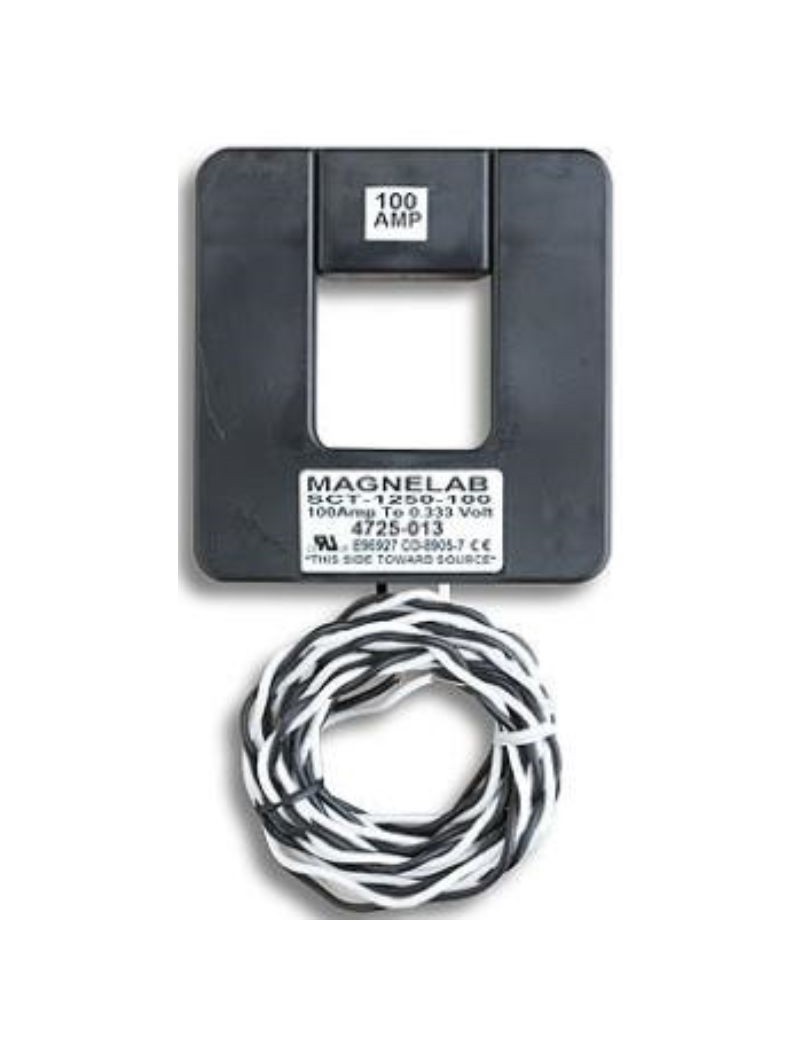

The sensor of alternating current T-MAG-SCT-100 is a current transformer to split kernel designed to measure precisely the ac passing through a current-bearing wire.
This power transformer is used to measure electrical current in electrical applications electrical monitoring.
It allows to obtain a precise measurement electric current running in an electric conductor, usually for the monitoring, the measurement, the energy management or diagnostic of electrical systems.
The sensor can measure currents in a nominal range from 10 to 100 A (ampers) accurately.
The T-MAG-SCT-100 produces a electrical output, generally as a tension, which is proportional to the current passing through it, the output is 333 mV (millivolts) per ampere (A), it thus provides a voltage value proportional to the measured current.
The transformer has a linearity accuracy of ± 1 %, thus guaranteeing a precise measurement power, even at different current levels.
It is accurate within a range of 10% to 130% of the nominal current, which means that it can provide reliable measures even when the current varies in this range.
As it is a split kernel transformer, it can be installed without cutting or disconnecting the current carrier wire, just pass the wire through the'31.75 mm opening (1.25'') of the sensor for installation.

Cables included: The ac current sensor comes with 8-foot (2.44 m) 22 AWG twisted pair cables, which simplifies its installation and its connection to measuring devices.

Technical specifications:

- Nominal entry from 20 to 200 MPA
- Output 0.333 Volt AC rated current
- Linearity accuracy ± 1 per cent
- Accuracy from 10% to 130% of rated current
- Split core design for quick and easy installation
- 8 ft (2.44 m) twisted pair cables 22 AWG
- Opening of 1.25"

Sensor Features:

- Nominal entry from 20 A to 200 A
- Output 0.333 Volt AC rated current
- Works from 30 Hz to 1000 Hz
- Phase angle - Linearity accuracy ± 1%
- 8 foot twisted pair cable
- Recognized UL, c(UL), CE and RoHS compliant
- Accuracy from 10% to 130% of rated current
- Custom output and other settings are available
- Width: 3.25 inches
- Height: 3.35 inches
- Thickness: 1.00 inches
- Window: 1.25 inches

Product Details
T-MAG-SCT-100
1000 Items
Attachments

10270-J

Magnelab AC Current Transformer (CT) Connection Instructions

Download (332.17KB)
