The ac current sensor T-MAG-SCT-200 is a transformer with split core for measuring ac.
It can measure currents up to 200 amperes and produces a proportional output of 333 mV measured to measure and monitor electric current in various equipment such as energy distribution panels lighting systems electric motors heating equipment and air conditioning.
The data of current collected using this sensor may be used for analyses reports, the energy management or electrical troubleshooting.

Onset devient LI-COR
T-MAG-SCT-200
1000 Items
€75.00
Quantity
Add to Wishlist
Add to Compare

Onset,  Hobo,  sensor,  analysis,  precise measurement,  current sensor,  ac,  electric current,  fast installation,  transformer,  200 amperes,  with split core,  333 mV,  energy management,  electrical troubleshooting,  nominal range,  T-MAG-SCT-200,  electric motors,  heating,  air conditioning,  20 to 200 amperes
Shop,  Matching products,  By applications,  By product type,  By environment,  By measures,  Energy performance,  Energy,  HVAC/R,  Internal environment,  Inside,  Current AC,  Ampere,  Sensors
  Guaranteed security for your online purchases Your purchases are protected by SSL encryption, guaranteeing maximum privacy and security.
  Fast and reliable delivery We offer fast and secure delivery options, followed to your door.
  Easy Returns Policy Return your products easily within 30 days, fast refund guaranteed.
Description

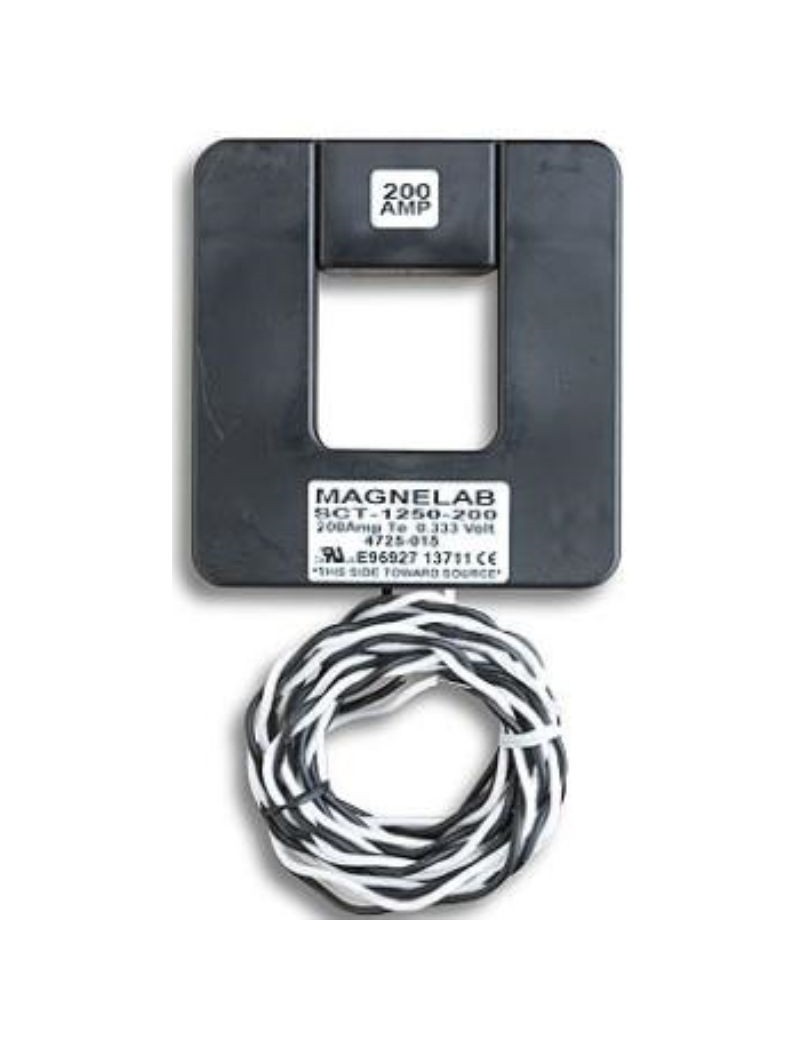

The AC current sensor T-MAG-SCT-200 is a transformer with split core that mounts around a current carrier wire to measure the'amperage until 200 amperes.
It provides a precise measurement power for many types of equipment, including frequency variators and switched power sources.
The sensor provides an output of 333 mV proportional to current and is used with the flexSmart TRMS module for True RMS measurement of forms of'sinusoid waves and non-sinusoidal.
It is particularly useful for monitoring and the'analysis of the electric current in such equipment, which may be essential for the diagnosis, the maintenance and energy management.
The sensor can measure currents in a nominal range from 20 to 200 amperes, it means that it is able to measure currents of large amplitude.
It provides a 333 mV output (millivolts) which is proportional to the current passing through it, the output of 333 mV is a linear indication measured current.
The sensor has a linearity accuracy of ± 1 per cent, which guarantees precise measurement of the current, even at different current levels.
It is accurate in a range of 10% to 130% of rated current, which means that it can provide reliable measurements even when the current varies in this range.
As it is a sensor with split core, it can be easily installed without having to cut the current carrier wire.
Just pass the wire through the'32 mm opening (1.25pouces) the transformer to install it.

Cables included: The sensor is supplied with 22 AWG-sized 8-foot (2.44 m) twisted pair cables, which simplifies its installation and connection to the measuring devices.


Technical specifications:

- Nominal entry from 20 to 200 MPA
- Output 0.333 Volt AC rated current
- Linearity accuracy ± 1 per cent
- Accuracy from 10% to 130% of rated current
- Split core design for quick and easy installation
-8 ft (2.44 m) twisted pair cables 22 AWG
- Opening of 1.25"

Sensor Features:

- Nominal entry from 20 A to 200 A
- Output 0.333 Volt AC rated current
- Works from 30 Hz to 1000 Hz
- Phase angle - Linearity accuracy ± 1%
- 8 foot twisted pair cable
- Recognized UL, c(UL), CE and RoHS compliant
- Accuracy from 10% to 130% of rated current
- Custom output and other settings are available
- Width: 3.25 inches
- Height: 3.35 inches
- Thickness: 1.00 inches
- Window: 1.25 inches

Product Details
T-MAG-SCT-200
1000 Items
Attachments

10270-J

Magnelab AC Current Transformer (CT) Connection Instructions

Download (332.17KB)
